Ford Motor Co.

Sun roof is actuated by a two-way electric motor mounted at center of windshield header area. Motor is operated by a two-way control switch on roof panel.

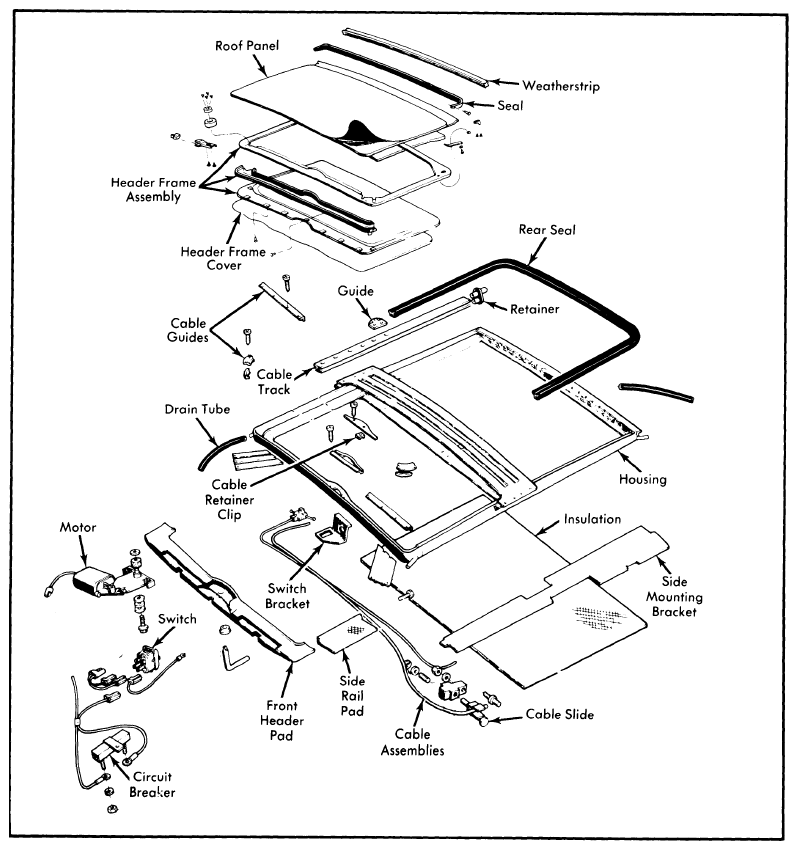

Fig 1: Exploded View Of Sun Roof Assembly Moon Roof Assemblies Similar
G09347166Courtesy of NOT AVAILABLE
