Wiring Diagrams

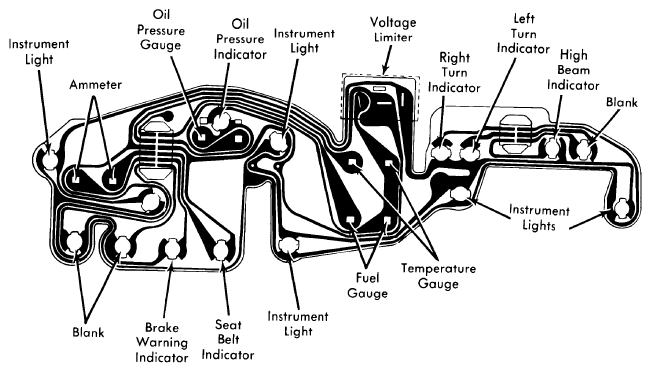

Fig 1: Omni and Horizon Instrument Cluster

Courtesy of CHRYSLER GROUP, LLC

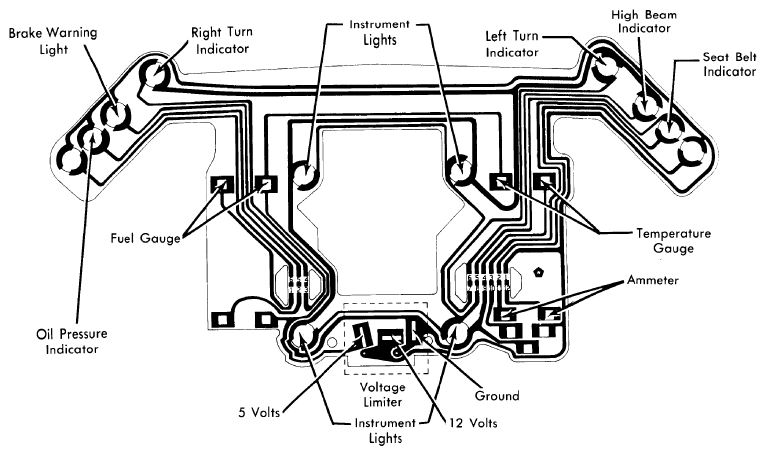

Fig 2: Aspen and Volare Instrument Cluster

Courtesy of CHRYSLER GROUP, LLC

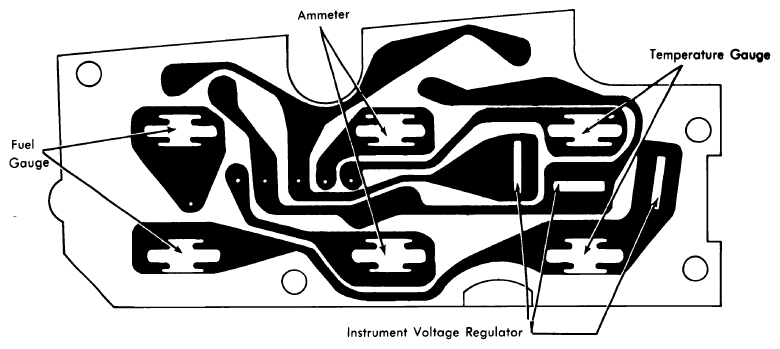

Fig 3: Diplomat and LeBaron Right Side Instrument Cluster

Courtesy of CHRYSLER GROUP, LLC

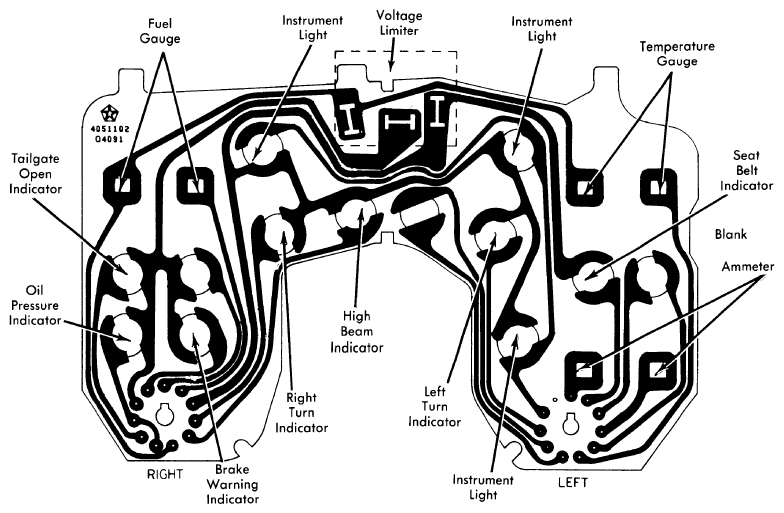

Fig 4: Diplomat and LeBaron Left Side Instrument Cluster

Courtesy of CHRYSLER GROUP, LLC

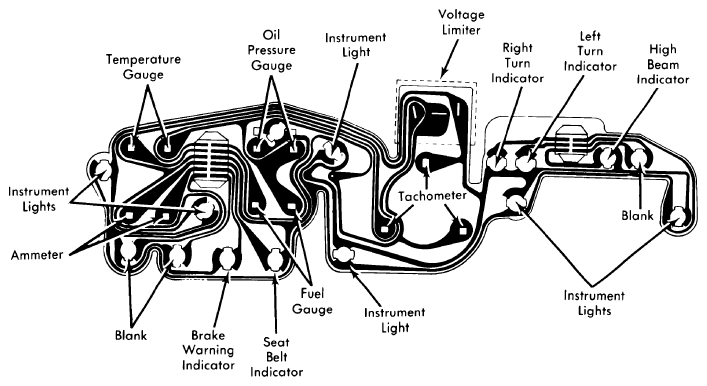

Fig 5: Fury, Monaco, Charger & Cordoba Instrument Cluster without Tachometer

Courtesy of CHRYSLER GROUP, LLC

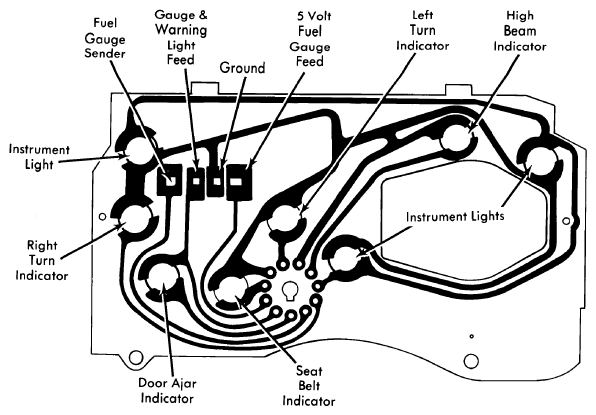

Fig 6: Cordoba and Charger Instrument Cluster with Tachometer

Courtesy of CHRYSLER GROUP, LLC

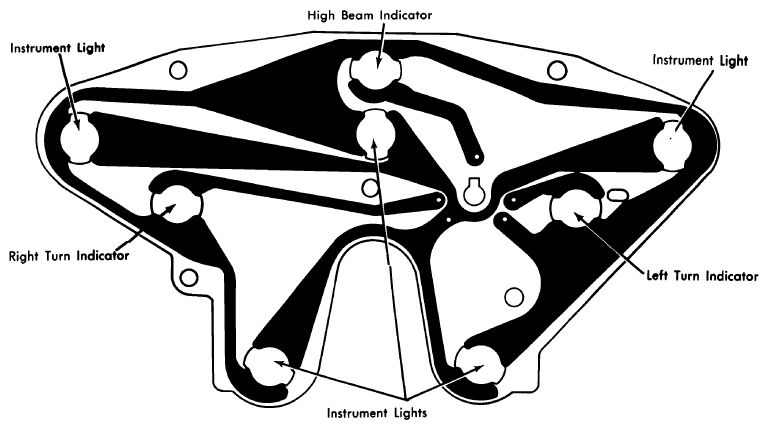

Fig 7: Chrysler Speedometer and Indicator Light Cluster

Courtesy of CHRYSLER GROUP, LLC

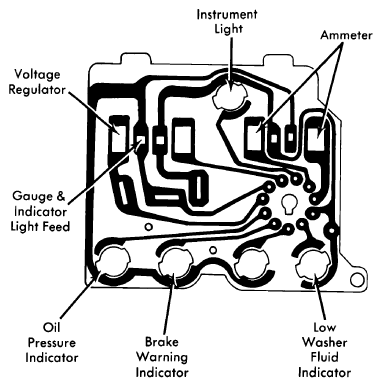

Fig 8: Chrysler Gauge Cluster

Courtesy of CHRYSLER GROUP, LLC
