Instrument Cluster

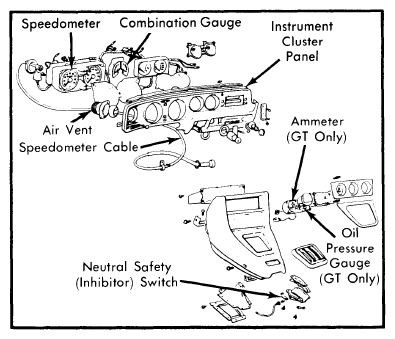

To remove instrument cluster, pull out air intake control knob, ash tray, and heater control knobs. Remove radio tuning knob and 2 ring nuts. Remove 8 attaching screws from around panel and pull panel out far enough to disconnect speedometer, radio, and electrical connections. Remove instrument cluster. To install, reverse removal procedure using caution not to overtighten mounting screws.
