Wiring Diagrams

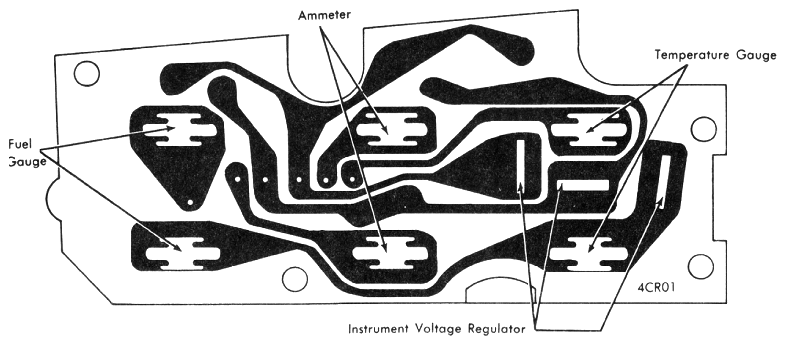

Fig 1: Chrysler (Speedometer Cluster)

Courtesy of CHRYSLER GROUP, LLC

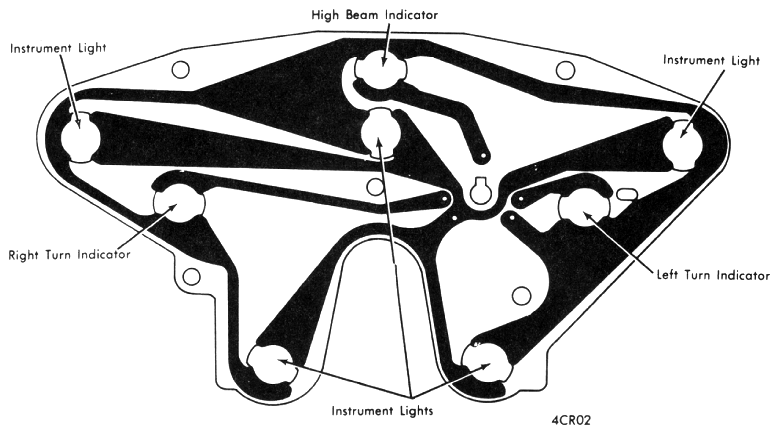

Fig 2: Chrysler (Gauge Cluster)

Courtesy of CHRYSLER GROUP, LLC

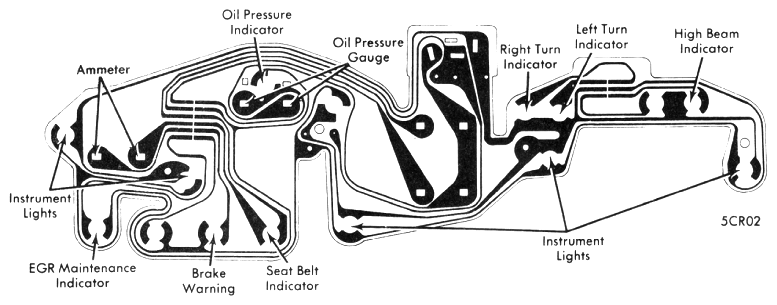

Fig 3: Charger Se, Cordoba, Coronet & Fury (W/Clock Or Tachometer)

Courtesy of CHRYSLER GROUP, LLC

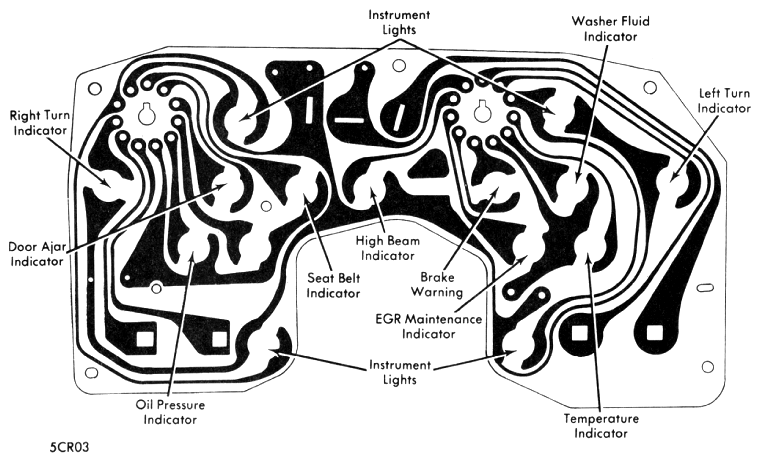

Fig 4: Charger Se, Cordoba, Coronet & Fury (W/O Clock Or Tachometer)

Courtesy of CHRYSLER GROUP, LLC

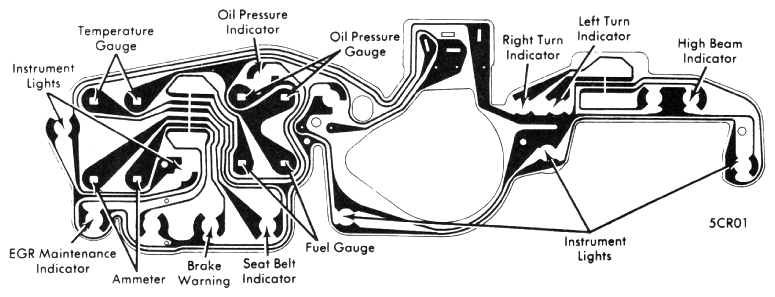

Fig 5: Gran Fury & Monaco

Courtesy of CHRYSLER GROUP, LLC

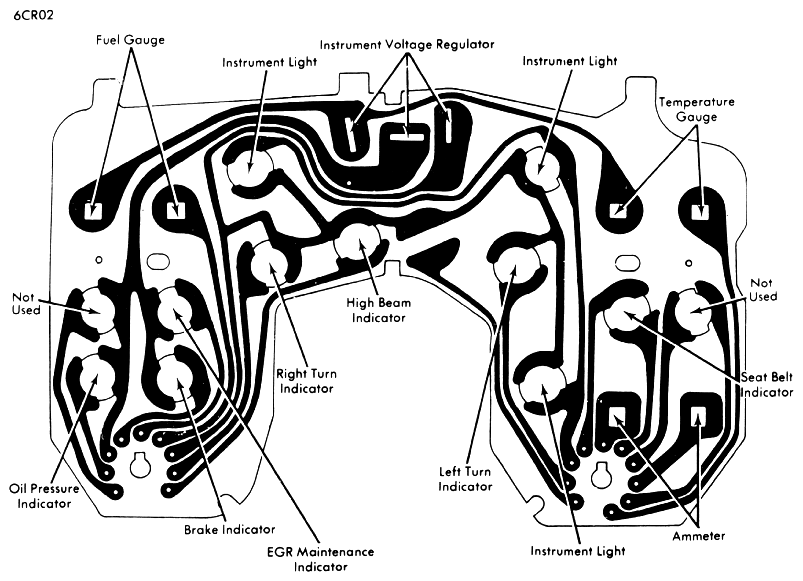

Fig 6: Valiant & Dart

Courtesy of CHRYSLER GROUP, LLC

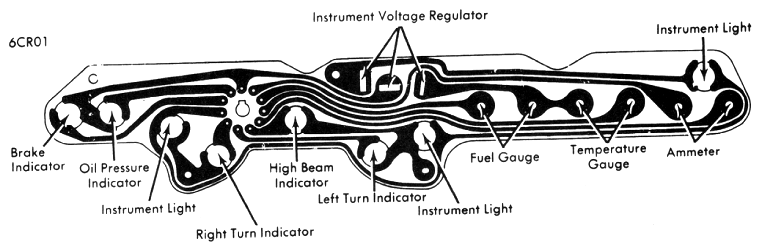

Fig 7: Aspen & Volare

Courtesy of CHRYSLER GROUP, LLC
