Grand Fury, Monaco

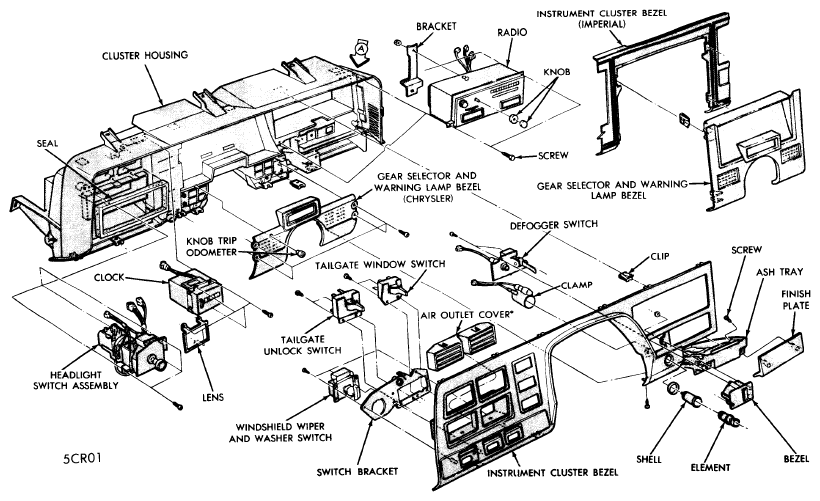

Place gear selector in "L". Remove ash tray and its housing. Remove cigar lighter. Center cluster bezel switches and levers in their openings. Remove bezel mounting screws and pull top of bezel outward to release upper spring clips. Disengage cluster bezel locking tabs from bezel and remove cluster bezel. Remove sub-bezel using pliers to remove nylon attaching pins. To remove cluster lens, remove gear shift pointer. Remove lens-to-cluster housing attaching pins with pliers, then remove lens. To remove speedometer, remove instrument panel upper cover. Working through access hole in top of panel, disconnect speedometer cable. Remove speedometer assembly. Other cluster components may now be removed as required. To install cluster assembly, reverse removal procedure.
