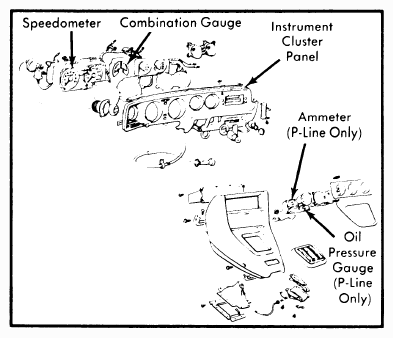

Instrument Clusters
To remove instrument cluster, remove three upper screws and a lower screw located behind the blind cover above the air intake control panel, three screws behind and in upper inside part of ash tray, and radio mounting nuts.
Pull instrument cluster a small distance, disconnect gauge connectors, heater fan connectors, speedometer cable and grounding cable attached to body by a screw. Remove instrument cluster. To install, reverse removal procedure.
