Brake Rotor: Removal

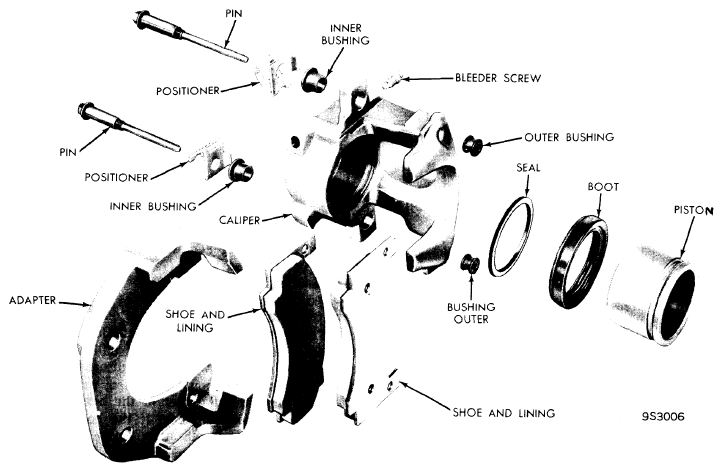

Raise vehicle and remove wheel and tire assembly. Remove caliper assembly (Do not disconnect brake line). Suspend caliper from wire hook or loop to avoid strain on flexible hose. Remove grease cap, cotter pin, nut lock, nut, thrust washer and outer wheel bearing. Pull disc and hub off wheel spindle.
