Differential Carrier

Remove axle shafts and disconnect rear universal joint then drop propeller shaft. Remove lubricant with suction gun. Remove carrier attaching nuts and remove carrier.

Fig 1: PINION DEPTH FOR 8 1/4" RING GEAR

Courtesy of CHRYSLER GROUP, LLC

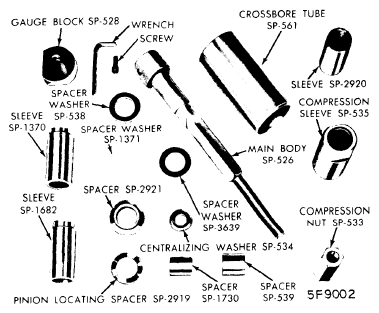

Fig 2: OPINION DEPTH TOOL SET C-758-D-4 (SET C-785 SIMILAR)

Courtesy of CHRYSLER GROUP, LLC
