Rear Suspension - PEUGEOT: Description

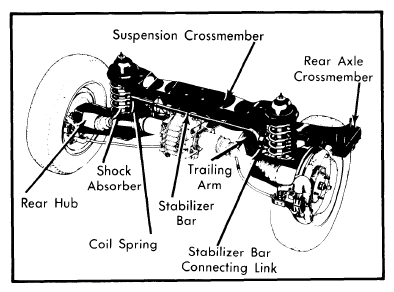

Independent rear suspension utilizing trailing arms and coil springs. Rear hub is supported by lower trailing arms which pivot at points on rear axle crossmember. Coil springs are mounted between suspension crossmember at top and trailing arm at bottom. Hydraulic shock absorbers also mount between suspension crossmember and trailing arm, and are located inside coil spring. A stabilizer bar is mounted to frame and connected at ends to trailing arms.
