1970 Gt

  1. Remove hood and disconnect battery cables. Drain cooling system and remove assembly including hoses. Using suitable tool (J-21709) remove shift linkage. Remove air cleaners. Withdraw rod from carburetor and rear support.
  2. From engine, disconnect fuel line, control cables for carburetors and heater, heater hoses and starter wires, alternator, distributor, and back-up light switch on transmission.
  3. Remove oil filter and its housing. Disconnect exhaust pipe from exhaust manifold. Remove drive shaft.
  4. Using suitable equipment (see Fig 1), attach engine harness. Loop cable around water pump housing and front exhaust manifold mounting flange. Secure ends to bar.

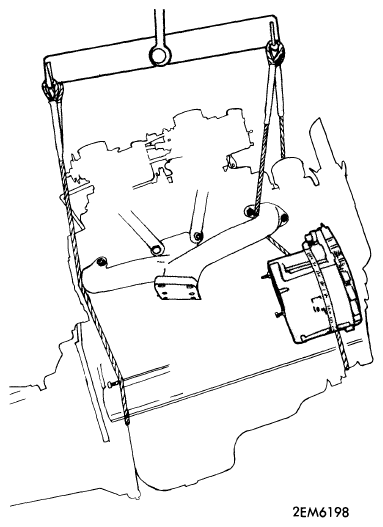

    Fig 1: Engine Removal (1970 Gt)
    G09325986Courtesy of NOT AVAILABLE
  5. Loop a second cable around crankcase between clutch housing and oil pan. Secure ends to bar.
  6. Disconnect transmission crossmember from transmission and frame. Disconnect engine crossmember from engine and frame.
  7. Pull engine toward front as far as possible and carefully lift engine from car.
