Removal Procedure

  1. Remove the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  2. Disconnect the required lamp from the cluster turning counterclockwise.

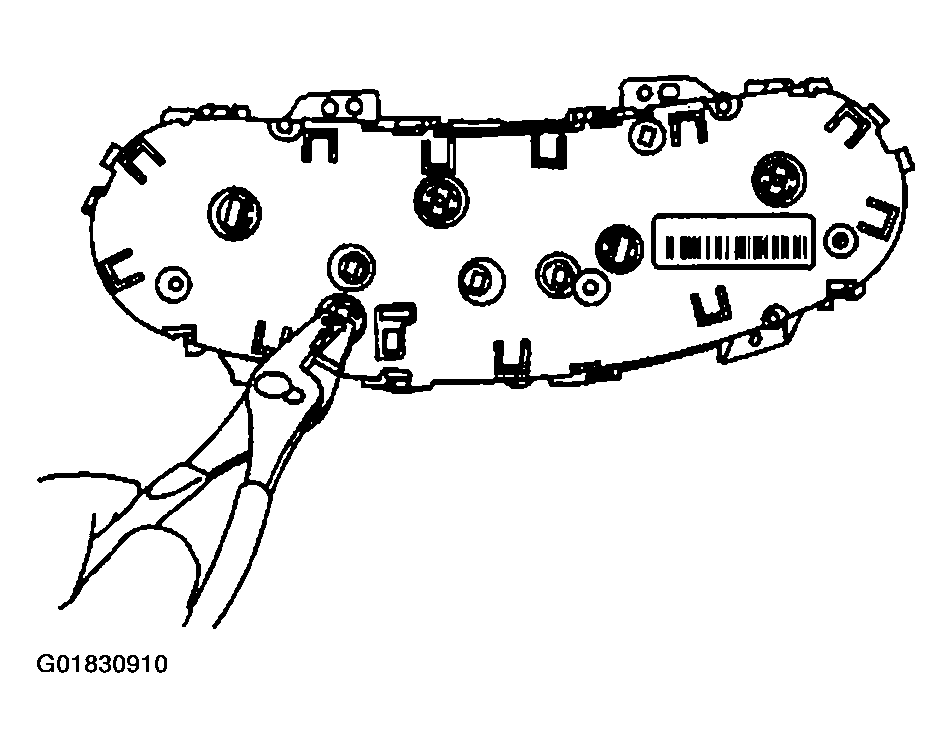

    Fig 1: Disconnecting Lamp From Cluster
    G01830910Courtesy of GENERAL MOTORS CORP.
  3. Remove the lamp from the cluster
    Fig 2: Removing Lamp From Cluster
    G01830911Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the lamp socket, by pulling out.
    Fig 3: Removing Bulb From Lamp Socket
    G01830912Courtesy of GENERAL MOTORS CORP.
