Low Washer Fluid Indicator Malfunction

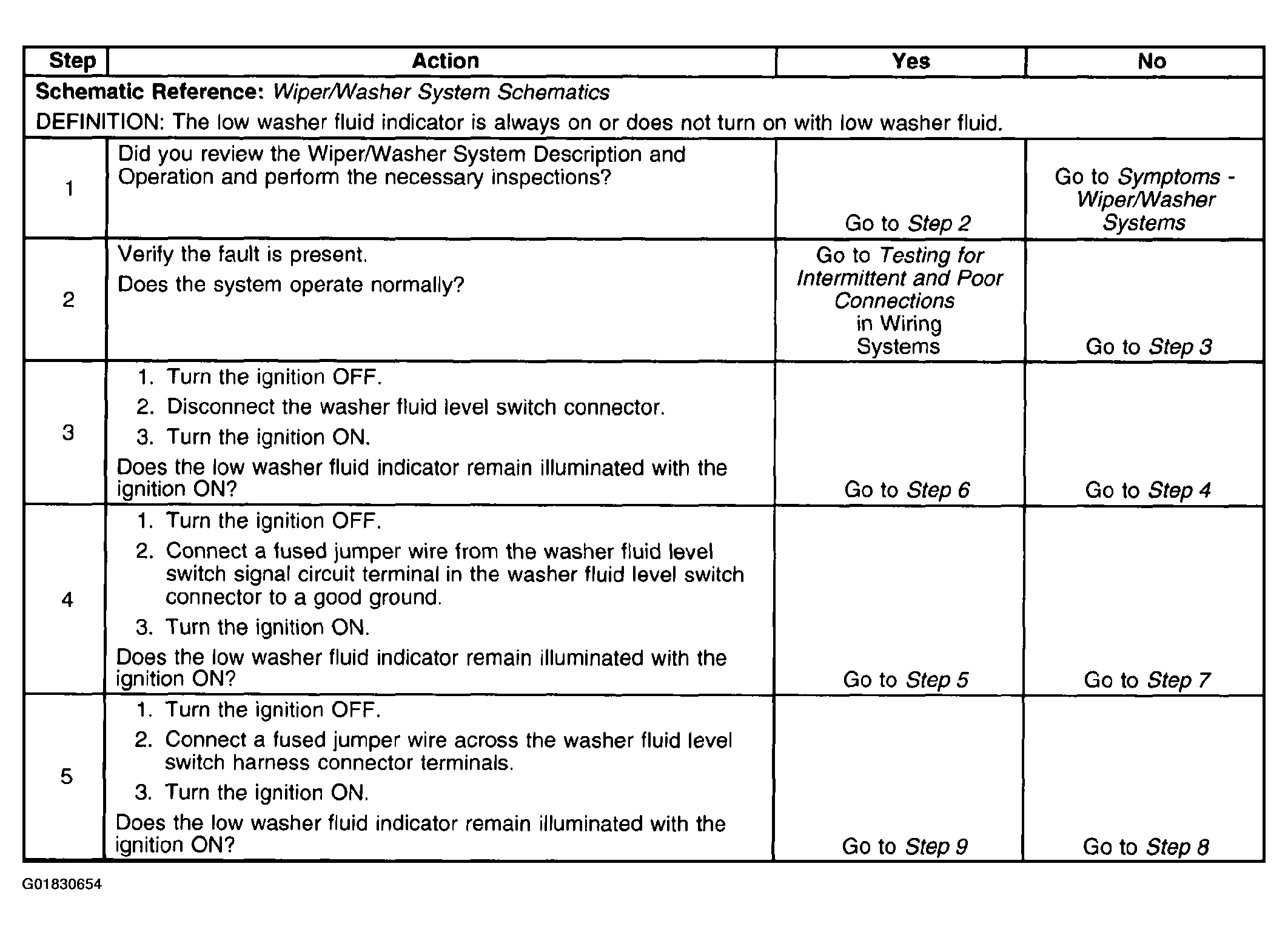

Fig 1: Low Washer Fluid Indicator Malfunction (Steps 1-5)

Courtesy of GENERAL MOTORS CORP.

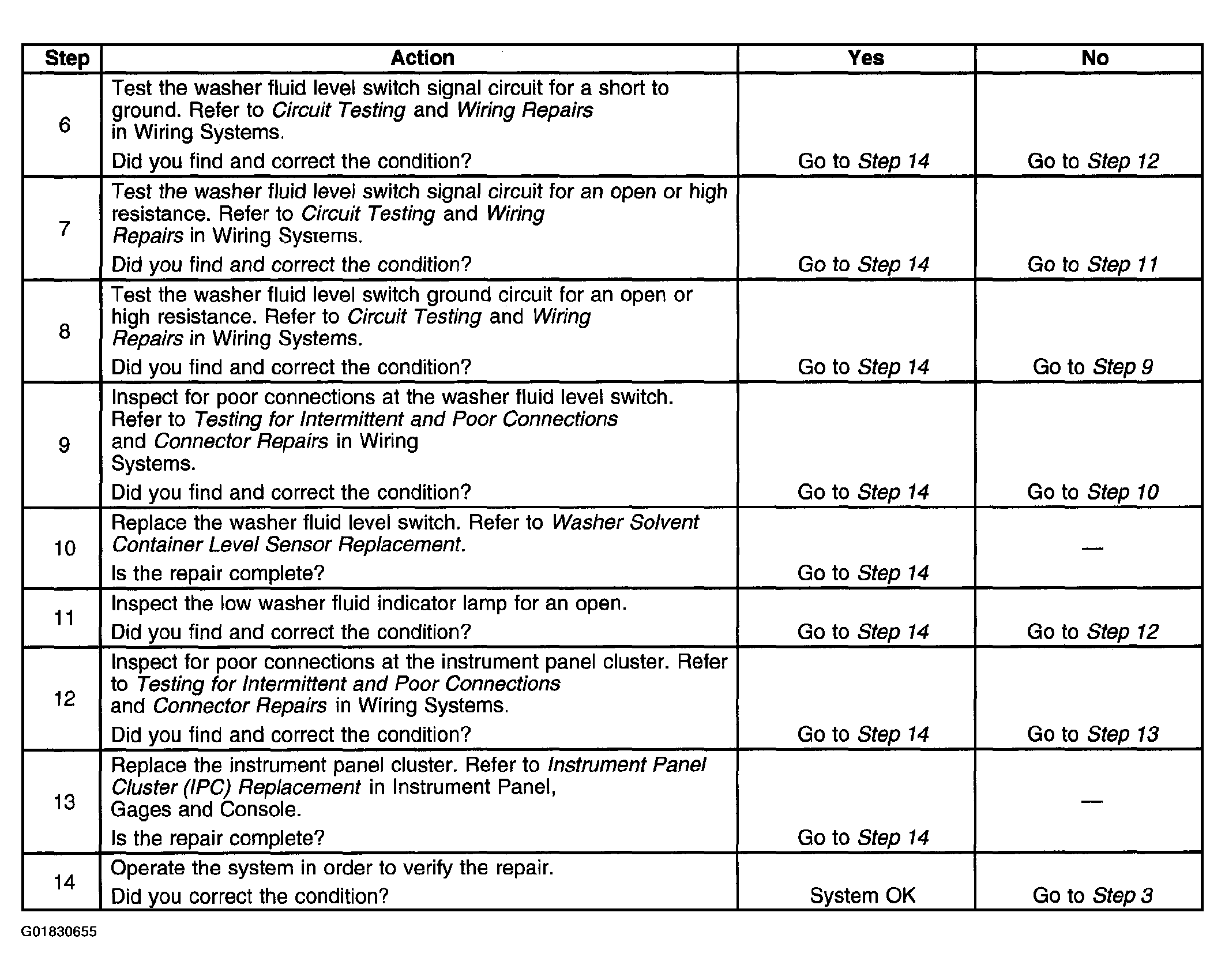

Fig 2: Low Washer Fluid Indicator Malfunction (Steps 6-14)

Courtesy of GENERAL MOTORS CORP.
