Installation Procedure

  1. Align the trip odometer and reset switch to the I/P cluster trim plate.
  2. Install the trip odometer and reset switch. Press into place until fully seated.
  3. Connect the electrical connector to the trip odometer and reset switch.
  4. Press the I/P cluster trim plate to the I/P to engage the retainers.
  5. Install the steering column filler panel. Refer to Steering Column Filler Replacement .
    NOTE: Refer to FASTENER NOTICE .
  6. Install the I/P cluster trim plate screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in)

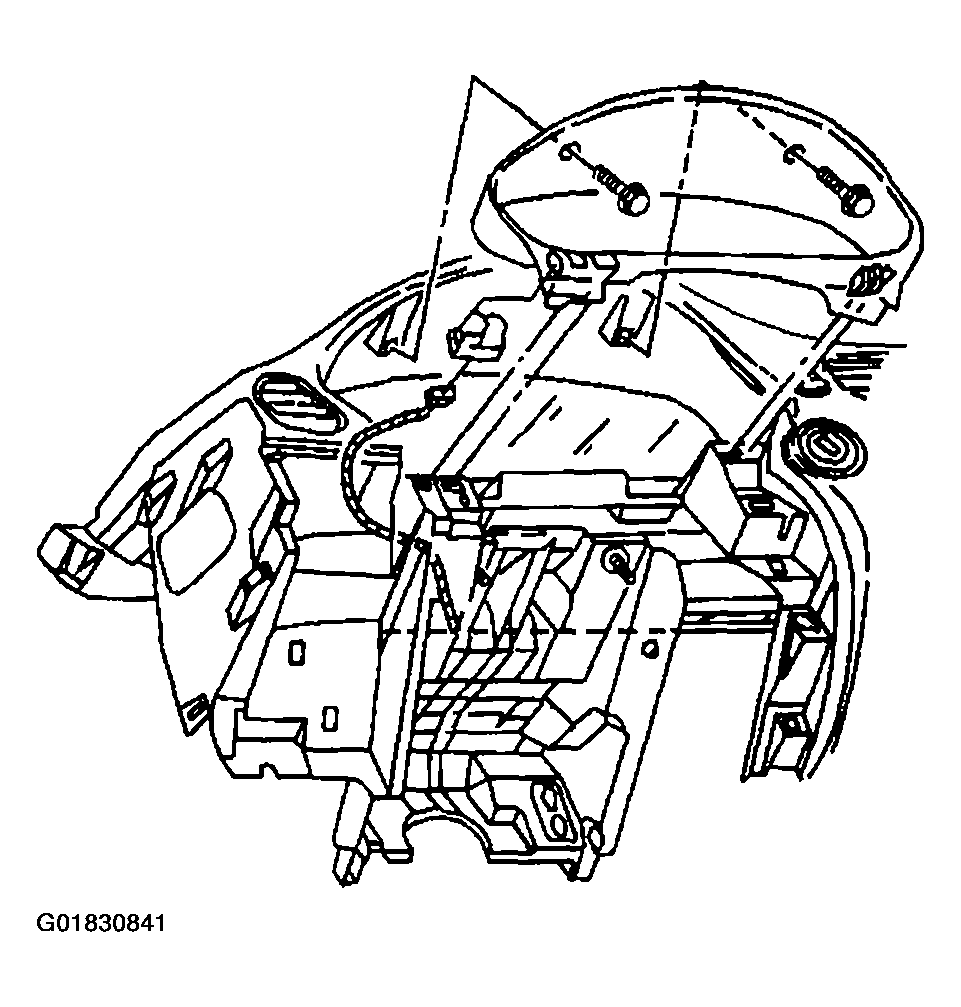

    Fig 1: Installing Trip Odometer Switch, Reset Switch, Electrical Connectors & Screws
    G01830841Courtesy of GENERAL MOTORS CORP.
