Installation Procedure

  1. Install the seat heater switches to the IP accessory trim plate, if equipped.
  2. Connect the IP harness seat heater leads, if equipped.
  3. Align the IP accessory trim plate retainers to the openings in the IP trim pad.
  4. Press the IP accessory trim plate to the IP trim pad. Make sure the retainers are fully seated.
  5. Install the front floor console trim plate. Refer to Trim Plate Replacement - Front Floor Console .

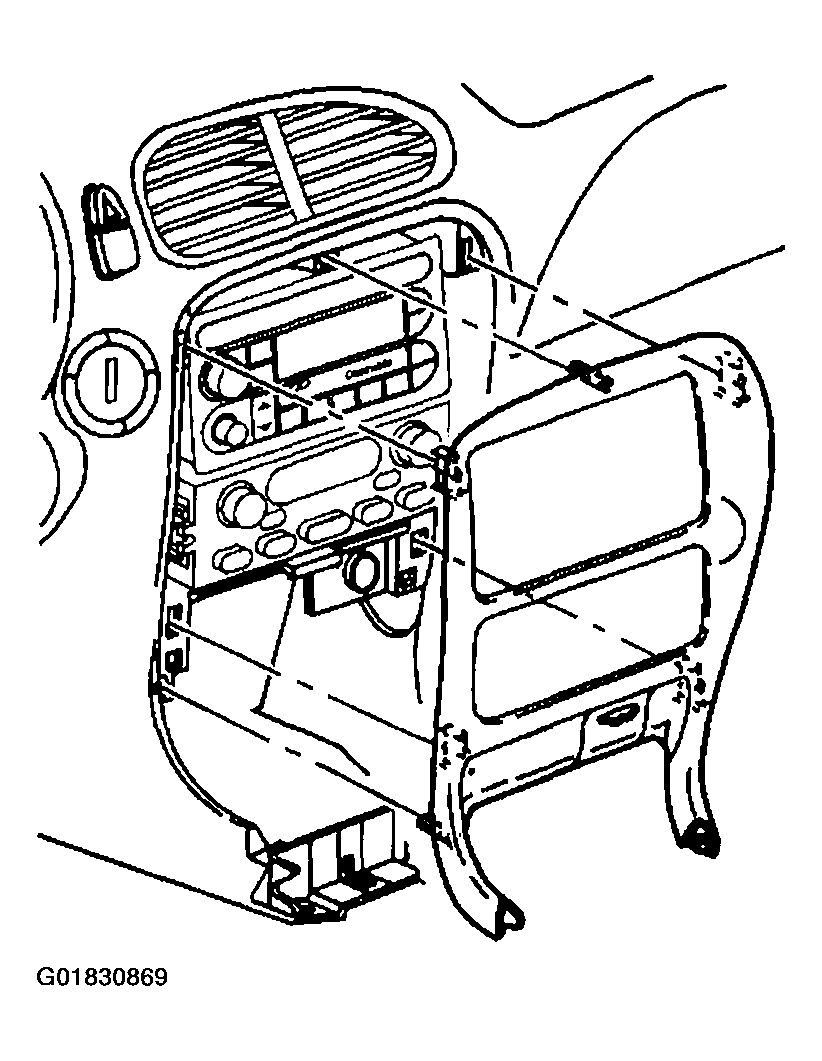

    Fig 1: Installing IP Accessory Trim Plate
    G01830869Courtesy of GENERAL MOTORS CORP.
