Removal Procedure

  1. Raise the front floor console armrest.
  2. Remove the screws from the front floor console trim plate.
  3. Open the front floor console cupholder.
  4. Pull up on the front floor console trim plate starting at the rear and working forward to release the retainer clips.
  5. Remove the traction control switch from the front floor console trim plate. Refer to TRACTION CONTROL SWITCH REPLACEMENT .
  6. Lift the front floor console trim plate up and over the transaxle shift lever.
  7. Remove the front floor console trim plate from the front floor console.

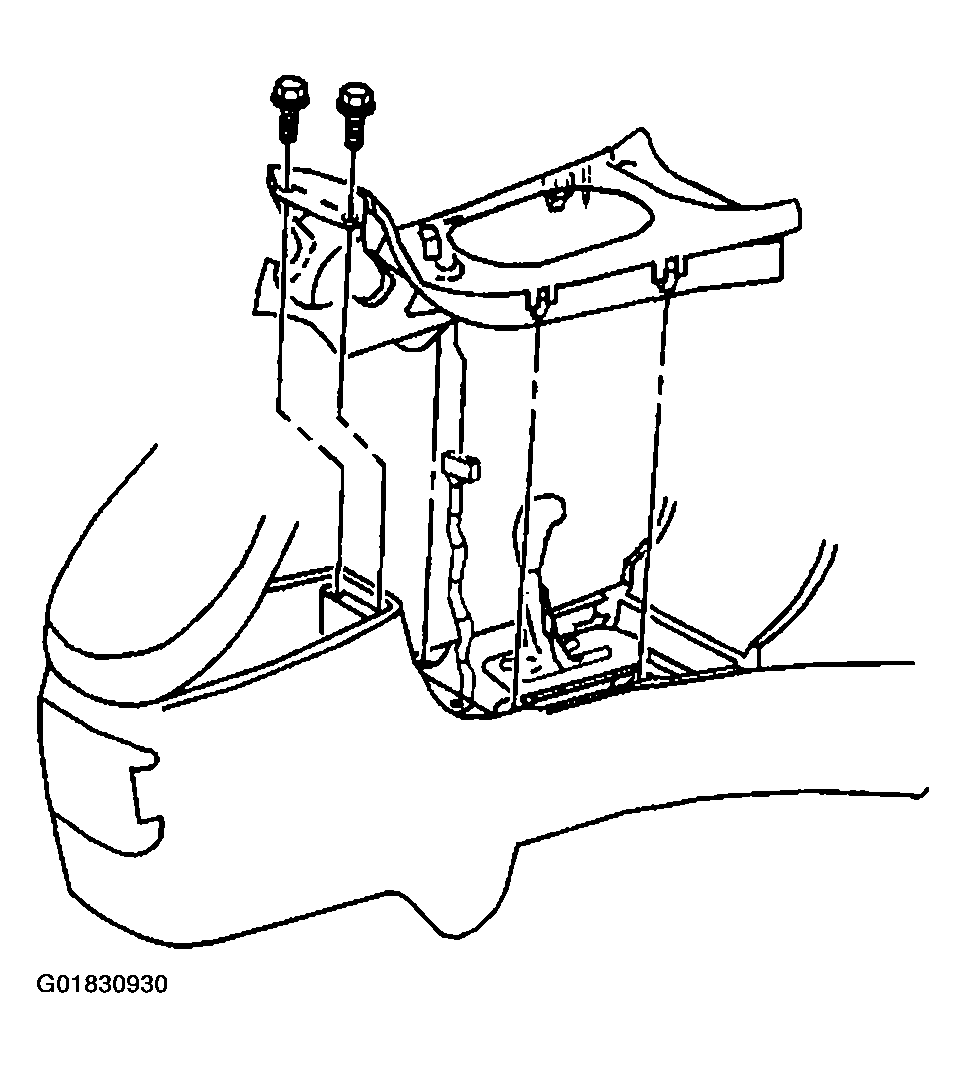

    Fig 1: Removing Front Floor Console Trim Plate & Screws
    G01830930Courtesy of GENERAL MOTORS CORP.
