Removal Procedure

  1. Remove the screws from the instrument panel cluster trim plate.
  2. Remove the Steering Column Filler Panel. Refer to Steering Column Filler Replacement .
  3. Pull out instrument panel cluster trim plate to release from retainers.
  4. Remove the trip odometer and reset switch from the instrument panel cluster trim plate. Refer to Trip Odometer and Reset Switch Replacement .
  5. Remove the instrument panel cluster trim plate from the instrument panel.

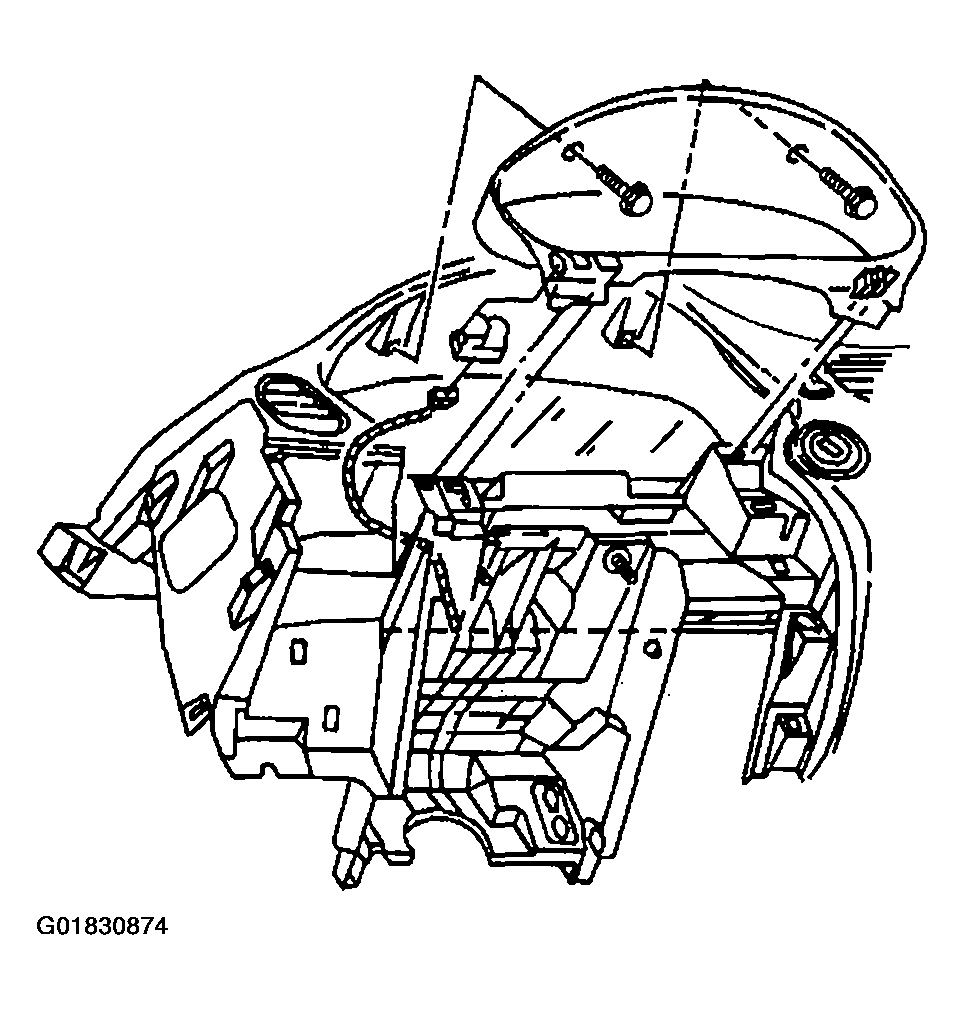

    Fig 1: Removing IP Panel Cluster Trim Plate & Screws
    G01830874Courtesy of GENERAL MOTORS CORP.
