Installation Procedure

  1. Install the trip odometer and reset switch to the instrument panel cluster trim plate. Refer to Trip Odometer and Reset Switch Replacement .
  2. Align the instrument panel cluster trim plate to the instrument panel retainers.
  3. Install the instrument panel cluster trim plate.

    Press into place until fully seated.

    NOTE: Refer to FASTENER NOTICE .
  4. 4. Install the screws to the instrument panel cluster trim plate.

    Tighten

    Tighten the instrument panel cluster trim plate bolts to 2 N.m (18 lb in).

  5. Install the Steering Column Filler Panel. Refer to Steering Column Filler Replacement .

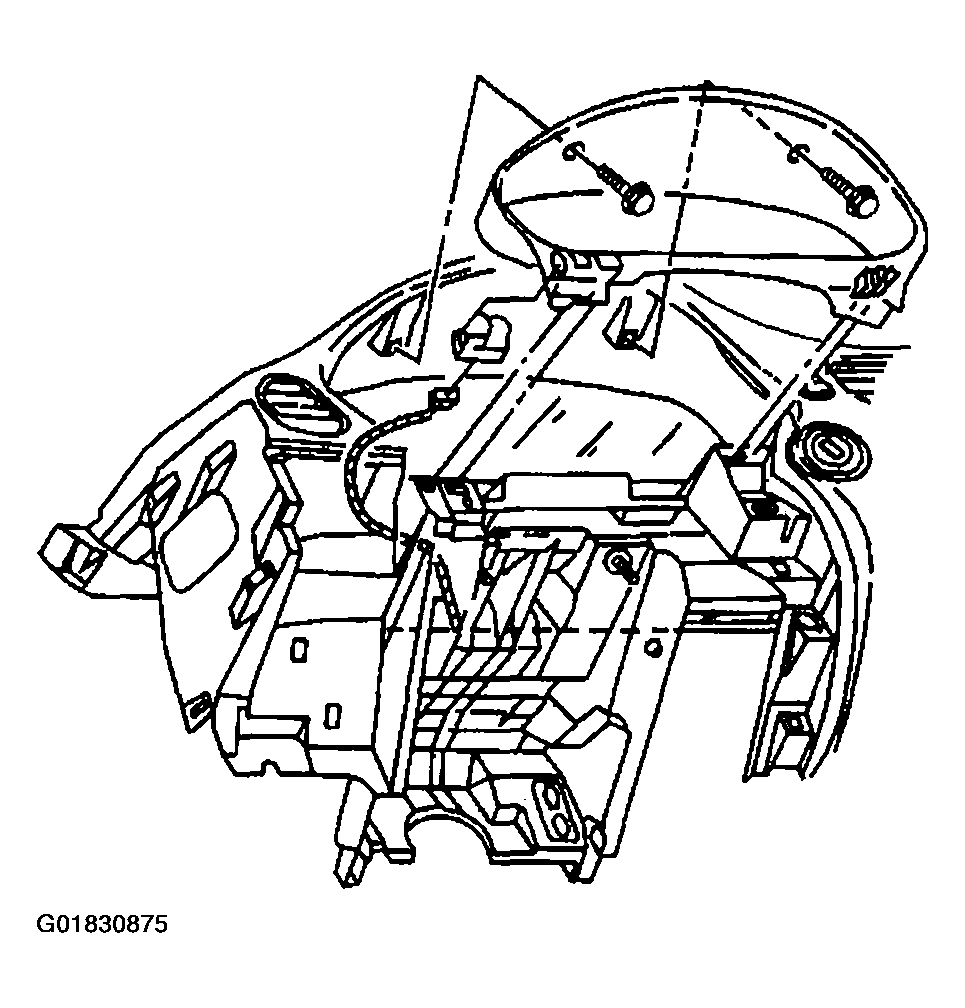

    Fig 1: Installing IP Panel Cluster Trim Plate & Screws
    G01830875Courtesy of GENERAL MOTORS CORP.
