Striker Adjustment - IP Compartment

  1. Open the instrument panel compartment door.
  2. Loosen striker nuts and adjust striker to desired position. Adjust the instrument panel compartment door.
  3. Close the instrument panel compartment door, and check fit of the instrument panel compartment door.

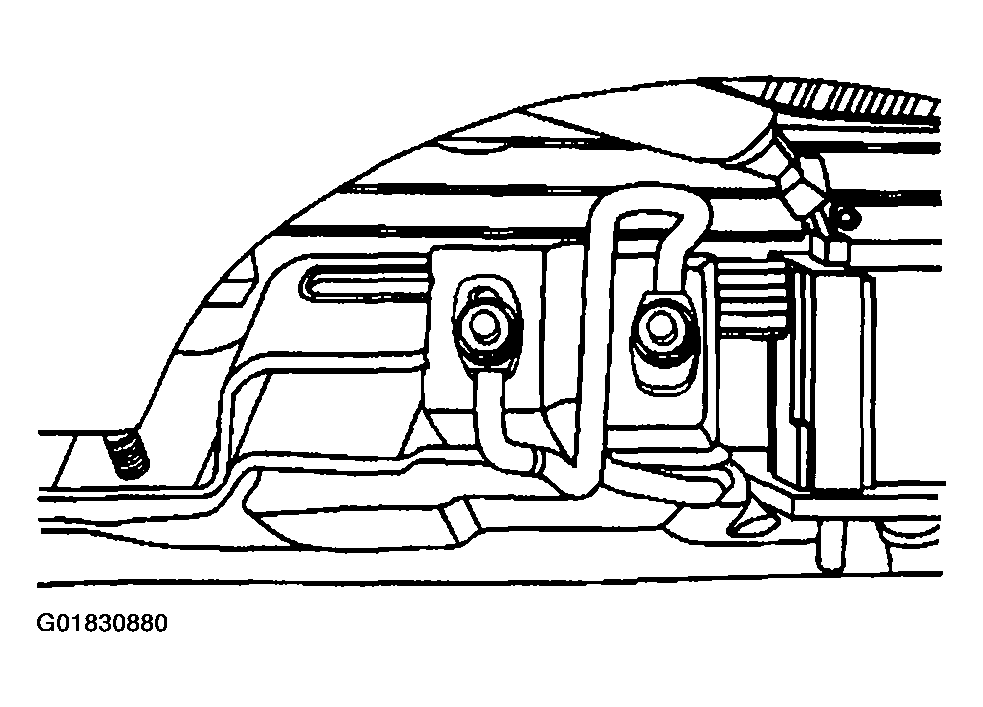

    Fig 1: Adjusting Striker To Desired Position
    G01830880Courtesy of GENERAL MOTORS CORP.
