Removal Procedure

  1. Remove the left instrument panel (IP) insulator. Refer to Closeout/Insulator Panel Replacement - Left .
  2. Remove the IP steering column opening filler by unsnapping the retainers from the IP.

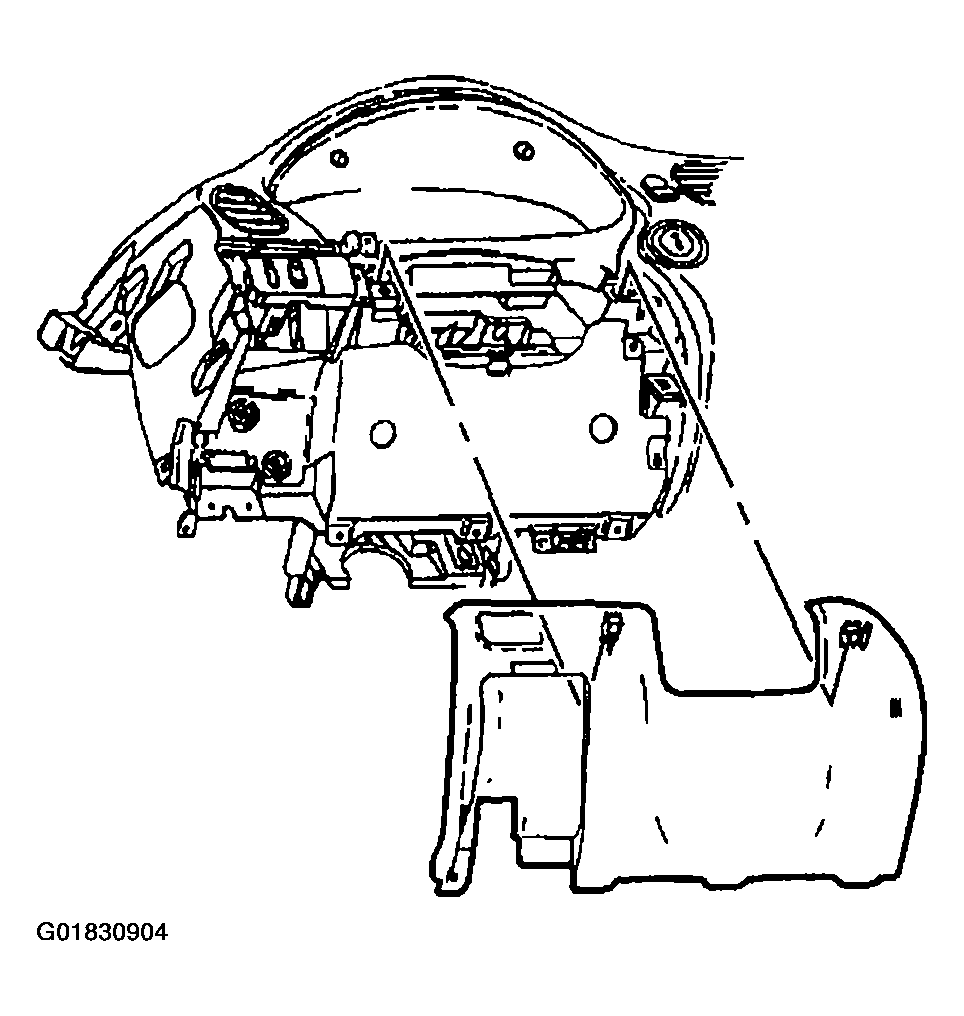

    Fig 1: Removing Left IP Insulator
    G01830904Courtesy of GENERAL MOTORS CORP.
