Removal Procedure

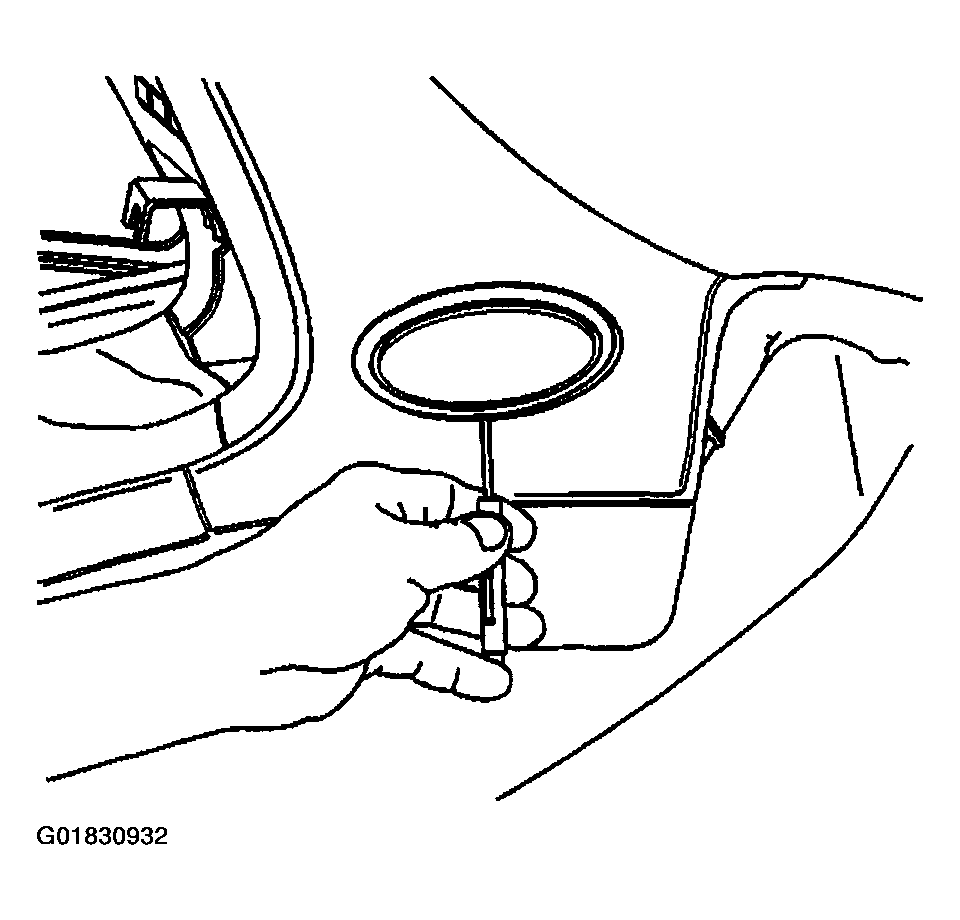

  1. Release the front floor console power accessory port housing from the front floor console by using a small flat-bladed tool to release the retainer.
    Fig 1: Using Small Flat Bladed Tool Release Retainer
    G01830932Courtesy of GENERAL MOTORS CORP.

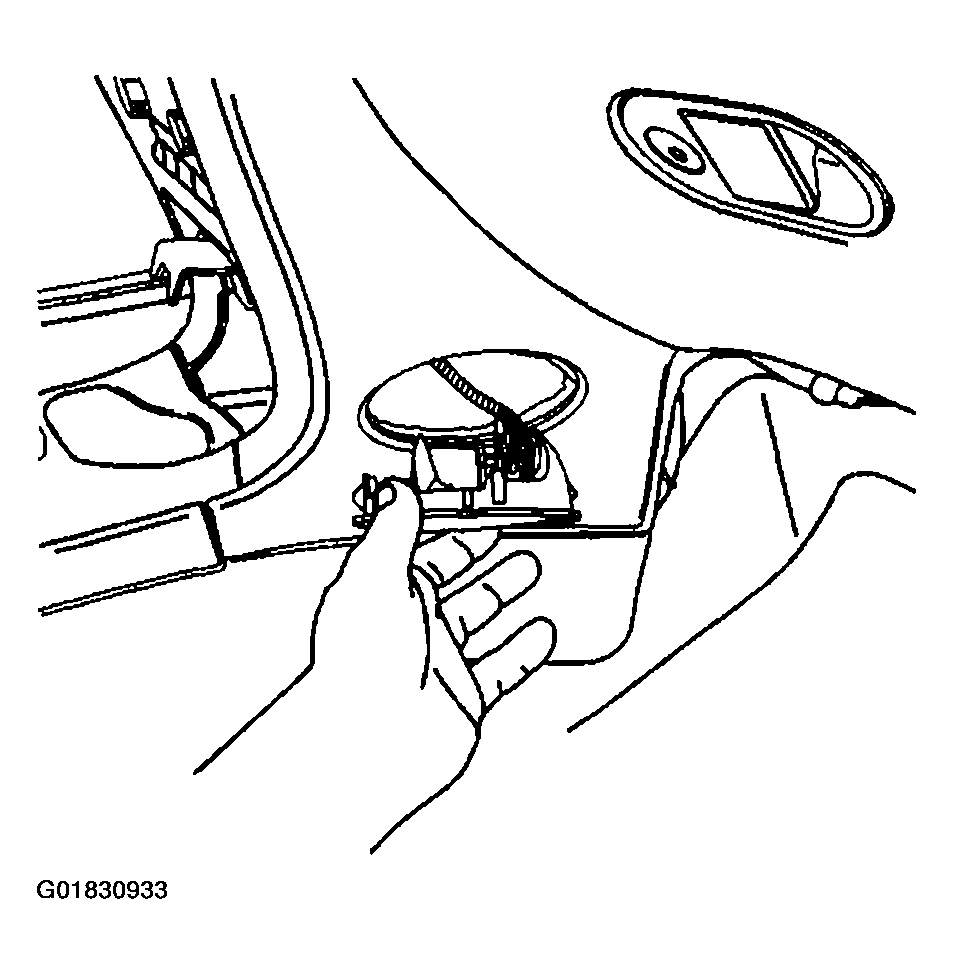

  2. Remove the front floor console power accessory port housing from the front floor console.
    Fig 2: Removing Front Floor Console Power Accessory Port Housing From Front Floor Console
    G01830933Courtesy of GENERAL MOTORS CORP.

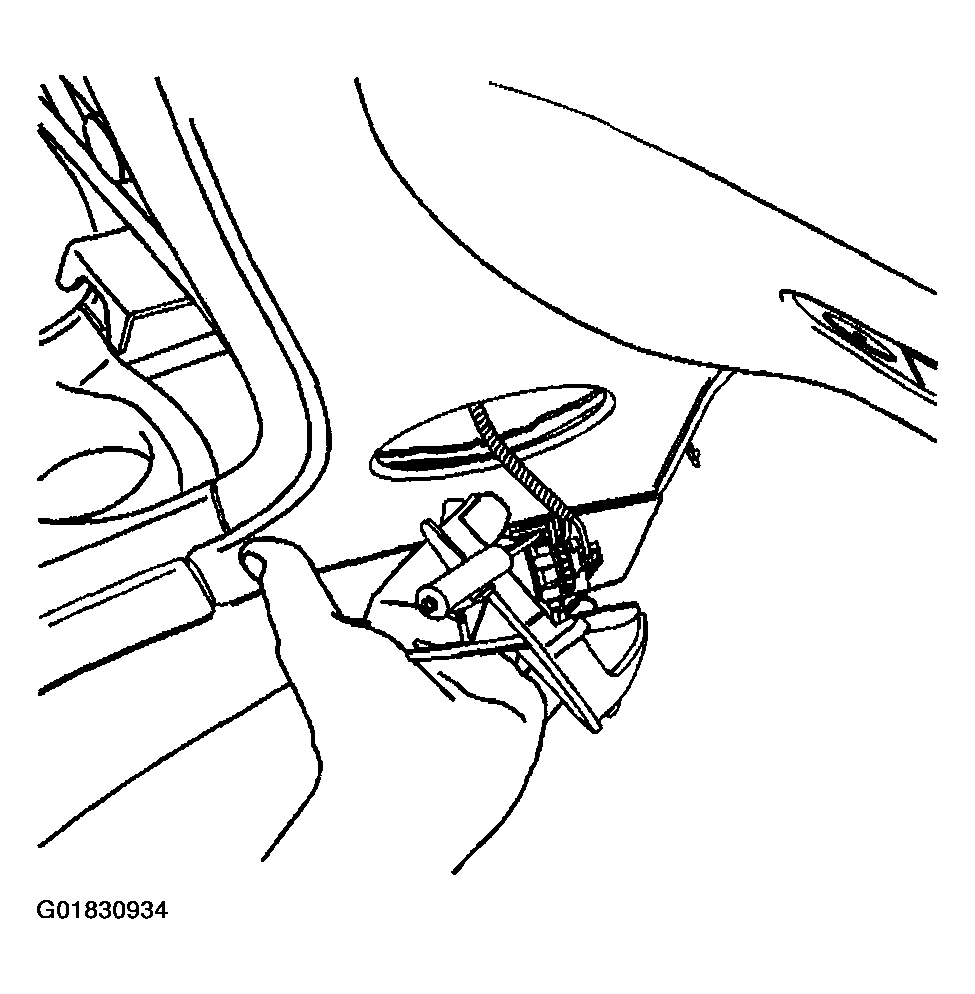

  3. Release the electrical connector retainer tabs from the power accessory port.
    Fig 3: Removing Electrical Connector Retaining Tabs From Power Accessory Port
    G01830934Courtesy of GENERAL MOTORS CORP.

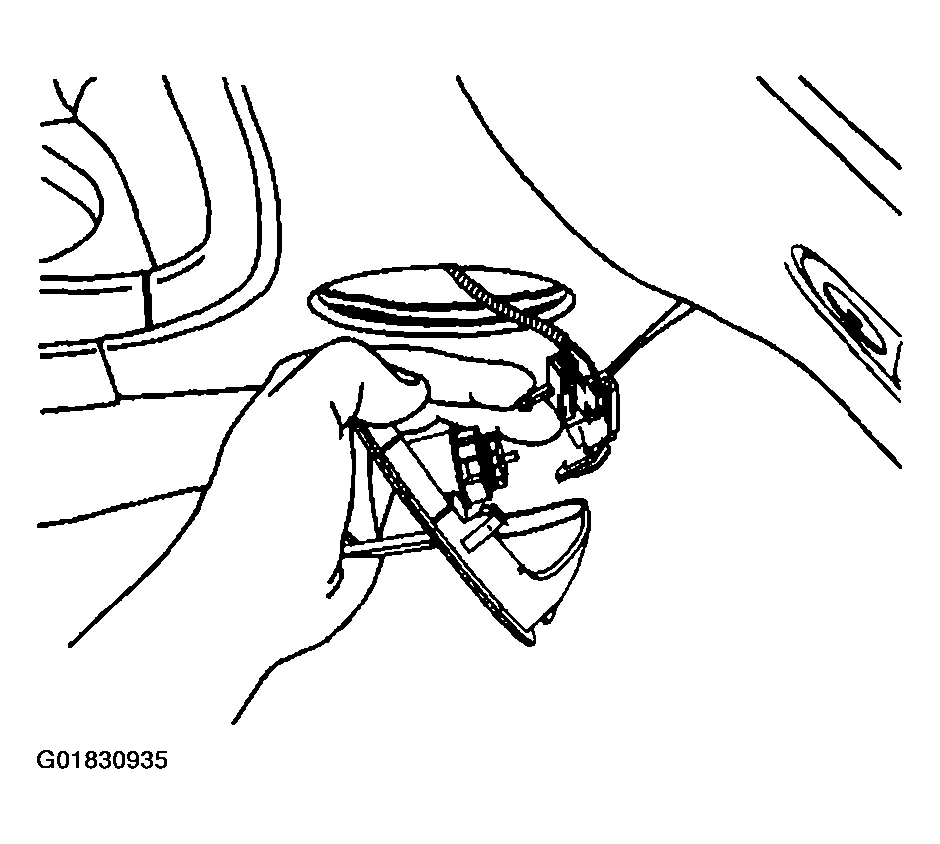

  4. Disconnect the electrical connector from the power accessory port.
    Fig 4: Removing Electrical Connector From Power Accessory Port
    G01830935Courtesy of GENERAL MOTORS CORP.

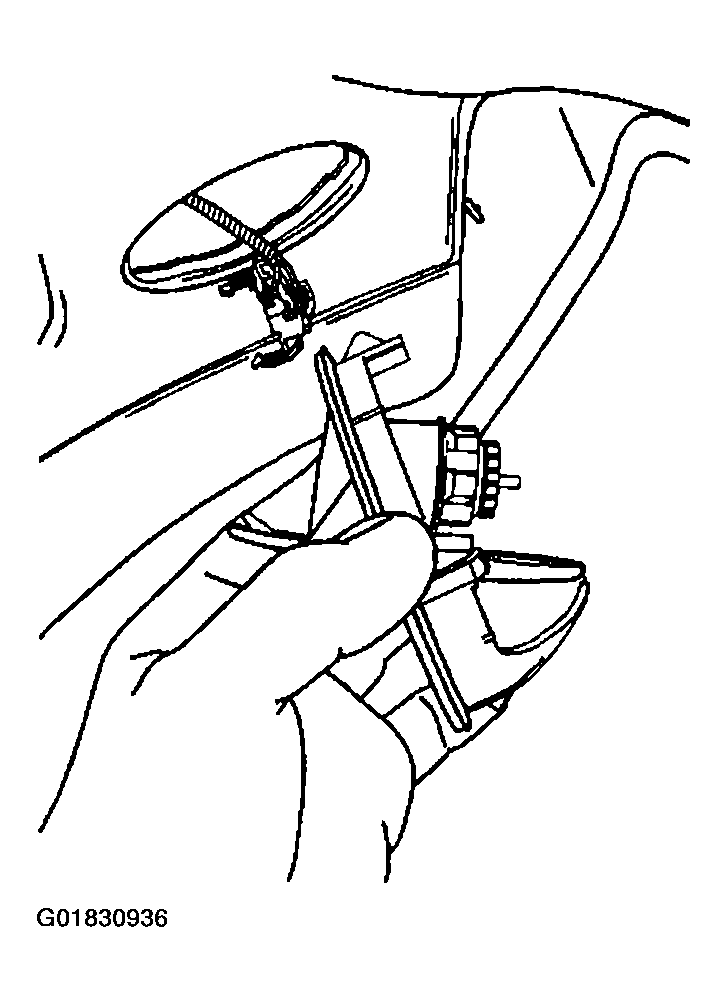

  5. Remove the power accessory port element retainer.
  6. Remove the power accessory port element.
    Fig 5: Removing Power Accessory Port Element Retainer & Element
    G01830936Courtesy of GENERAL MOTORS CORP.
