Removal Procedure

  1. Remove the instrument panel compartment latch. Refer to Latch Replacement - IP Compartment .
  2. Position the instrument panel compartment latch fork bolt in the up position.
  3. Insert the key into the instrument panel compartment lock cylinder.
  4. Rotate the instrument panel compartment lock cylinder clockwise to the 3 o'clock position with the key.
  5. With the key in position, apply a light load and depress the retainer tumbler through the poke hole at the right hand side of the instrument panel compartment latch.

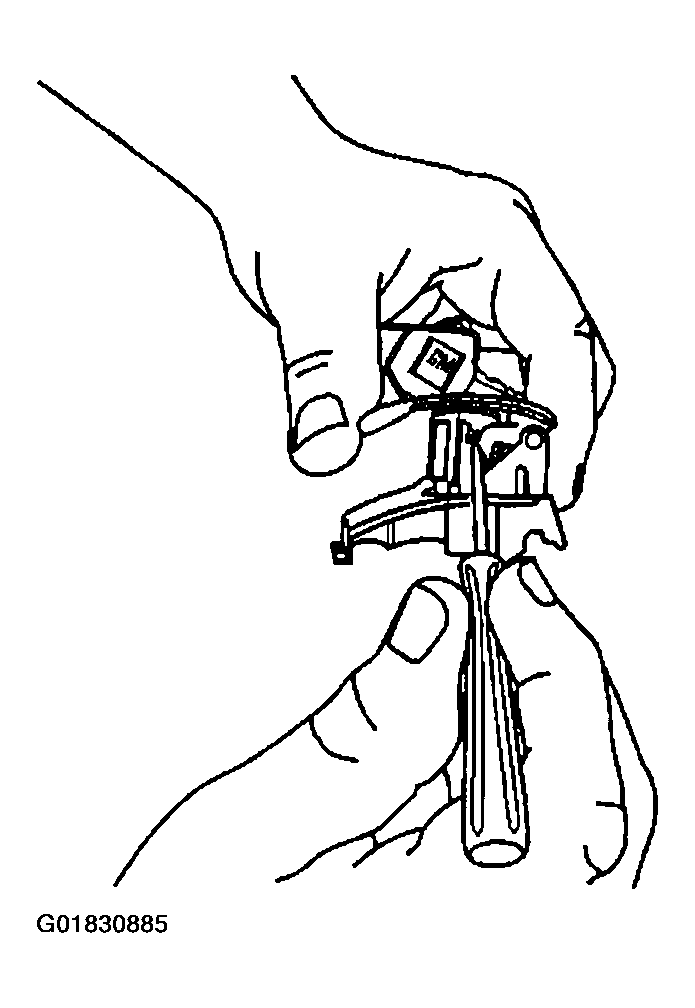

    Fig 1: Depressing Retainer Tumbler
    G01830885Courtesy of GENERAL MOTORS CORP.
  6. Rotate the key until the instrument panel compartment lock cylinder rotates to about the 5 o'clock position.

    This will line up the notch at the rear of the instrument panel compartment lock cylinder with the tab in the instrument panel compartment latch housing.

    Fig 2: Rotating Instrument Panel Compartment Lock Cylinder Using Key
    G01830886Courtesy of GENERAL MOTORS CORP.
  7. Remove the instrument panel compartment lock cylinder from the instrument panel compartment latch by pulling on the key.
    Fig 3: Removing IP Compartment Lock Cylinder From IP Compartment Latch
    G01830887Courtesy of GENERAL MOTORS CORP.
