Removal Procedure

  1. Open the instrument panel compartment door.
  2. Remove the instrument panel compartment latch screws.
  3. Use a flat-bladed tool in order to remove the retainer clip from the instrument panel compartment.

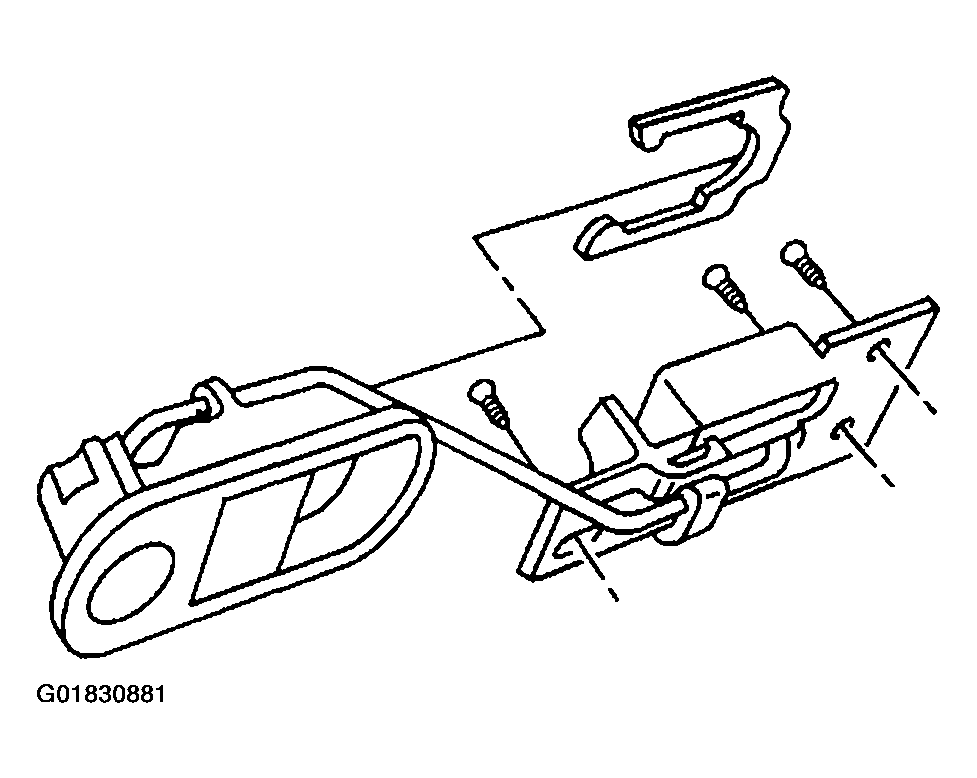

    Fig 1: Removing IP Compartment Latch Screws & Retainer Clip
    G01830881Courtesy of GENERAL MOTORS CORP.
  4. Remove the instrument panel compartment latch from the instrument compartment door.
    Fig 2: Removing IP Compartment Latch
    G01830882Courtesy of GENERAL MOTORS CORP.
