Installation Procedure

  1. Align the instrument panel compartment latch with the instrument panel compartment door.
    Fig 1: Installing IP Compartment Latch
    G01830883Courtesy of GENERAL MOTORS CORP.
  2. Slide the retainer clip onto the instrument panel compartment latch.
  3. Route the lock rod into the instrument panel latch.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the instrument panel compartment latch screws.

    Tighten

    Tighten the instrument panel compartment latch bolts to 2 N.m (18 lb in).

  5. Close instrument panel compartment door.

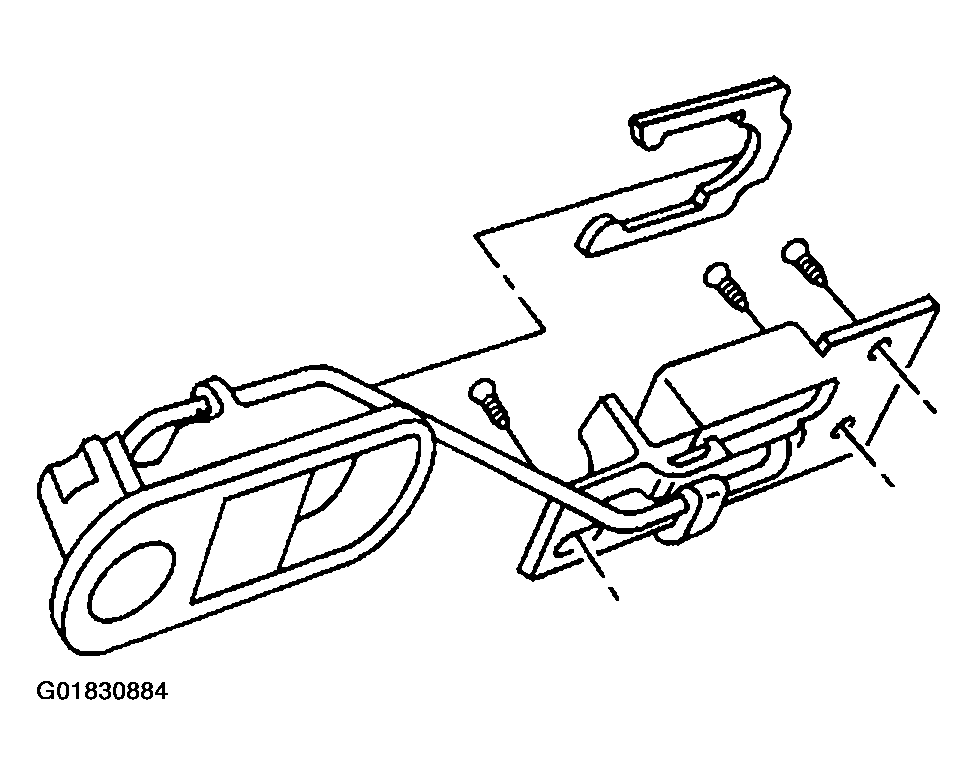

    Fig 2: Installing IP Compartment Latch Screws & Retainer Clip
    G01830884Courtesy of GENERAL MOTORS CORP.
