Removal Procedure

IMPORTANT: The ignition switch must be in the OFF position when removing the instrument panel cluster.
  1. Remove the instrument panel cluster trim plate. Refer to Trim Panel Replacement - IP Cluster .
  2. Remove the screws from the instrument panel cluster.

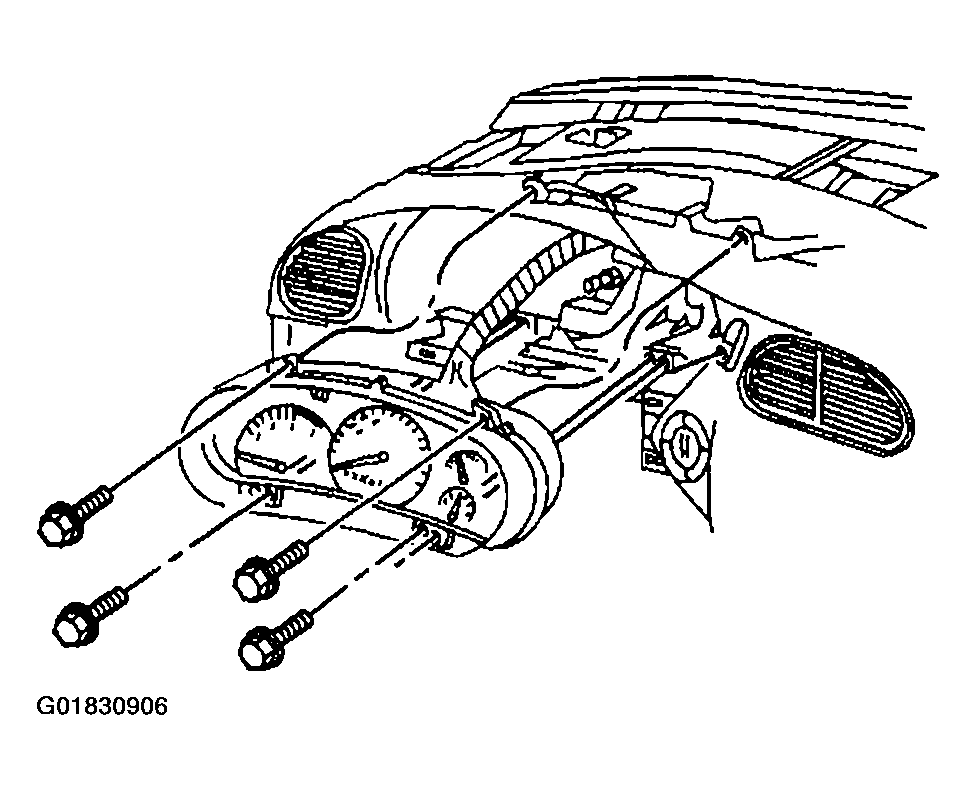

    Fig 1: Removing Instrument Panel Cluster Trim Plate & Screws
    G01830906Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the instrument panel cluster.
  4. Remove the instrument panel cluster from the instrument panel.

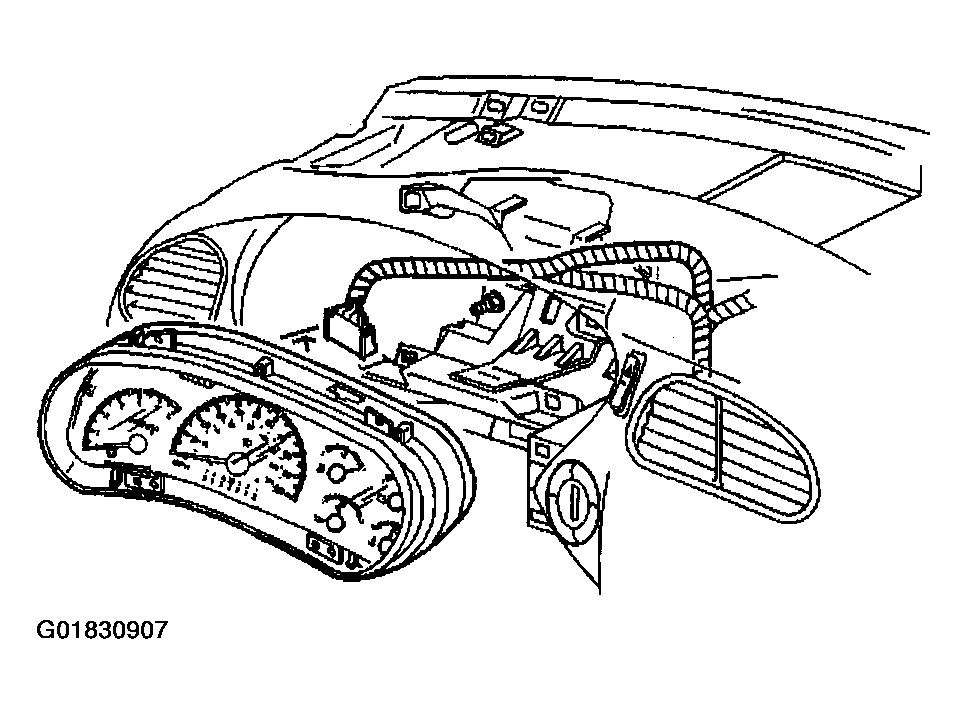

    Fig 2: Removing Instrument Panel Cluster & Electrical Connector
    G01830907Courtesy of GENERAL MOTORS CORP.
