Installation Procedure

  1. Connect the electrical connector to the instrument panel cluster.

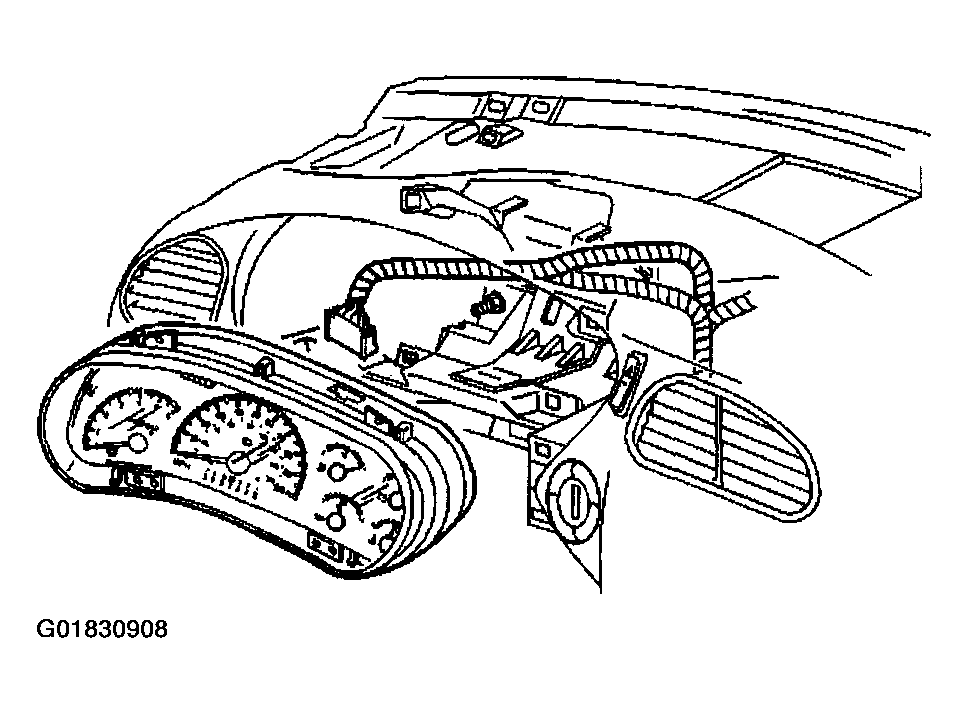

    Fig 1: Installing Electrical Connector To Instrument Panel Cluster
    G01830908Courtesy of GENERAL MOTORS CORP.
  2. Install the instrument panel cluster to the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to instrument panel cluster.

    Tighten

    Tighten the instrument panel cluster bolts to 2 N.m (18 lb in).

  4. Install the instrument panel cluster trim plate. Refer to Trim Panel Replacement - IP Cluster .

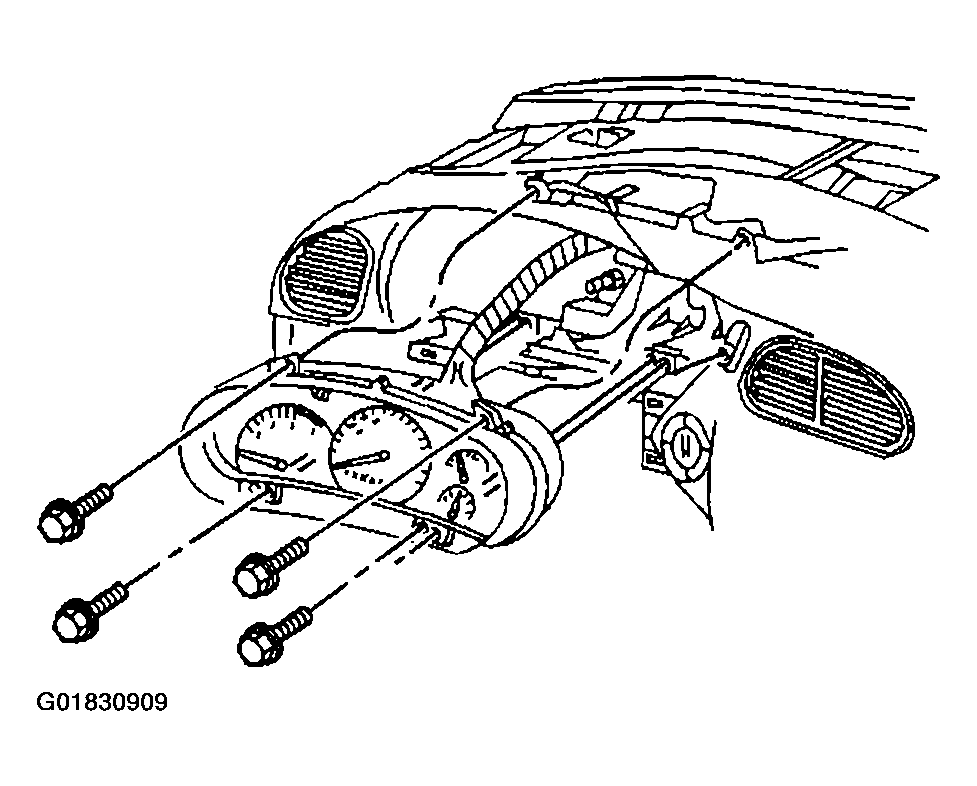

    Fig 2: Installing Instrument Panel Cluster Trim Plate & Screws
    G01830909Courtesy of GENERAL MOTORS CORP.
