Installation Procedure

  1. Align the tabs on the instrument panel end cap to slots in instrument panel retainers.
  2. Install end cap by pressing into the retainers until fully seated.

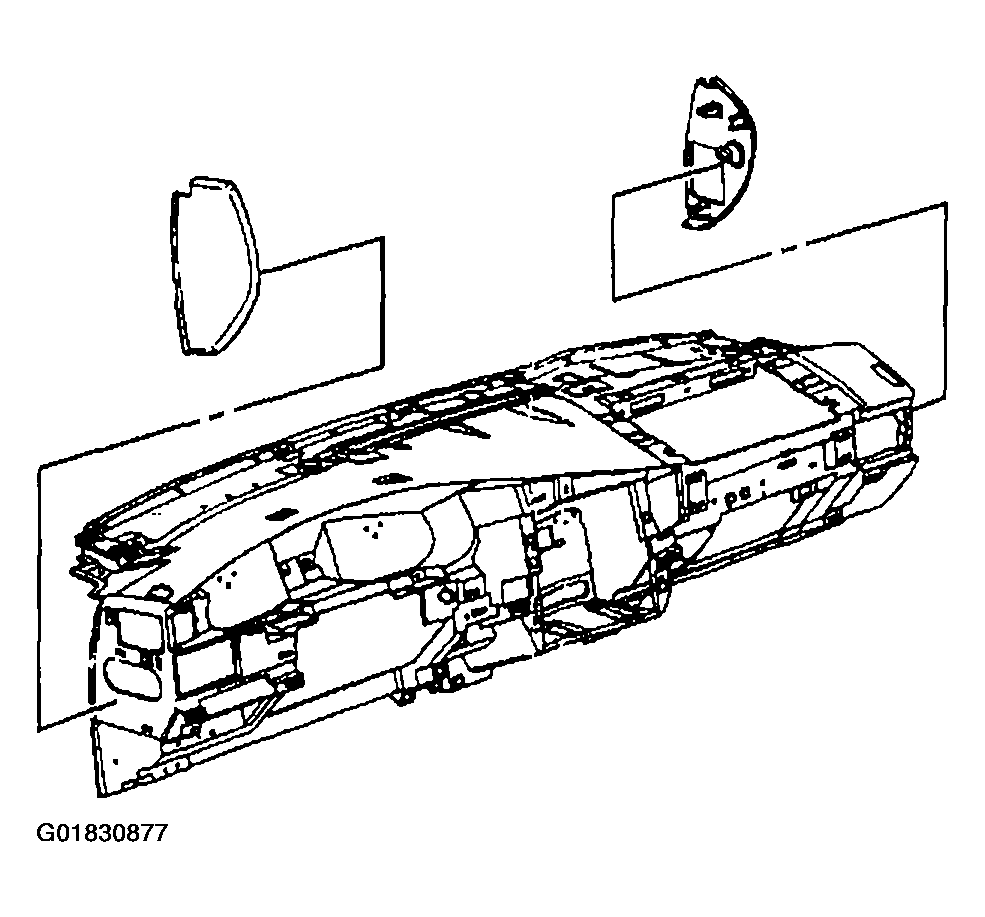

    Fig 1: Installing IP End Cap
    G01830877Courtesy of GENERAL MOTORS CORP.
