Removal Procedure

IMPORTANT: You must perform the BCM theft deterrent relearn procedure after replacement of the ignition switch lock cylinder.
  1. Disconnect negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the radio. Refer to RADIO REPLACEMENT .
  3. Remove the ignition switch bezel from the ignition switch lock cylinder, using a small flat-bladed tool.
  4. Insert the key and turn the ignition switch lock cylinder to the ON position.
    IMPORTANT: Ignition cylinder will not rotate or is seized.
  5. Follow procedure in ignition switch replacement. Refer to Ignition Switch Replacement .
  6. Using a small flat-bladed tool, depress and hold the lock cylinder retaining tab from the radio access hole.
  7. Using the key, pull to remove the ignition switch lock cylinder from the ignition switch.
  8. Remove the key from the ignition switch lock cylinder.

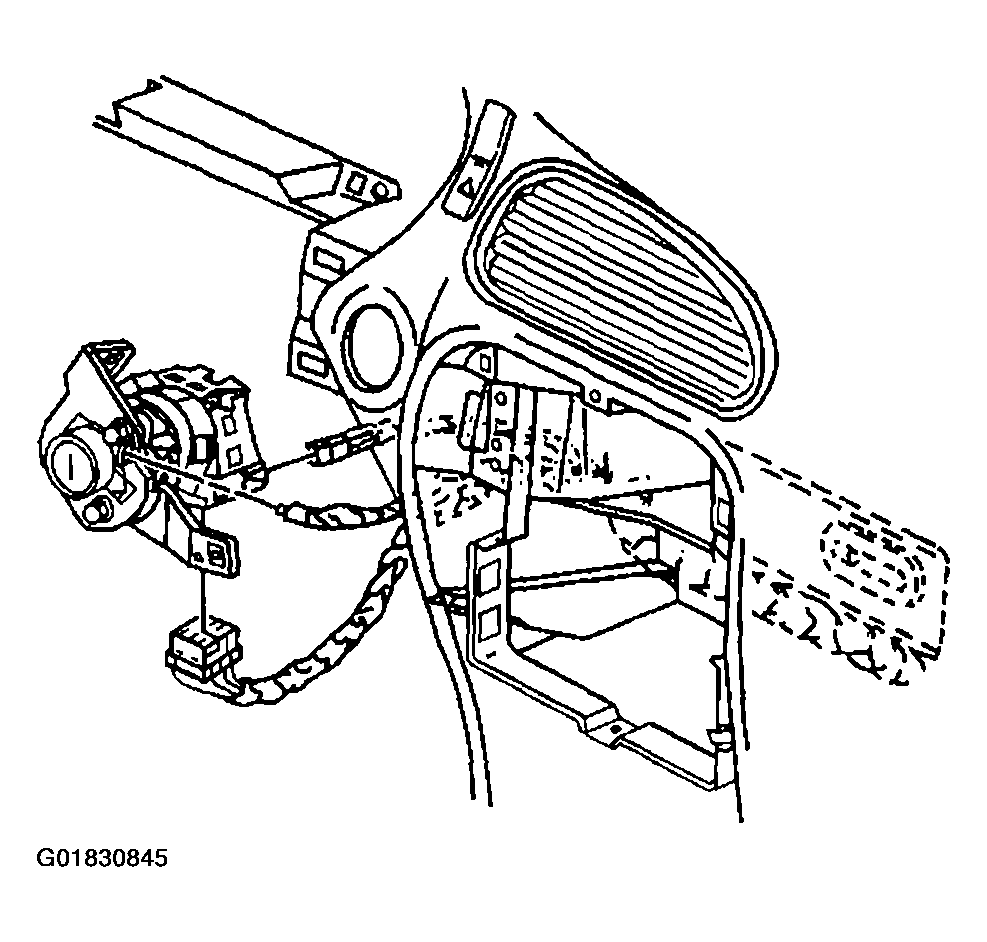

    Fig 1: Removing Ignition Switch Lock Cylinder
    G01830845Courtesy of GENERAL MOTORS CORP.
