Removal Procedure

  1. Open the instrument panel compartment door.
  2. Using a small flat-bladed tool depress retainers on instrument panel compartment lamp switch.

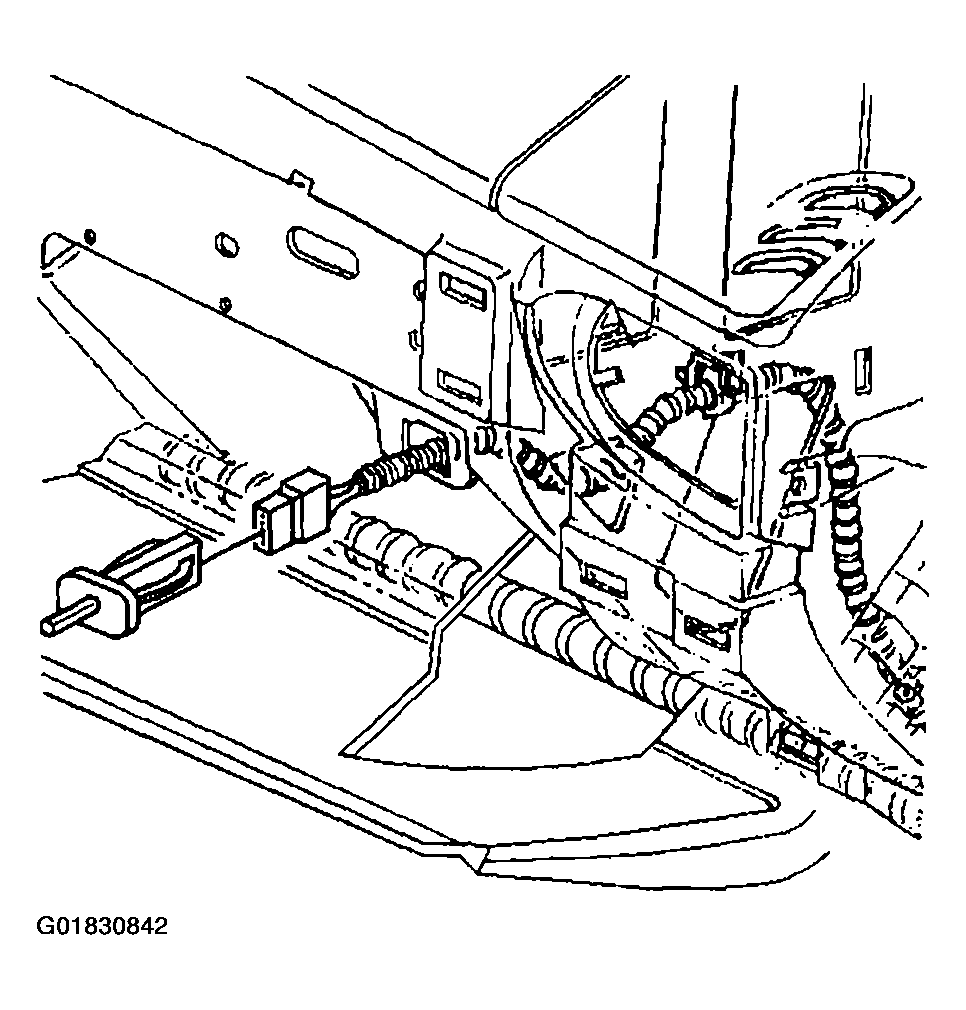

    Fig 1: Removing (I/P) Compartment Lamp Switch & Electrical Connectors
    G01830842Courtesy of GENERAL MOTORS CORP.
  3. Remove the instrument panel compartment lamp switch from the instrument panel compartment.
  4. Disconnect the electrical connector from the instrument panel compartment lamp switch.
  5. Pull the bulb from the instrument panel compartment lamp switch socket.
    Fig 2: Removing Bulb From (I/P) Compartment Lamp Switch Socket
    G01830843Courtesy of GENERAL MOTORS CORP.
