Removal Procedure

  1. Remove the Steering column filler panel. Refer to Steering Column Filler Replacement .
  2. Remove the bolts/screws from the hood release handle base.

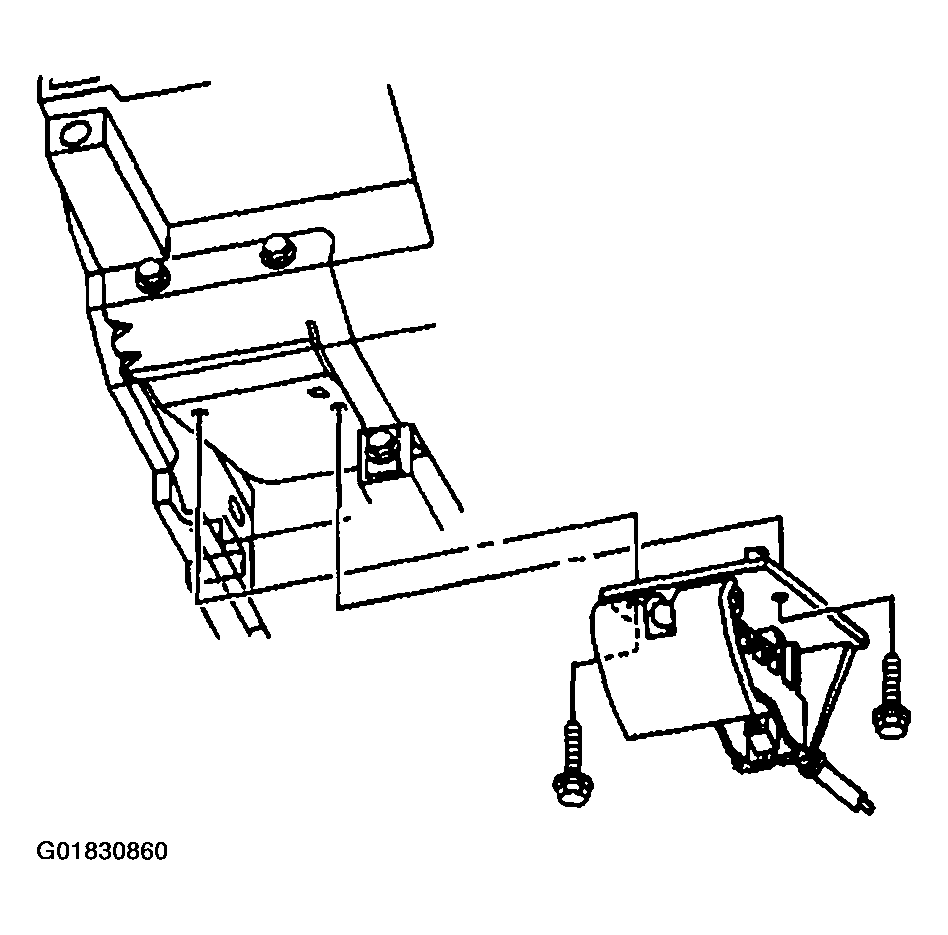

    Fig 1: Removing Bolts From Hood Release Handle Base
    G01830860Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood release cable from the hood release handle.
  4. Remove the hood release handle from the instrument panel.

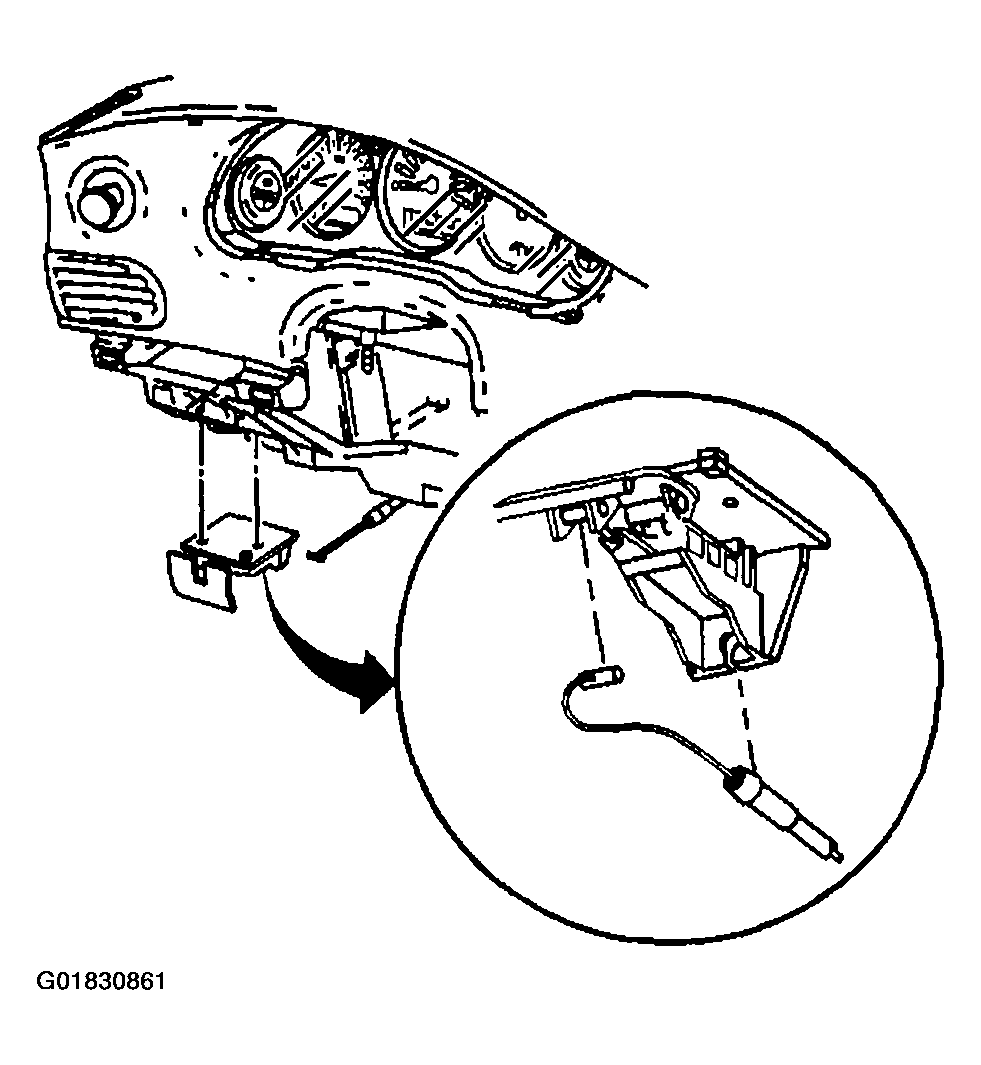

    Fig 2: Removing Hood Release Cable From Hood Release Handle
    G01830861Courtesy of GENERAL MOTORS CORP.
