Installation Procedure

  1. Install the hood release cable to the hood release handle.

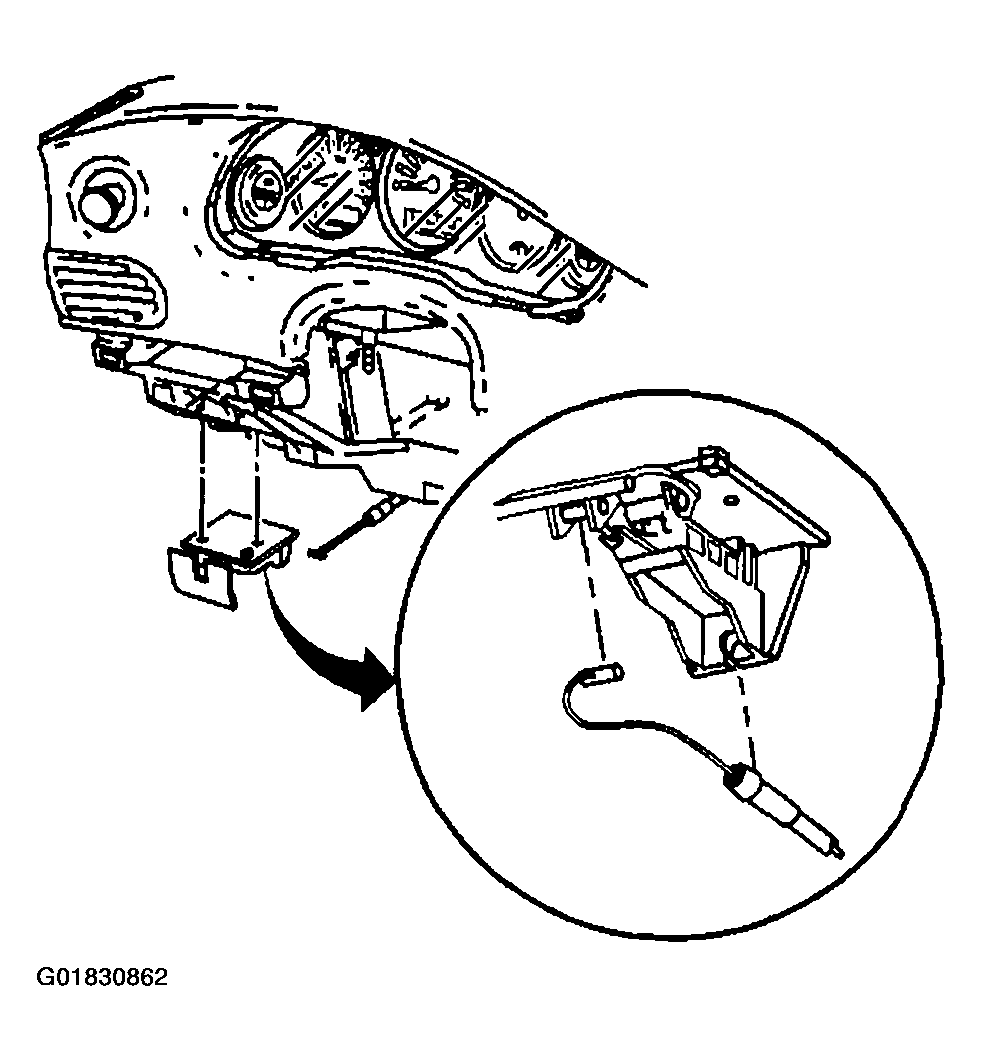

    Fig 1: Installing Hood Release Cable To Hood Release Handle
    G01830862Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release handle to the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to hood release handle base.

    Tighten

    Tighten the hood release handle base bolts to 2 N.m (18 lb in).

  4. Install the instrument panel steering column filler. Refer to Steering Column Filler Replacement .

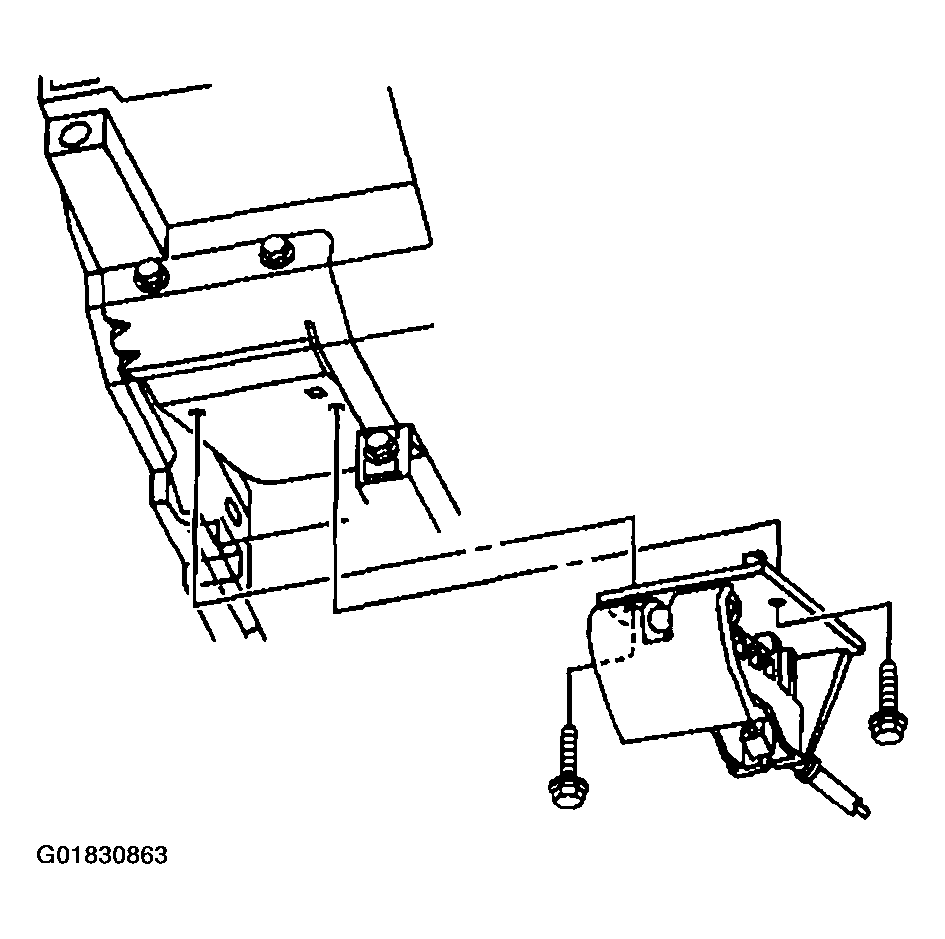

    Fig 2: Installing Bolts To Hood Release Handle Base
    G01830863Courtesy of GENERAL MOTORS CORP.
