Removal Procedure

  1. Remove the center air deflector. Refer to Deflector Replacement - Instrument Panel Air .
  2. Squeeze the retainer on the backside of hazard warning and cruise control switch.
  3. Pull the hazard warning and cruise control switch from the retainer in the instrument panel.
  4. Disconnect the electrical connectors from the hazard warning and cruise control switch.
  5. Remove the hazard warning and cruise control switch from instrument panel.

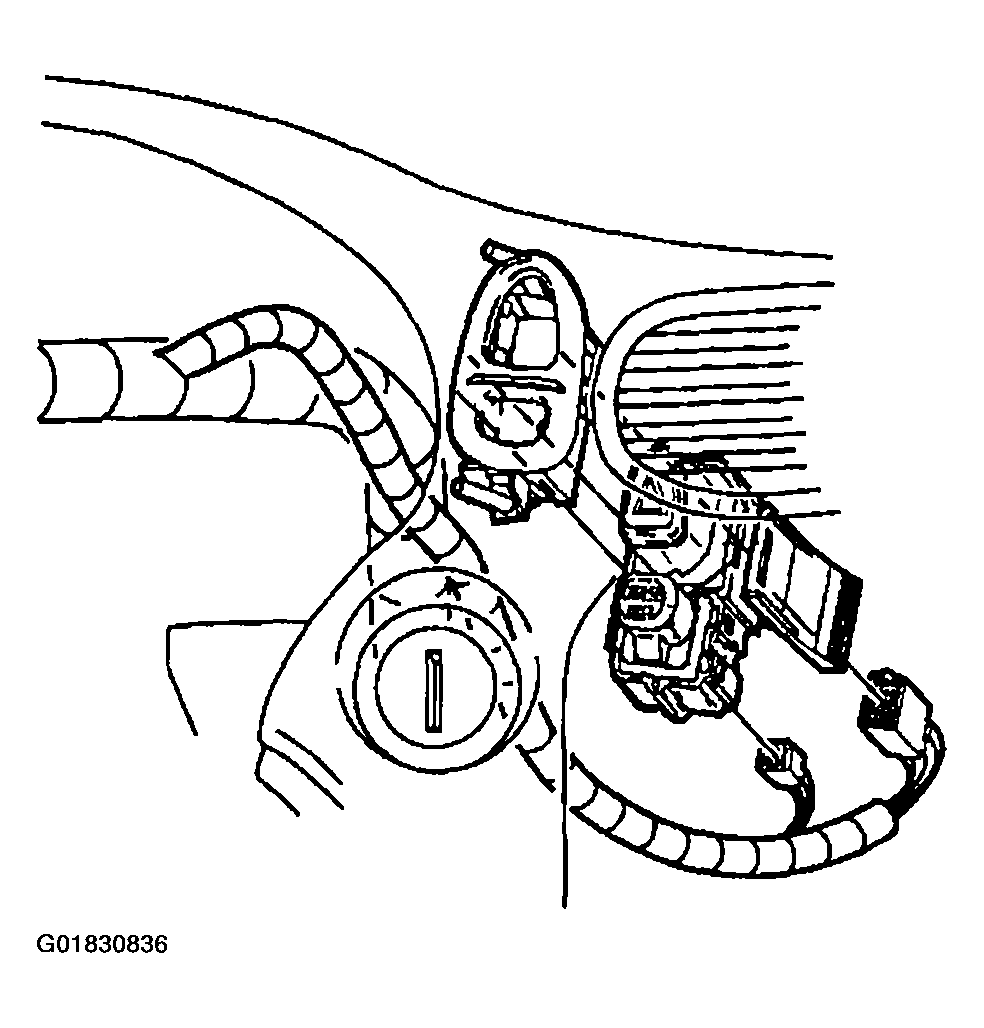

    Fig 1: Removing Hazard Warning Switch, Cruise Control Switch & Electrical Connectors
    G01830836Courtesy of GENERAL MOTORS CORP.
  6. Pull the hazard warning and cruise control switch bezel from the instrument panel trim pad.

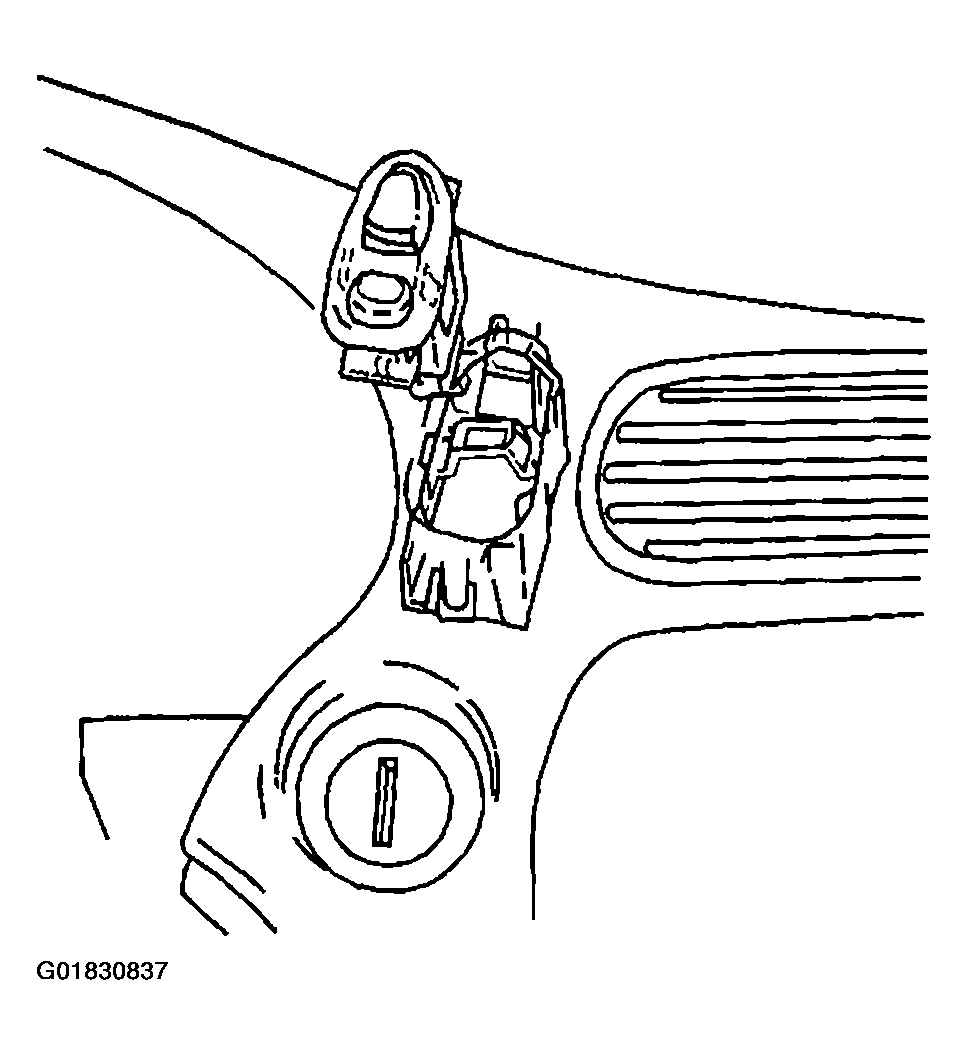

    Fig 2: Pulling Hazard Warning & Cruise Control Switch Bezel From (I/P)
    G01830837Courtesy of GENERAL MOTORS CORP.
