Installation Procedure

  1. Press the hazard warning and cruise control switch bezel to the instrument panel.

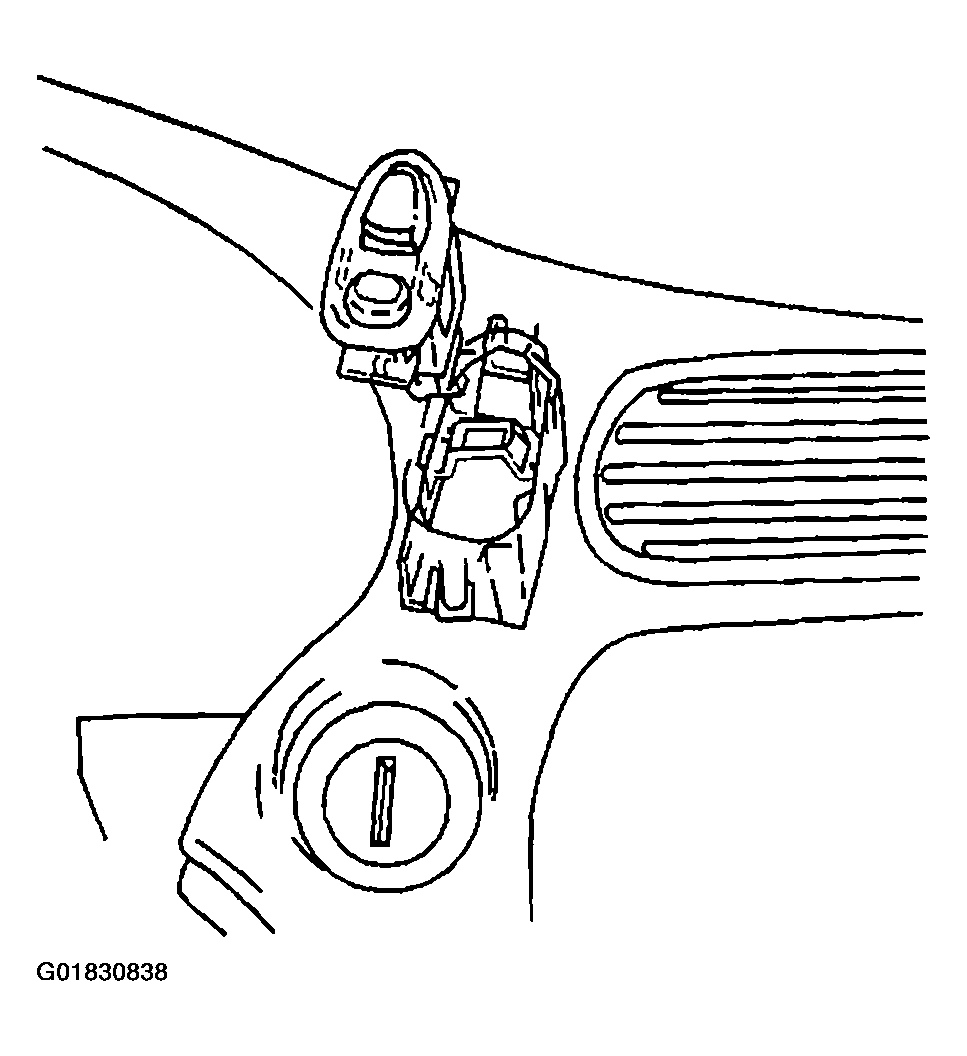

    Fig 1: Installing Hazard Warning & Cruise Control Switch Bezel To (I/P)
    G01830838Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the hazard warning and cruise control switch.
  3. Press the hazard warning and cruise control switch into the retainer. The switches will snap into position.
  4. Install the center air deflector. Refer to Deflector Replacement - Instrument Panel Air .

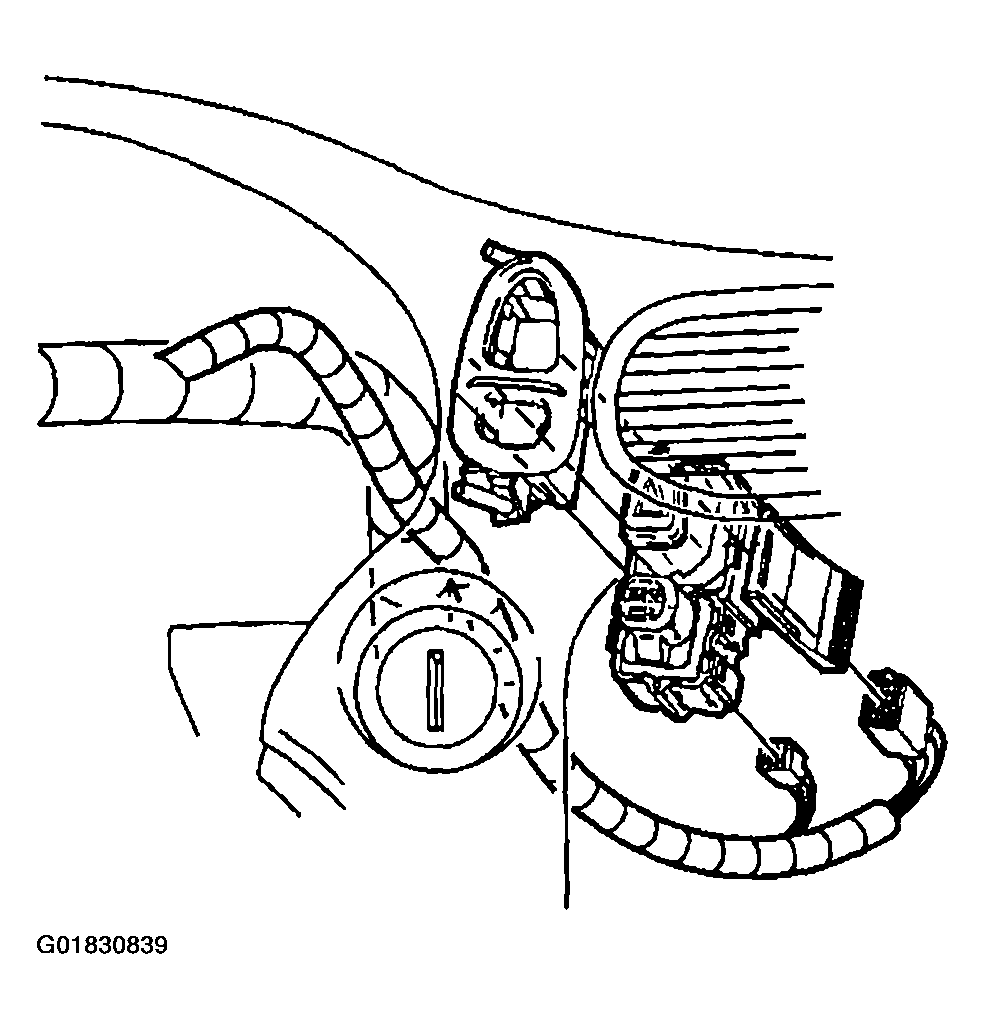

    Fig 2: Installing Hazard Warning Switch, Cruise Control Switch & Electrical Connectors
    G01830839Courtesy of GENERAL MOTORS CORP.
