Removal Procedure

  1. Release the instrument panel (I/P) outer air outlet deflector by inserting a small flat-bladed tool to the center upper position of the air outlet deflector.

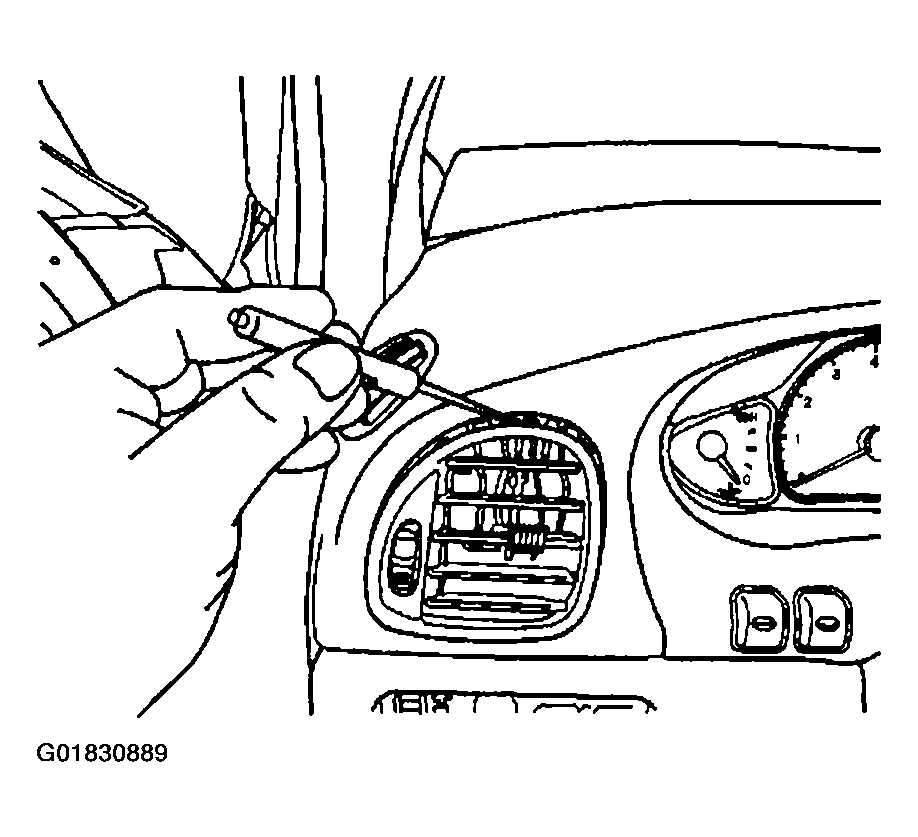

    Fig 1: Releasing IP Air Outlet Deflector
    G01830889Courtesy of GENERAL MOTORS CORP.
  2. Pull the air outlet deflector from the I/P.

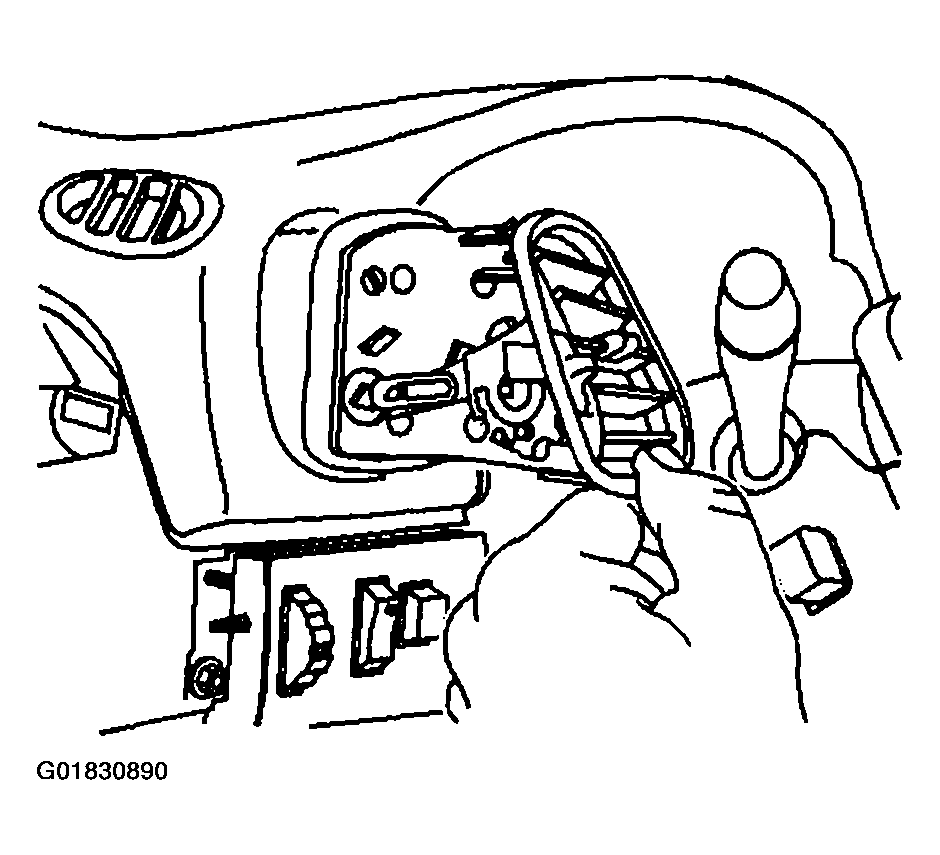

    Fig 2: Pulling Air Outlet Deflector From IP
    G01830890Courtesy of GENERAL MOTORS CORP.
