Installation Procedure

  1. Position the air outlet deflector to the I/P.

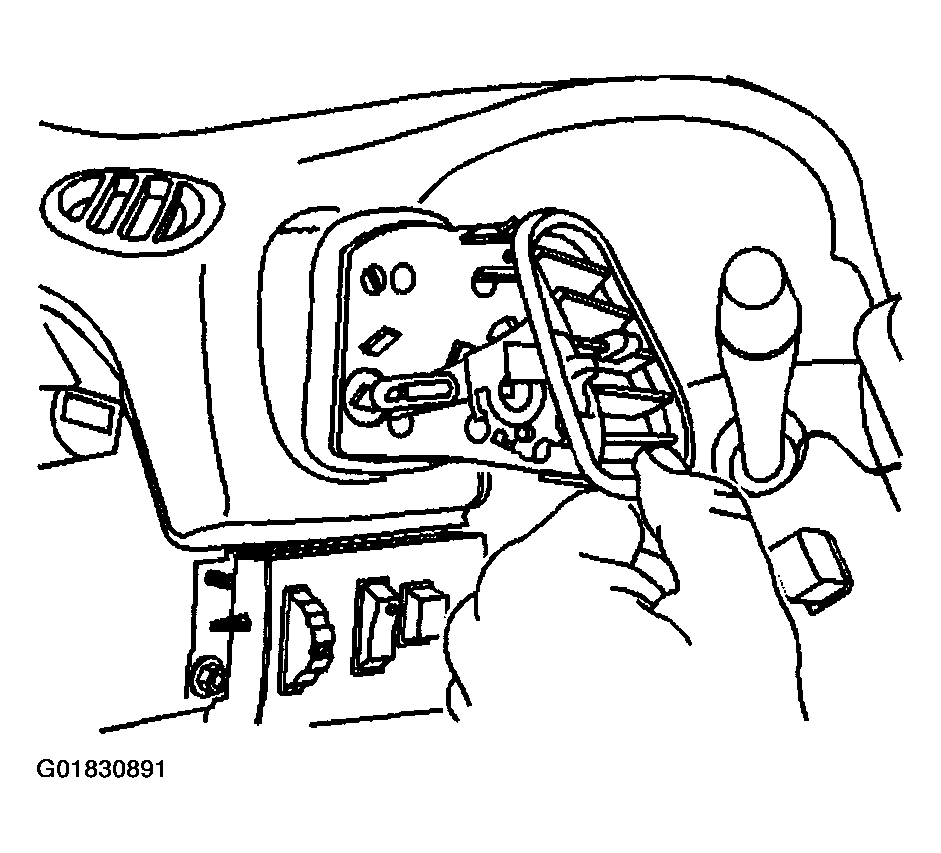

    Fig 1: Installing Air Outlet Deflector To IP
    G01830891Courtesy of GENERAL MOTORS CORP.
  2. Press the air outlet deflector into place until the retainers are fully seated.
  3. Inspect the air outlet deflector for proper operation.

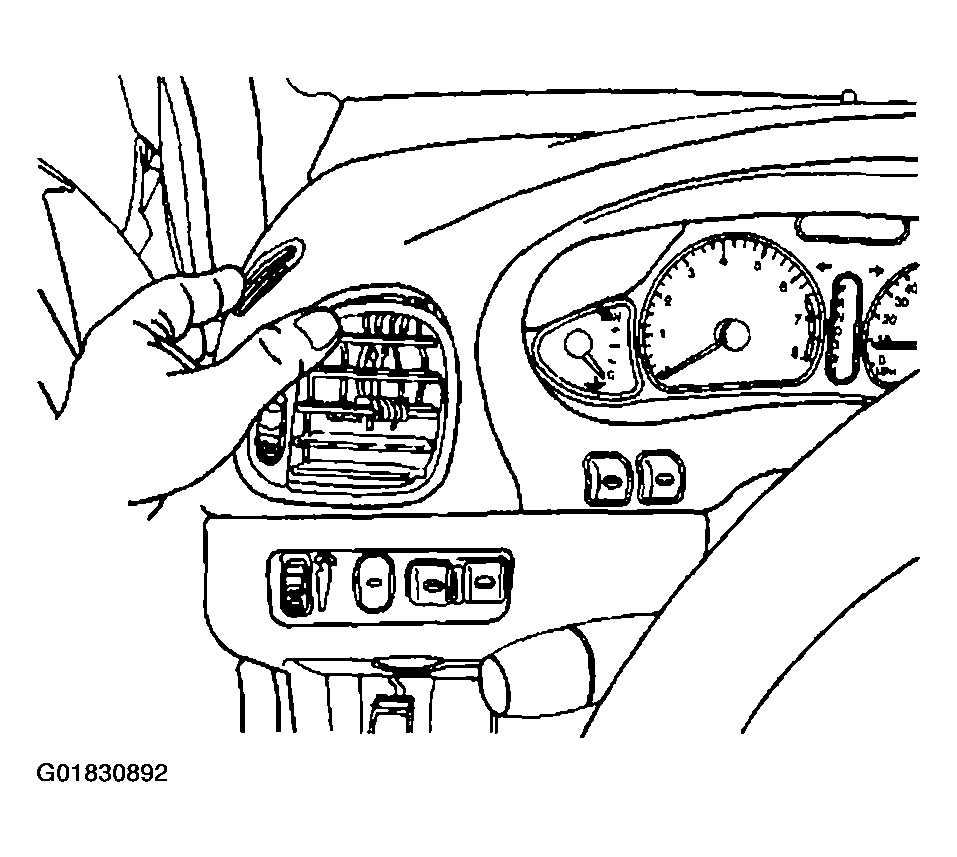

    Fig 2: Pressing Air Outlet Defector Into Place
    G01830892Courtesy of GENERAL MOTORS CORP.
