Removal Procedure

  1. Remove the radio. Refer to RADIO REPLACEMENT .
  2. Reach through the radio opening and push the retainers up towards the roof of the vehicle. When the retainers release, slide the instrument panel (I/P) center air outlet deflector out of the I/P opening.

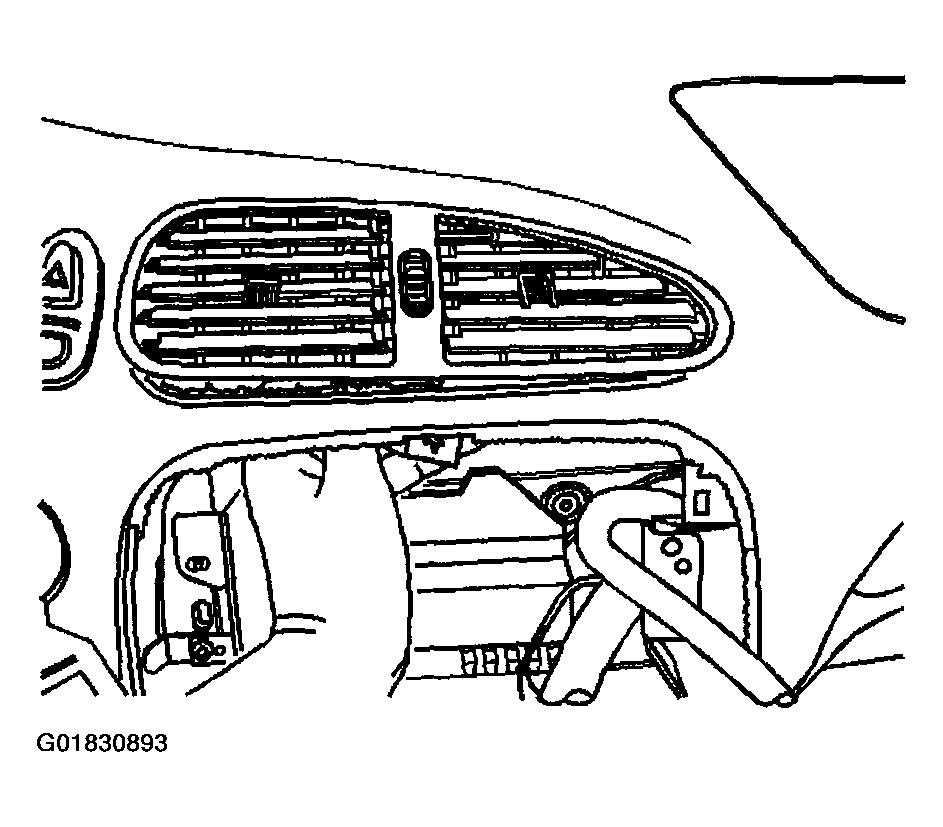

    Fig 1: Releasing Retainers & Sliding IP Center Air Outlet Deflector Out Of IP Opening
    G01830893Courtesy of GENERAL MOTORS CORP.
  3. Remove the air outlet deflector.

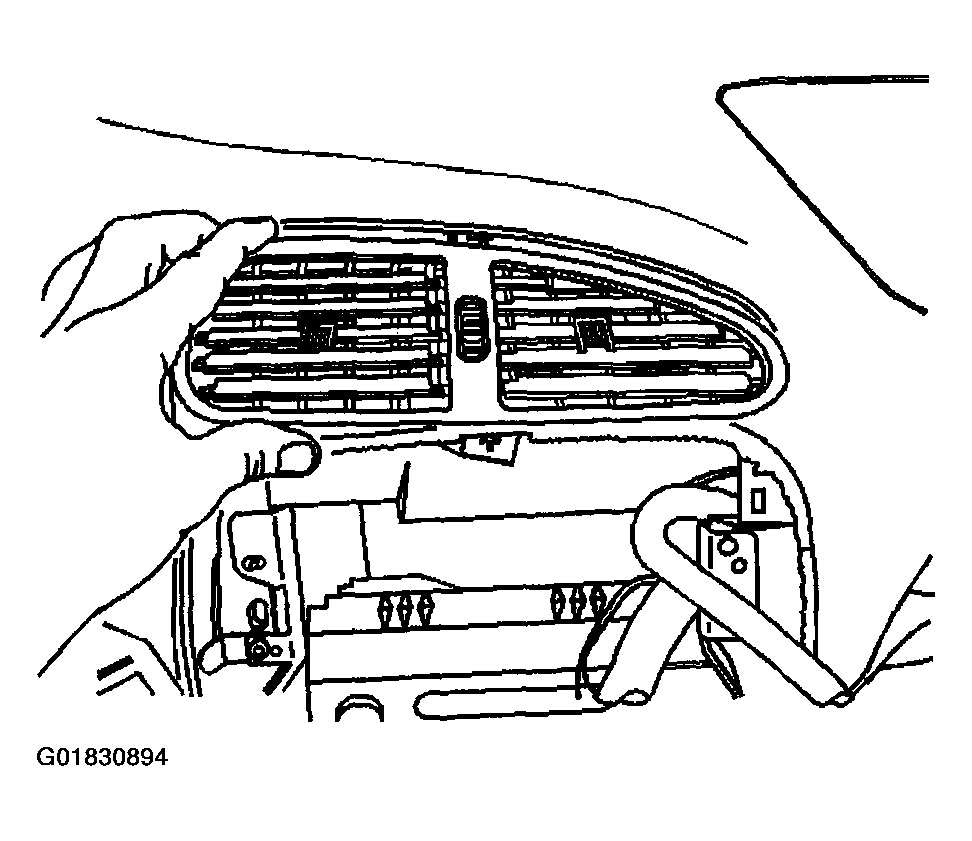

    Fig 2: Removing Air Outlet Deflector
    G01830894Courtesy of GENERAL MOTORS CORP.
