Installation Procedure

  1. Position the air outlet deflector into the opening.
  2. Install the air outlet deflector by pressing in until the retainers are fully seated.
  3. Install the radio. Refer to RADIO REPLACEMENT .

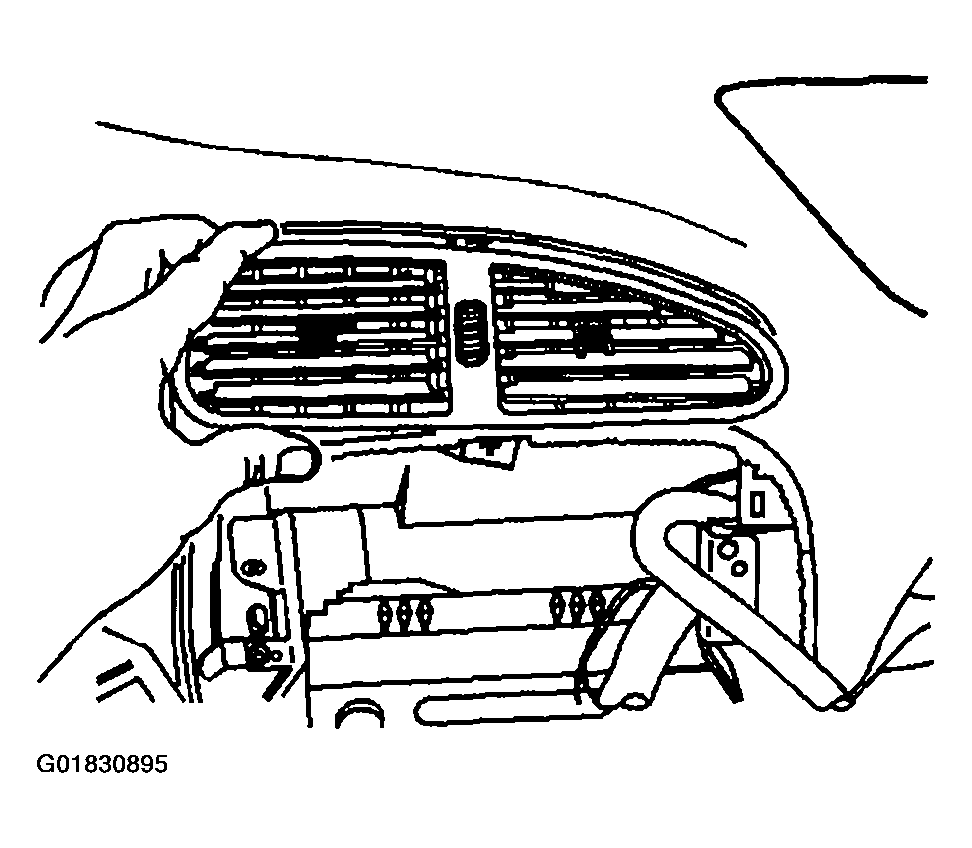

    Fig 1: Installing Air Outlet Deflector
    G01830895Courtesy of GENERAL MOTORS CORP.
