Installation Procedure

Install the spring to the front floor console, by inserting the spring up into the slot.

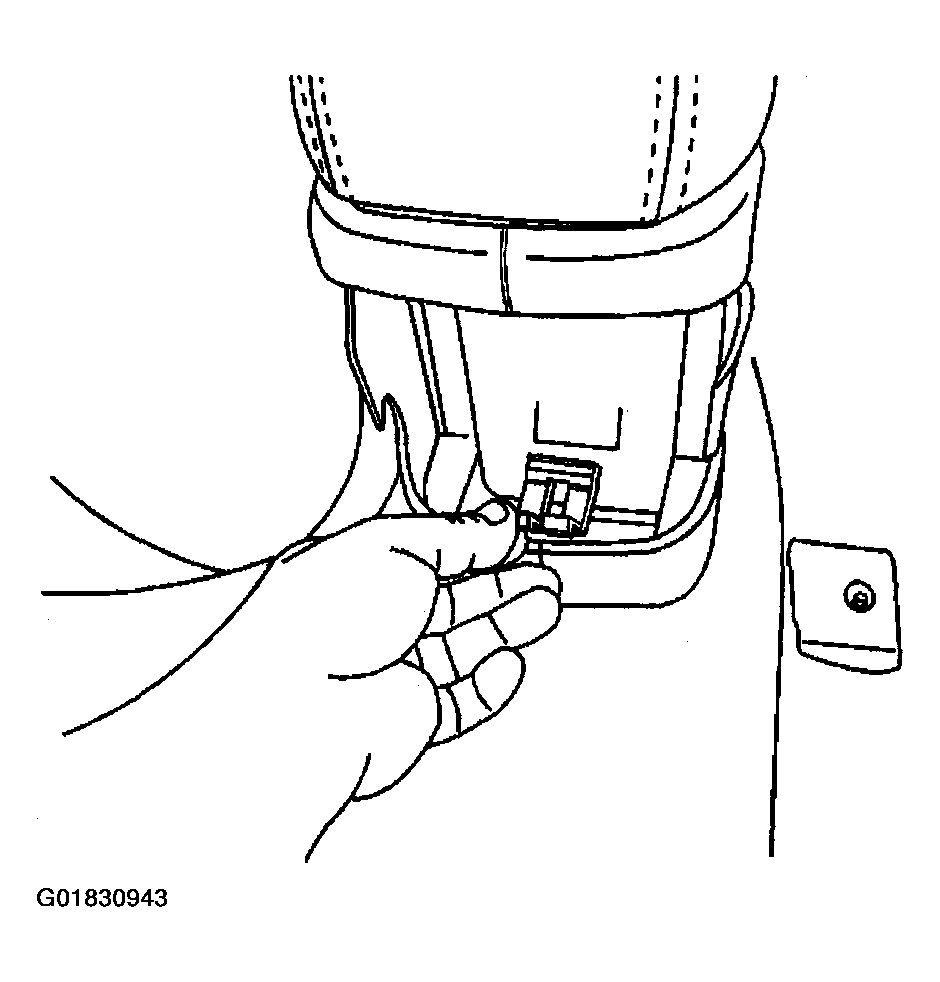

Fig 1: Installing Spring To Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Insert a flat-bladed tool under the spring and lift the spring up to allow space for the cupholder.
Position the left side pivot pin of the rear cupholder into the pivot point in the front floor console.
Press the rear cupholder to the left making enough space to insert the right side into the right pivot point.
Release the spring and remove the flat-bladed tool.
Inspect the rear cupholder for proper operation.

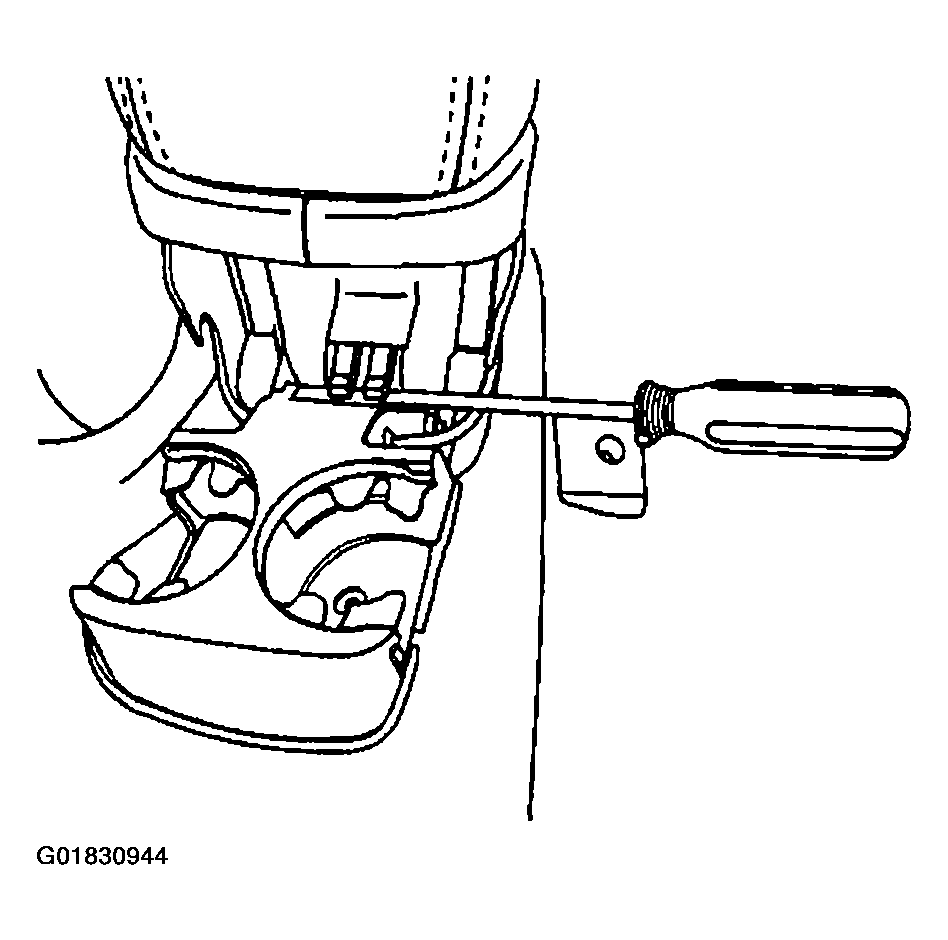

Fig 2: Installing Rear Cupholder & Pivot Pin
Courtesy of GENERAL MOTORS CORP.
