Removal Procedure

  1. Remove the front floor console trim plate. Refer to Trim Plate Replacement - Front Floor Console .
  2. Remove console shifter control trim plate bolts.

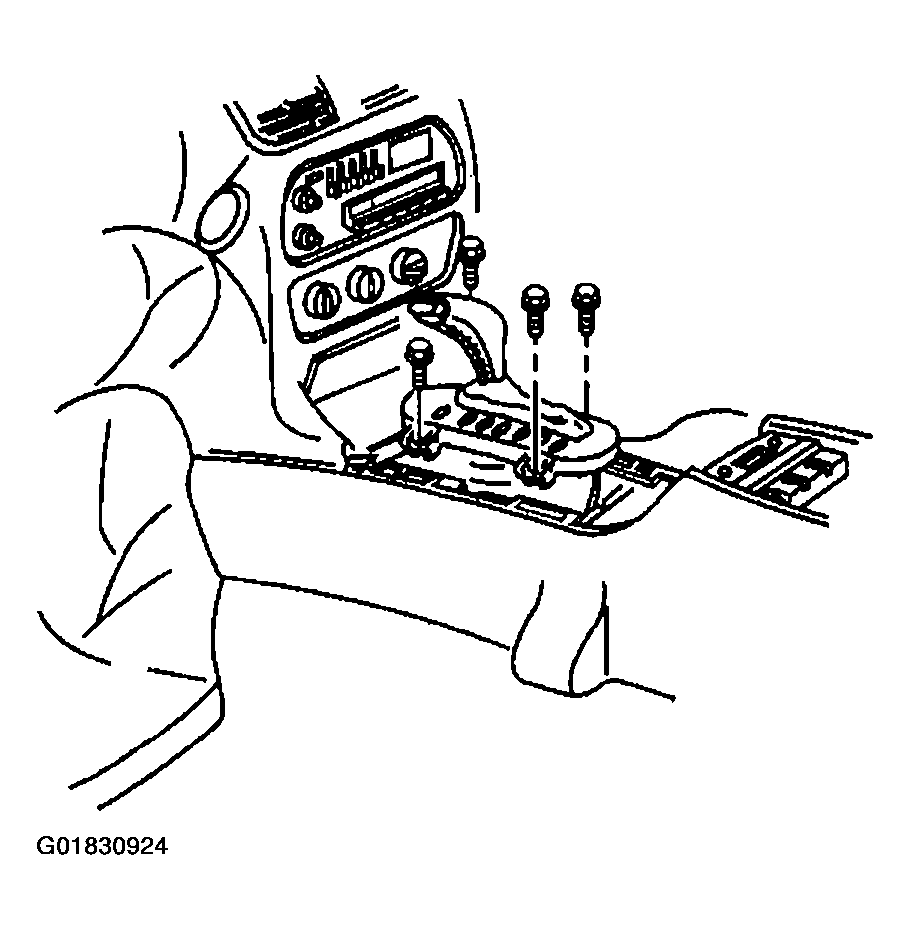

    Fig 1: Removing Front Floor Console Trim Plate & Bolts
    G01830924Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the required electrical connectors.
  4. Remove the screws from the front floor console mounting bracket at the rear of the transaxle shift lever.
  5. Open the front floor console armrest.
  6. Remove the mat from the front floor console storage compartment.
  7. Remove the screws from the front floor console mounting bracket at the rear storage compartment base.
  8. Remove the screws from the front floor console mounting at the front mounting point.
  9. Pull the front floor console rearward, up and out.
  10. Remove the front floor console from the vehicle.

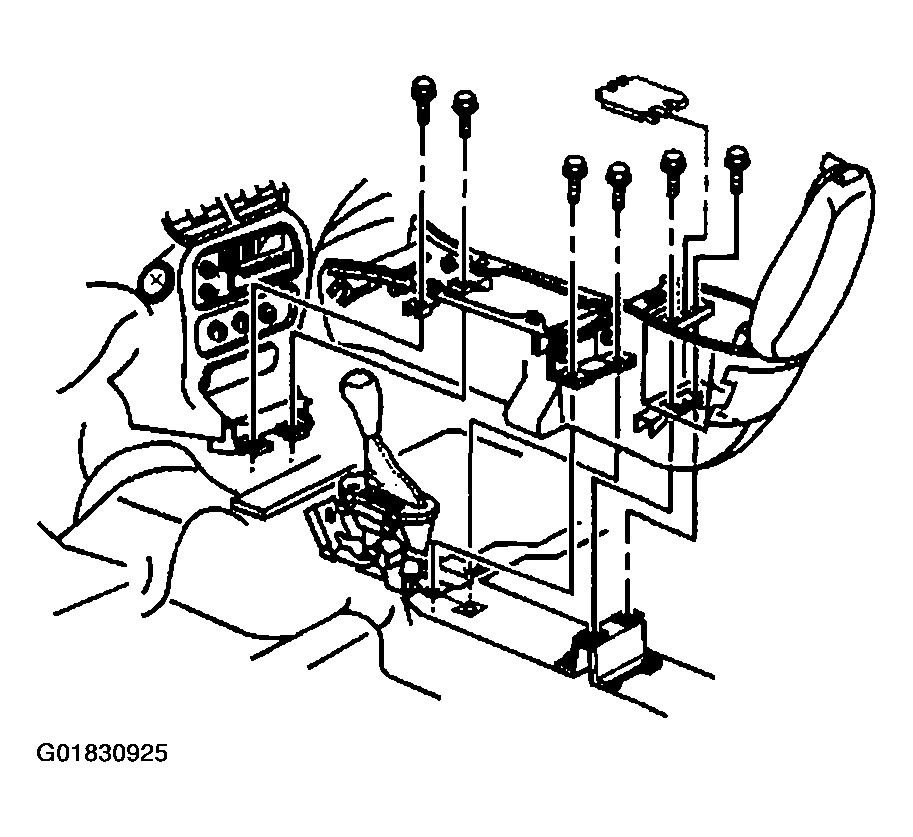

    Fig 2: Removing Front Floor Console, Electrical Connectors & Screws
    G01830925Courtesy of GENERAL MOTORS CORP.
