Installation Procedure

  1. Align the front floor console to the floor.
  2. Connect the required electrical connectors.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the front floor console mounting bracket at the rear of the storage compartment base.

    Tighten

    Tighten the front floor console rear of storage compartment base screws to 6 N.m (53 lb in).

  4. Install the screws to the front floor console mounting bracket at the rear of the transaxle shift lever.

    Tighten

    Tighten the front floor console rear of transaxle shift lever screws to 6 N.m (53 lb in).

  5. Install the screws to the front floor console at the front mounting point.

    Tighten

    Tighten the front floor console front mounting point screws to 6 N.m (53 lb in).

  6. Install the mat to the front floor console storage compartment.

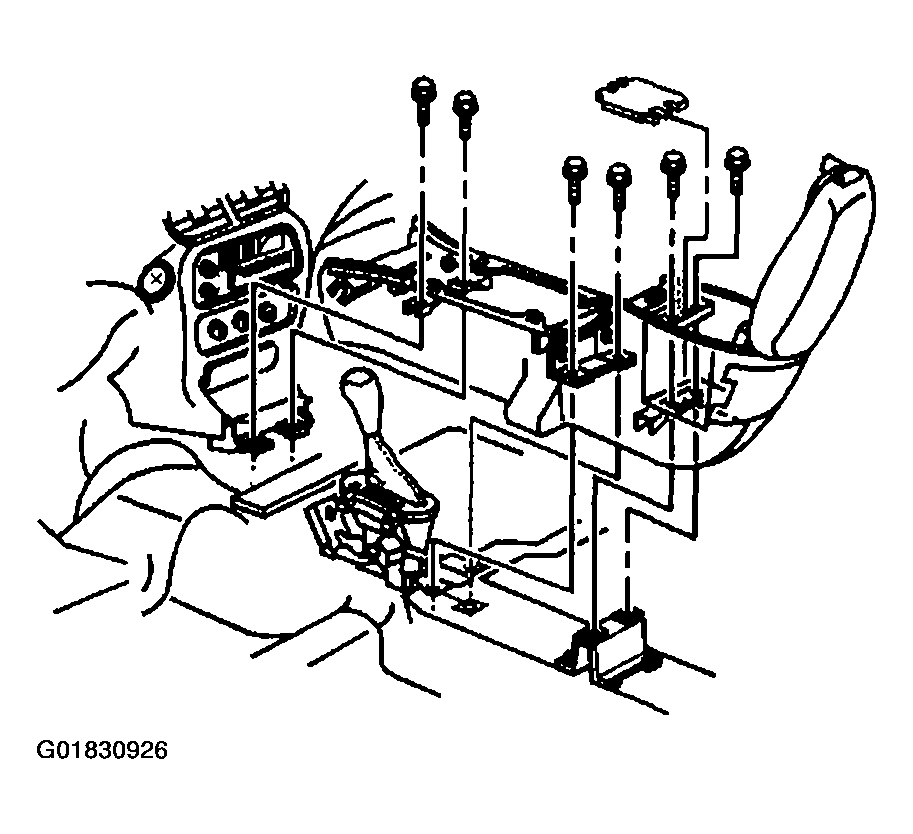

    Fig 1: Installing Front Floor Console, Electrical Connectors & Screws
    G01830926Courtesy of GENERAL MOTORS CORP.
  7. Install console shifter control trim plate bolts.

    Tighten

    Tighten the console shift control trim plate bolts to 20 N.m (15 lb ft).

  8. Install the front floor console trim plate. Refer to Trim Plate Replacement - Front Floor Console .
  9. Close the front floor console armrest.

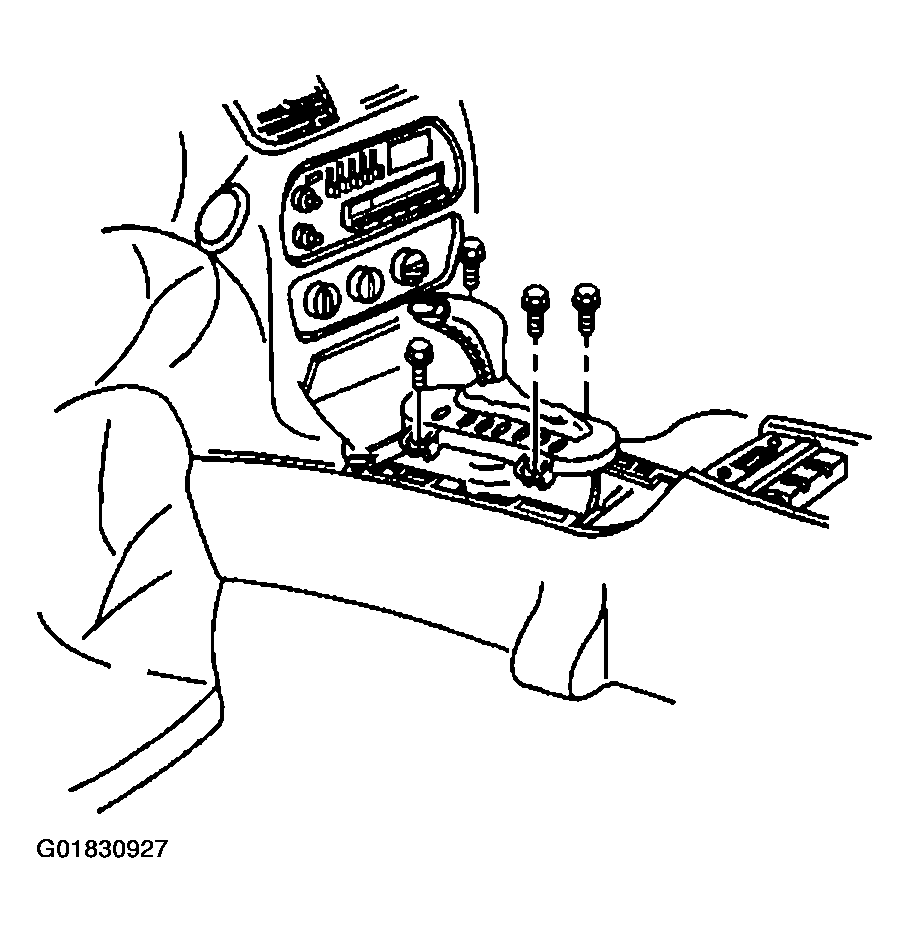

    Fig 2: Installing Front Floor Console Trim Plate & Bolts
    G01830927Courtesy of GENERAL MOTORS CORP.
