Removal Procedure

  1. Open the front floor console armrest.
  2. Remove the screws from the front floor console armrest hinge.
  3. Remove the front floor console armrest from the front floor console.

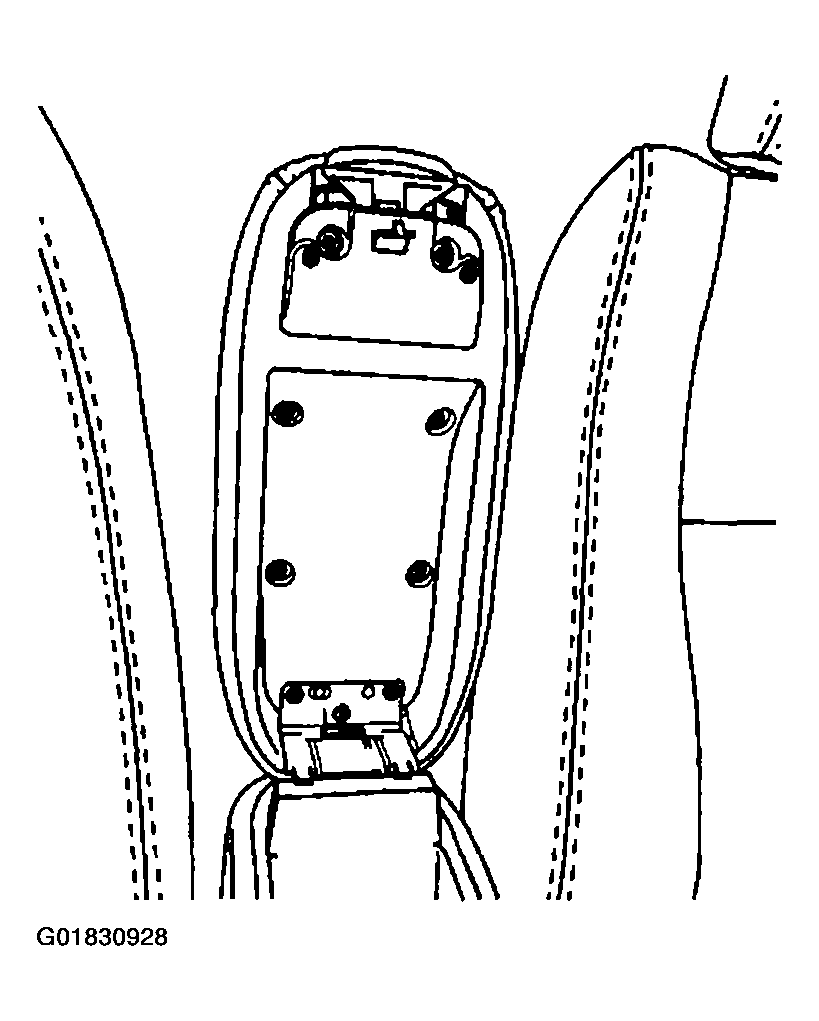

    Fig 1: Removing Front Floor Console Armrest & Screws
    G01830928Courtesy of GENERAL MOTORS CORP.
