Installation Procedure

  1. Install the front floor console armrest to the hinge at front floor console.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the front floor console armrest hinge.

    Tighten

    Tighten the front floor console armrest screws to 2 N.m (18 lb in).

  3. Close the front floor console armrest.

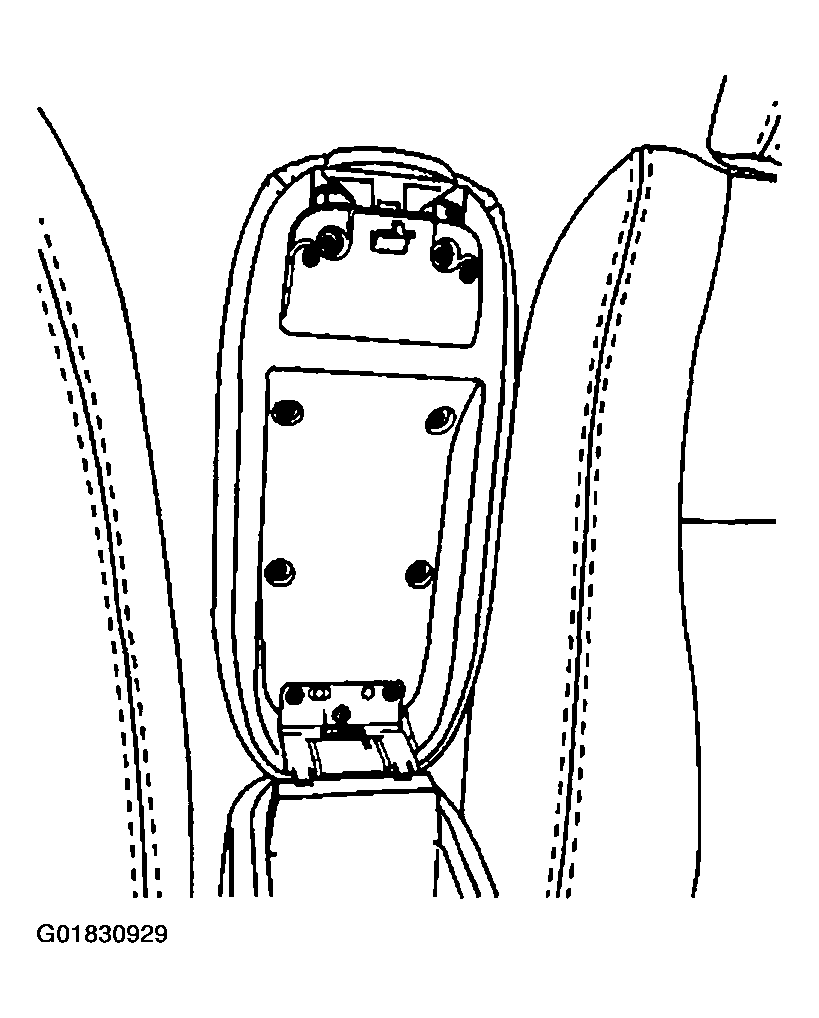

    Fig 1: Installing Front Floor Console Armrest & Screws
    G01830929Courtesy of GENERAL MOTORS CORP.
