Removal Procedure

  1. Open the instrument panel compartment.
  2. Remove the bolts/screws from the instrument panel compartment hinge.
  3. Turn the instrument panel compartment door stops 1/4 turn.
  4. Loosen the screw that attaches the damper string.
  5. Remove the loop of the damper string from the screw
  6. Remove the instrument panel compartment from the instrument panel.

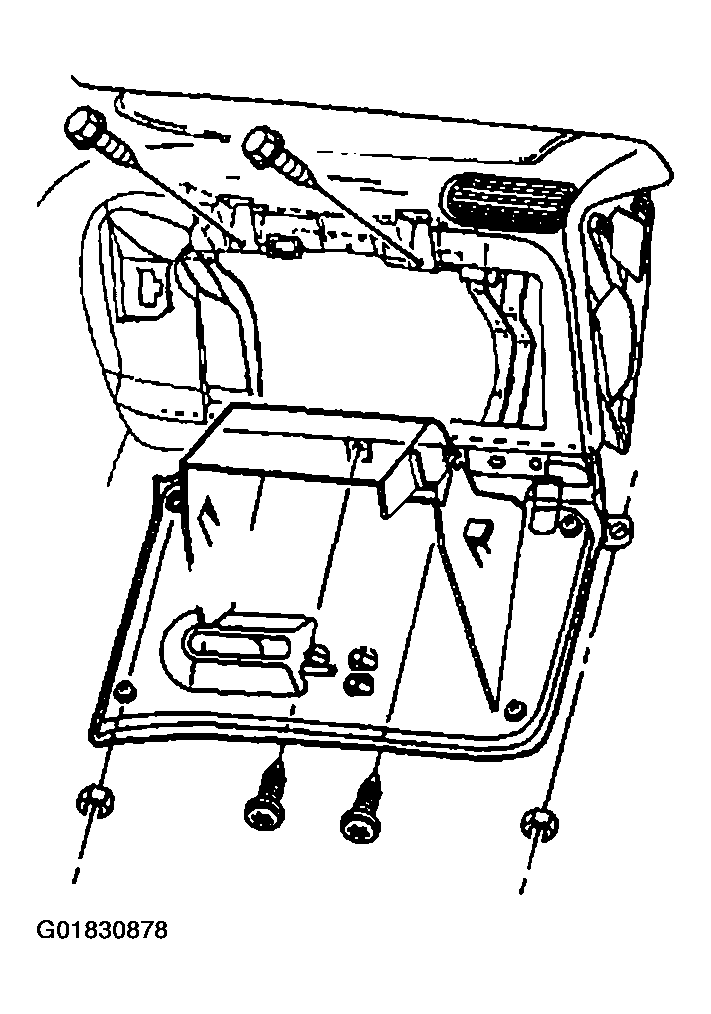

    Fig 1: Removing Instrument Panel Compartment & Bolts
    G01830878Courtesy of GENERAL MOTORS CORP.
