Installation Procedure

  1. Align the instrument panel compartment to the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the instrument panel compartment hinge.

    Tighten

    Tighten the instrument panel compartment hinge bolts to 4 N.m (35 lb in).

  3. Install the instrument panel compartment door stops into each side of the instrument panel.
  4. Turn the instrument panel compartment door stops 1/4 turn until fully seated.
  5. Install the loop of the instrument panel compartment door damper string to the screw.
  6. Tighten the screw to instrument panel compartment door damper string.

    Tighten

    Tighten the instrument panel compartment door retractor cord bolt to 2 N.m (18 lb in).

  7. Close the instrument panel compartment.

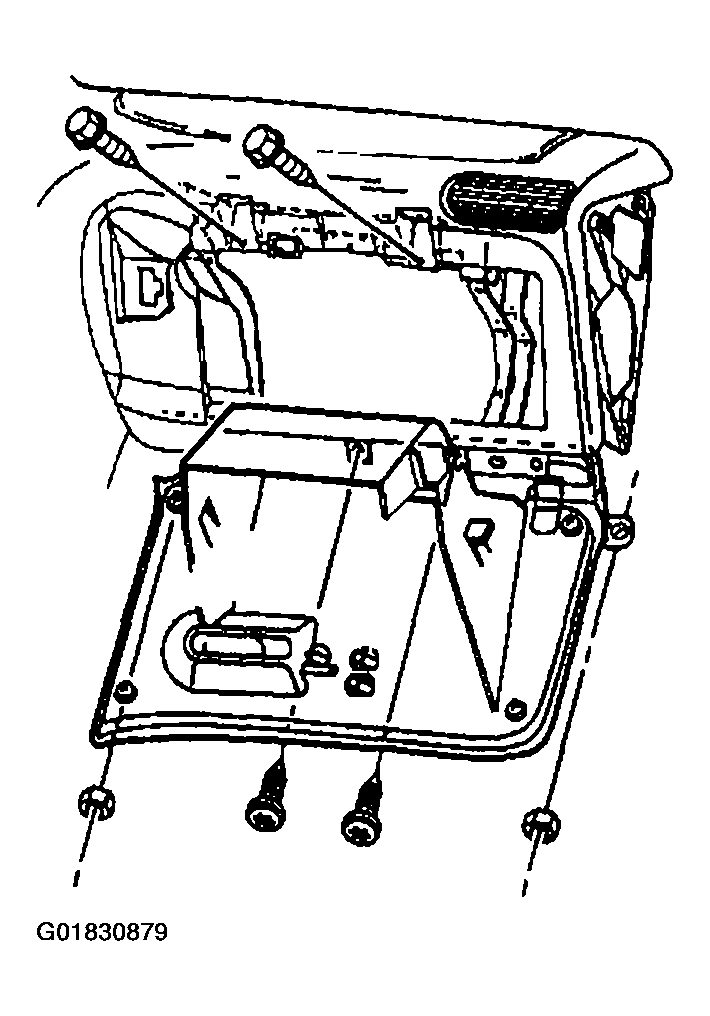

    Fig 1: Installing Instrument Panel Compartment & Bolts
    G01830879Courtesy of GENERAL MOTORS CORP.
