Installation Procedure

  1. Position the right side insulator to the floorpan beneath the instrument panel.
  2. Install the courtesy lamp to the insulator. Secure the lamp by rotating 1/4 turn clockwise.

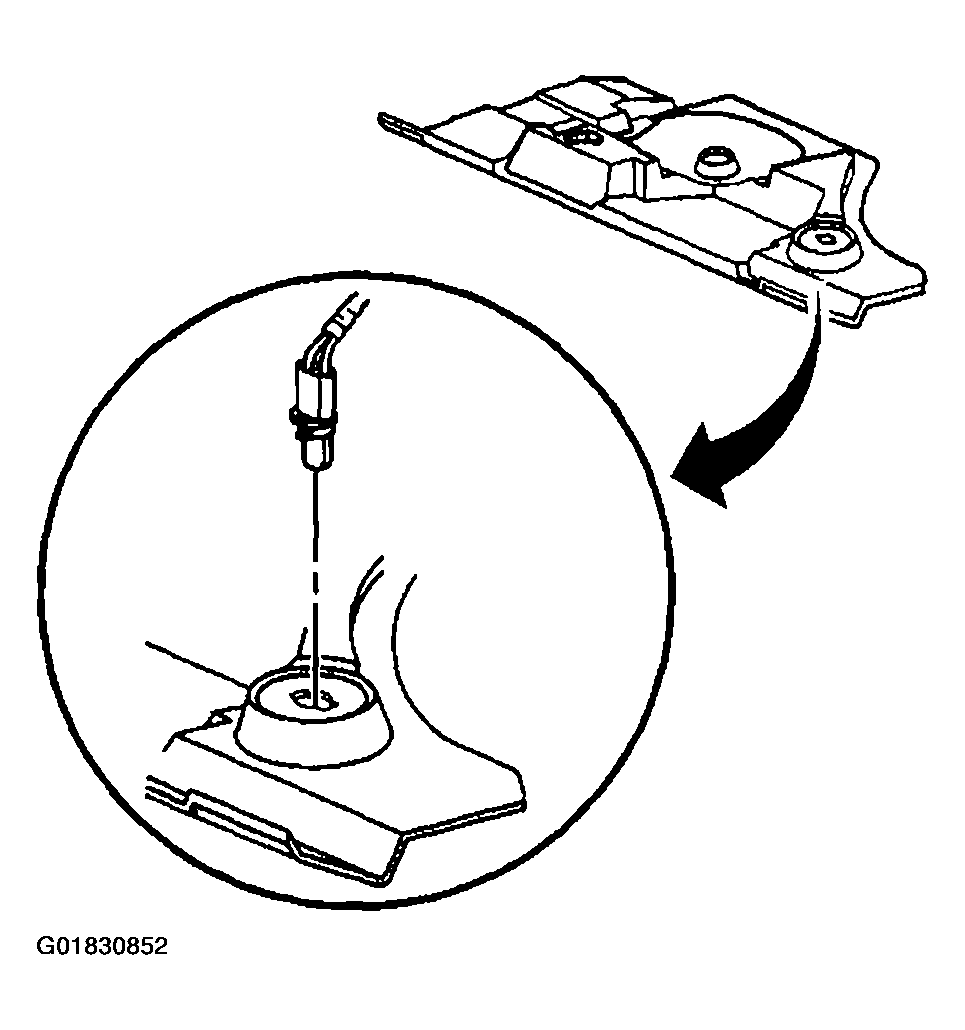

    Fig 1: Installing Courtesy Lamp To Insulator
    G01830852Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not block the floor heater outlet with the IP insulator.
  3. Install the right side insulator retainers.
  4. Return the carpet to the original position.
    Fig 2: Installing Right Side Insulator Retainers
    G01830853Courtesy of GENERAL MOTORS CORP.
