Removal Procedure

Use the J 38778 to remove the left side insulator retainers.

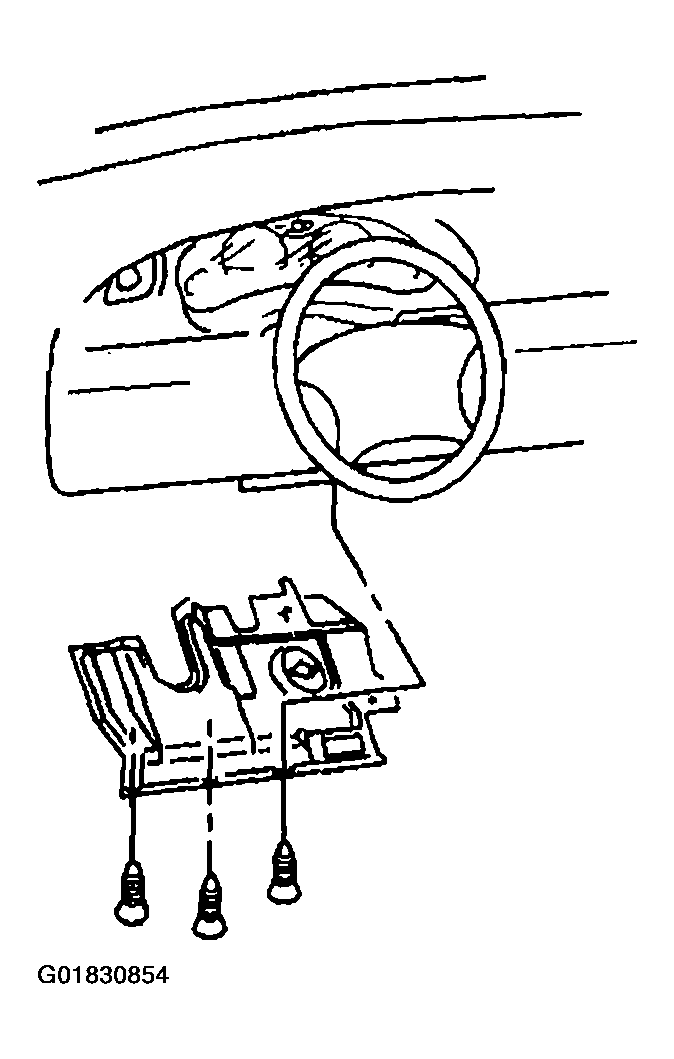

Fig 1: Removing Left Side Insulator Retainers Using J 38778
Courtesy of GENERAL MOTORS CORP.
Disconnect the courtesy lamp from the IP insulator. Turn the lamp 1/4 turn counterclockwise.

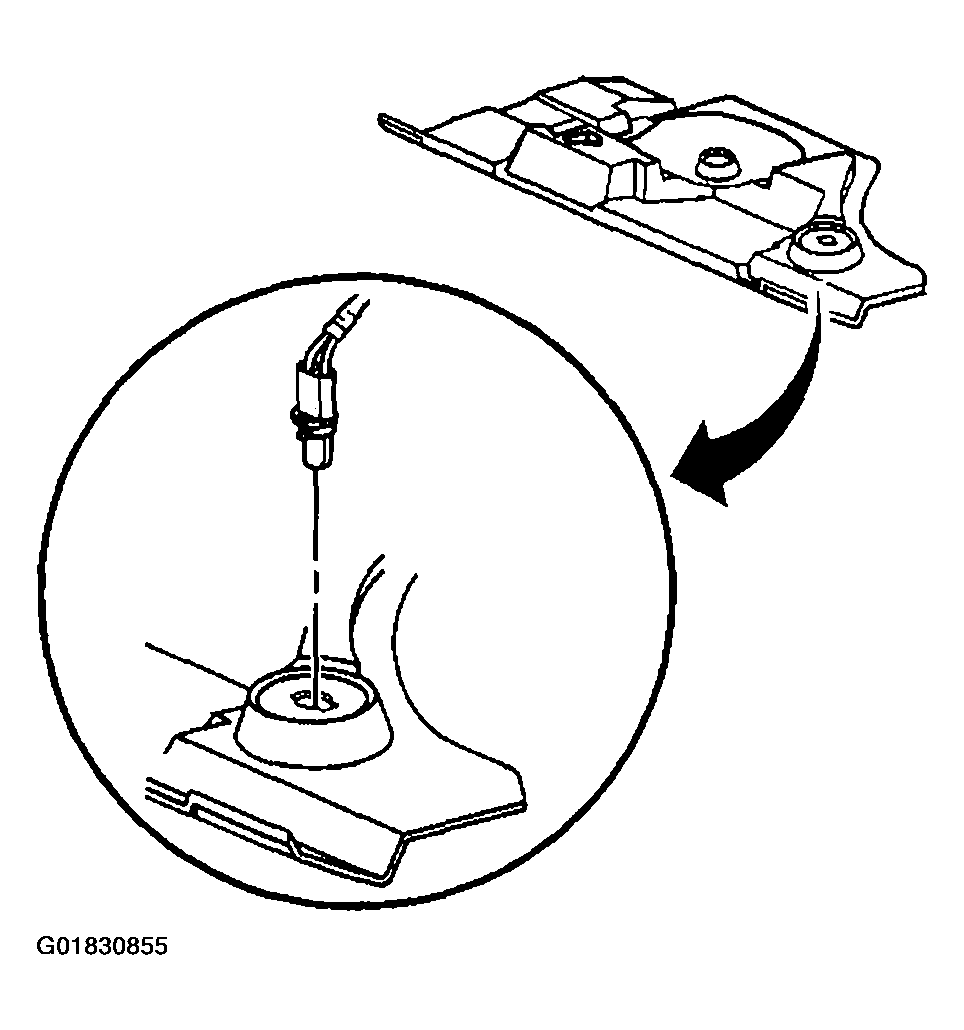

Fig 2: Removing Courtesy Lamp From IP Insulator
Courtesy of GENERAL MOTORS CORP.
Remove the left side insulator from the stud at the accelerator pedal.
Remove the left side insulator.

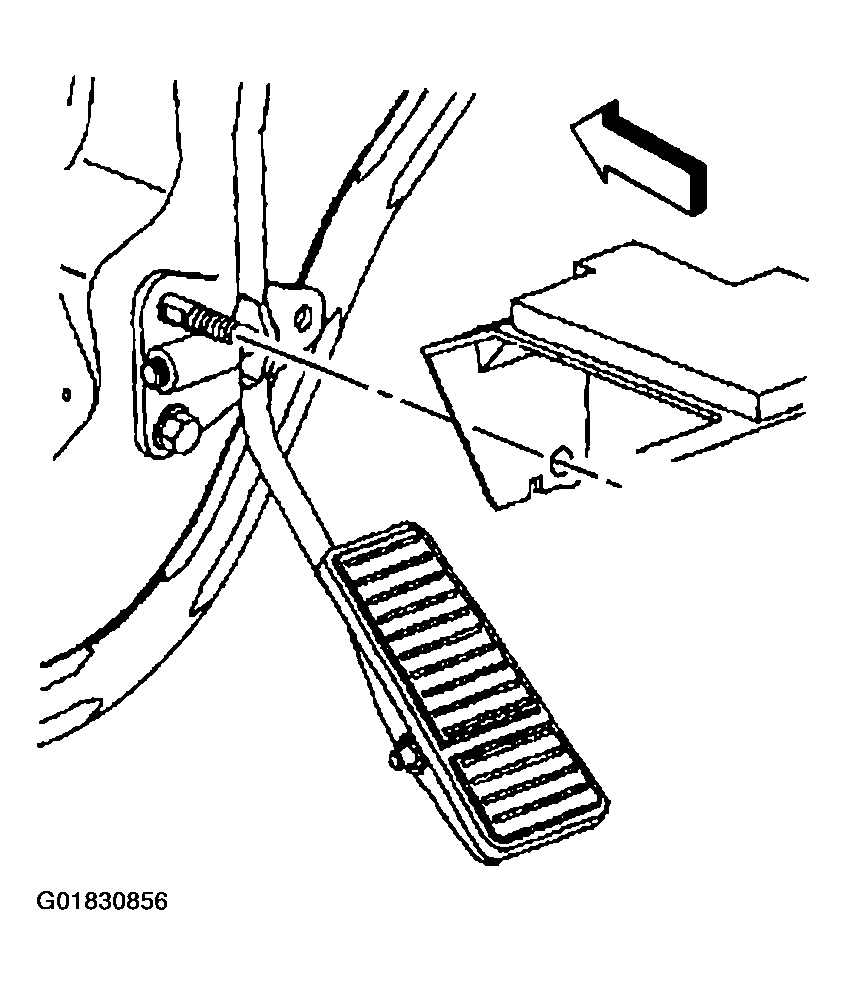

Fig 3: Removing Left Side Insulator From Stud At Accelerator Pedal
Courtesy of GENERAL MOTORS CORP.
