Installation Procedure

  1. Position the left side insulator to the instrument panel.
  2. Install the courtesy lamp to the insulator. Secure the lamp by rotating 1/4 turn clockwise.

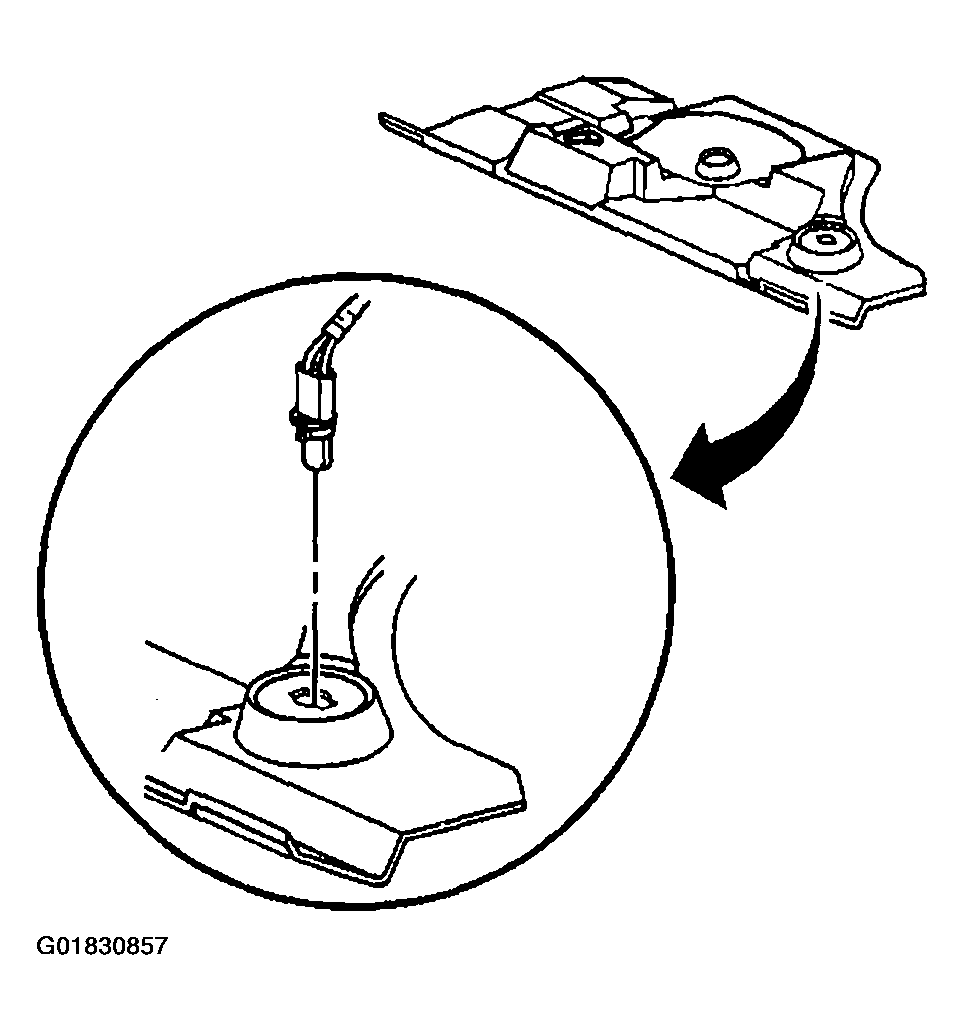

    Fig 1: Installing Courtesy Lamp To Insulator
    G01830857Courtesy of GENERAL MOTORS CORP.
  3. Install the LH instrument panel insulator to the stud at the accelerator pedal.

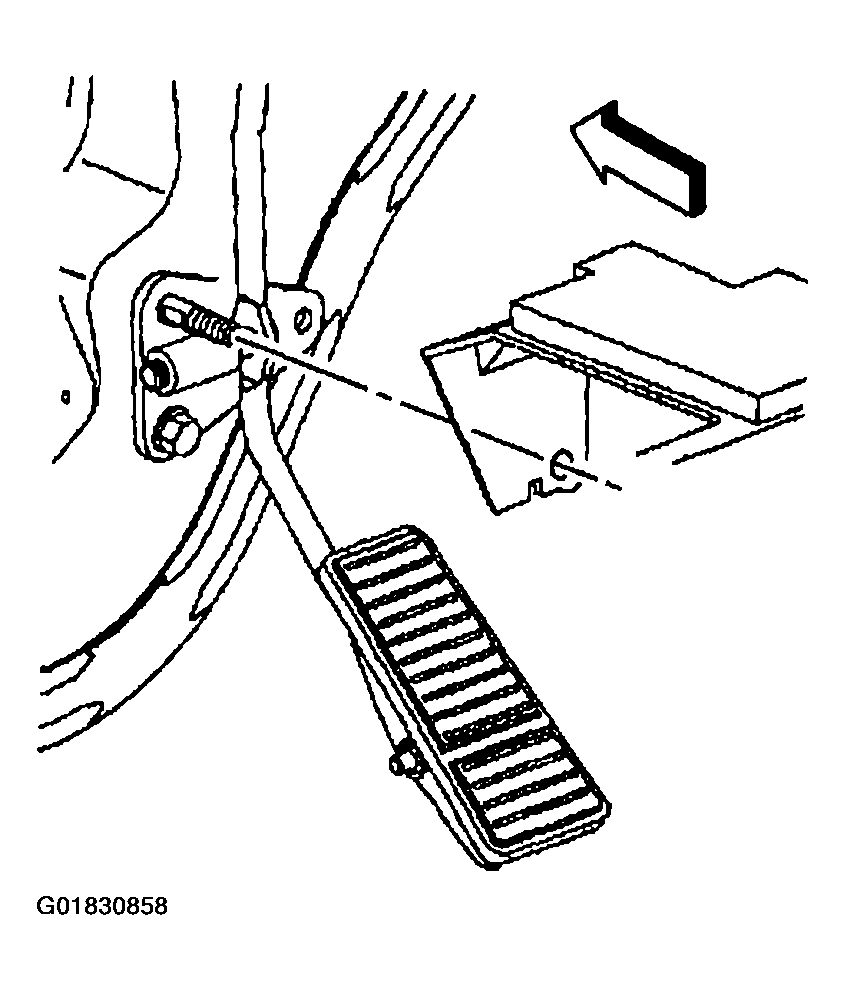

    Fig 2: Installing Left Side Insulator From Stud At Accelerator Pedal
    G01830858Courtesy of GENERAL MOTORS CORP.
  4. Install the left side insulator retainers.

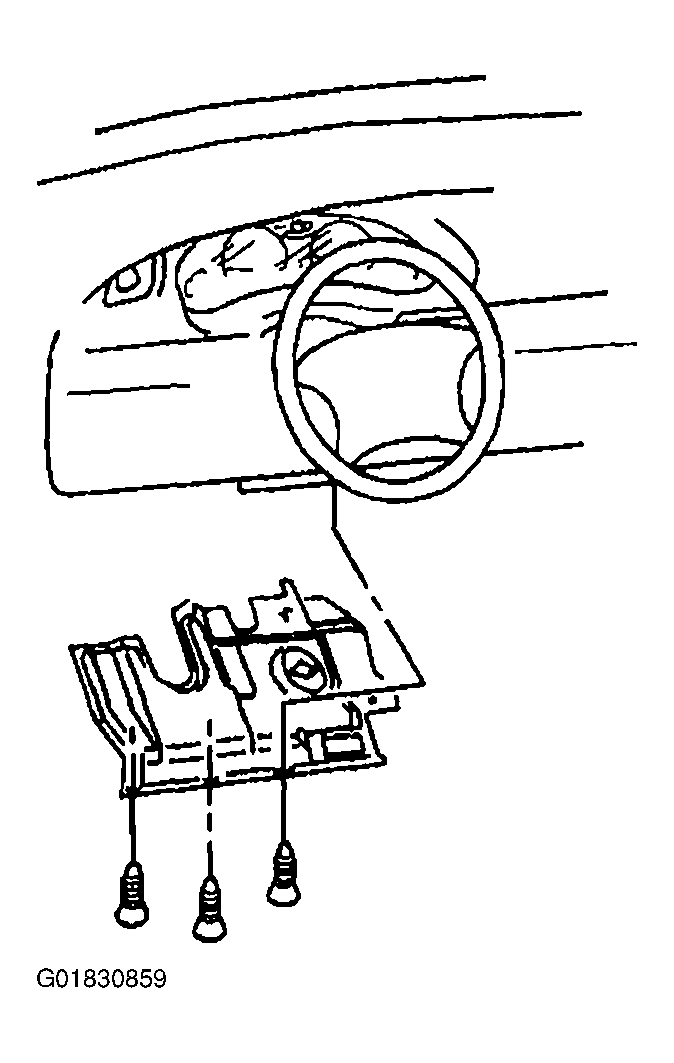

    Fig 3: Installing Left Side Insulator Retainers
    G01830859Courtesy of GENERAL MOTORS CORP.
