Removal Procedure

  1. Remove the cigarette lighter fuse.
  2. Remove the cigarette lighter element.
  3. Position the shift lever to the low position.

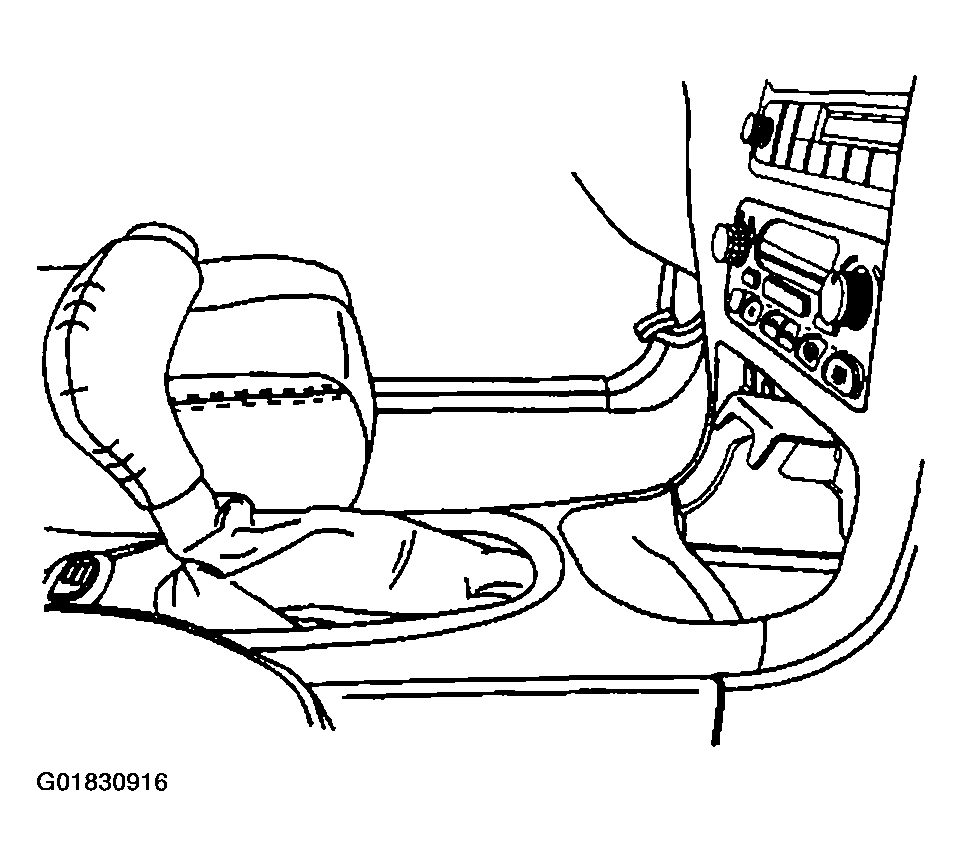

    Fig 1: Removing Cigarette Lighter Fuse & Element
    G01830916Courtesy of GENERAL MOTORS CORP.
  4. Remove the cigarette lighter socket by placing one side of the "T" portion of the tool J 42059  into the tab window and then the other should be angled into the opposite tab window, then pull the lighter socket straight out.
  5. Remove the tool from the lighter socket.

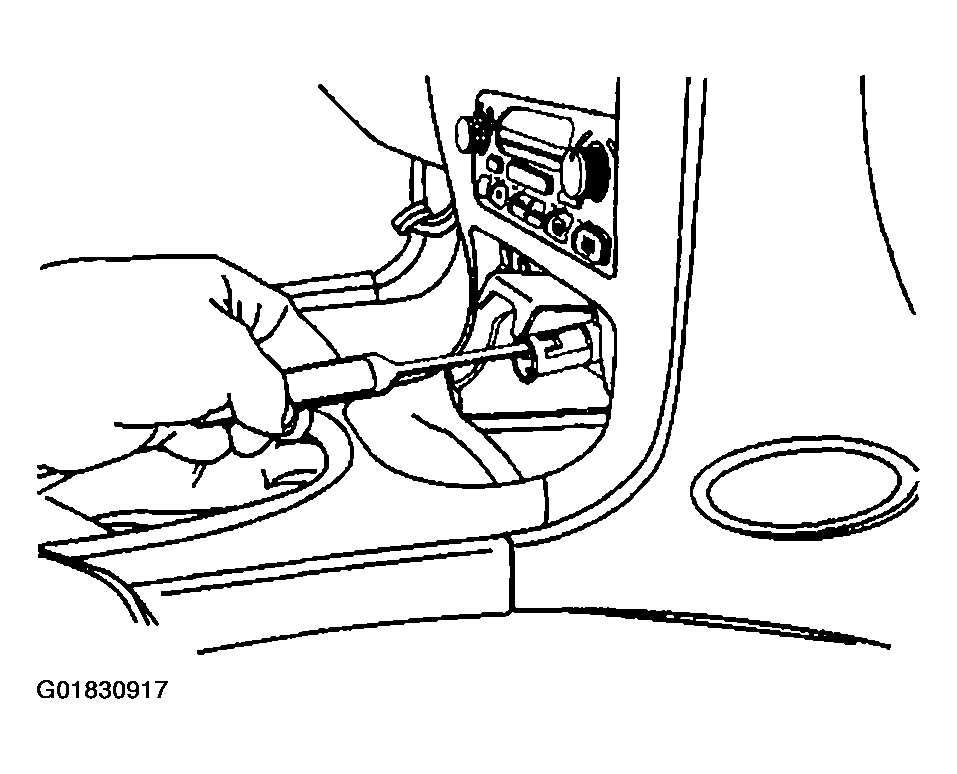

    Fig 2: Removing Cigarette Lighter Socket Using J 42059
    G01830917Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector from the cigarette lighter socket.

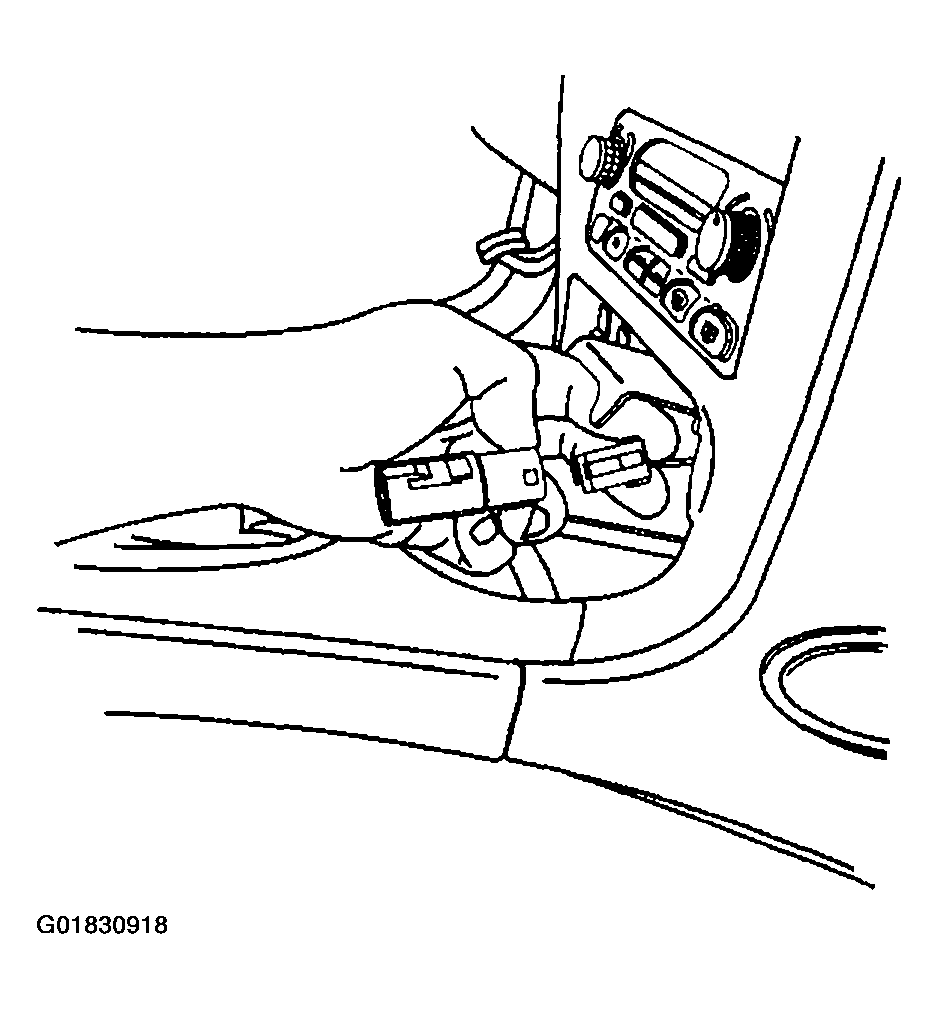

    Fig 3: Disconnecting Electrical Connector From Cigarette Lighter Socket
    G01830918Courtesy of GENERAL MOTORS CORP.
  7. Remove the cigarette lighter retainer using your index finger and pulling out.

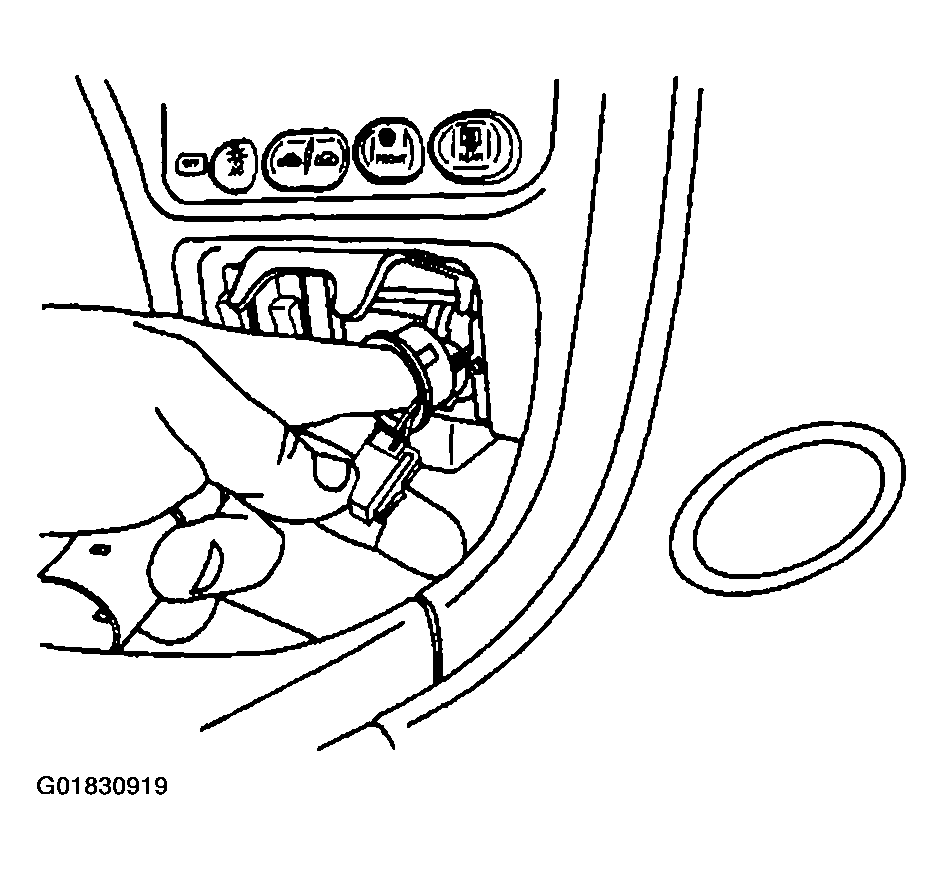

    Fig 4: Removing Cigarette Lighter Retainer
    G01830919Courtesy of GENERAL MOTORS CORP.
