Installation Procedure

  1. Position the cigarette lighter retainer with the key to the slot into the cigarette lighter hole.

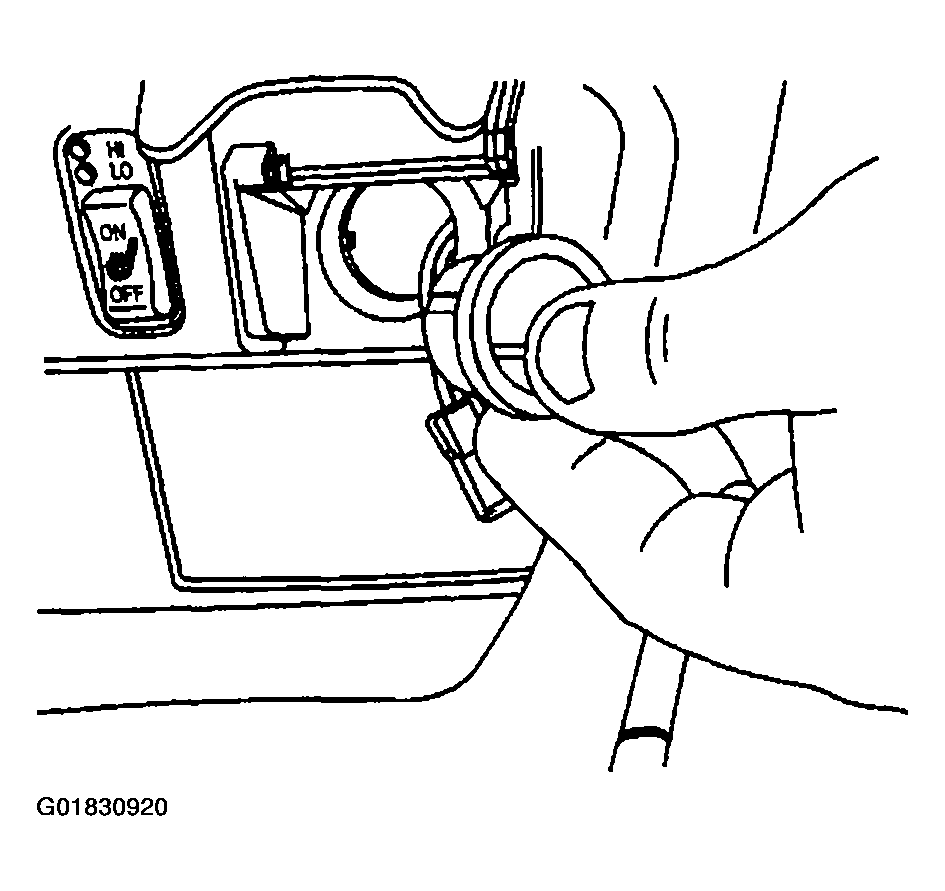

    Fig 1: Positioning Cigarette Lighter Retainer Into Cigarette Lighter Hole
    G01830920Courtesy of GENERAL MOTORS CORP.
  2. Install the cigarette lighter retainer pressing into place until fully seated.

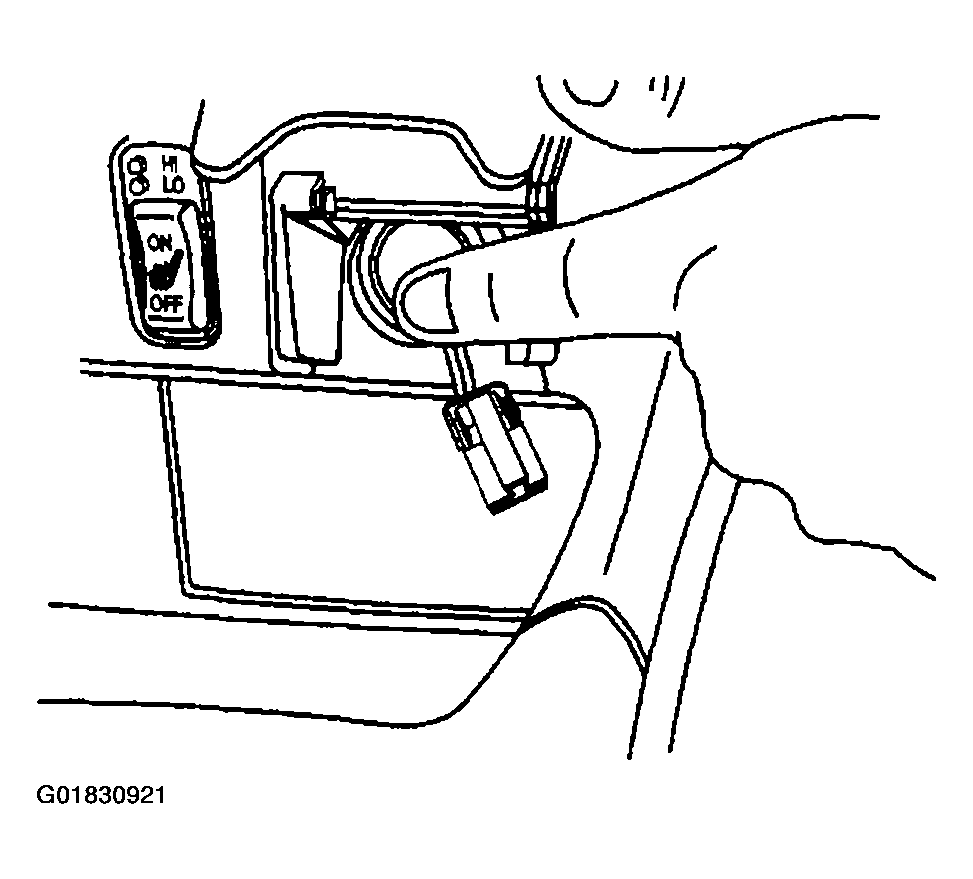

    Fig 2: Installing Cigarette Lighter Retainer
    G01830921Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to cigarette lighter socket.

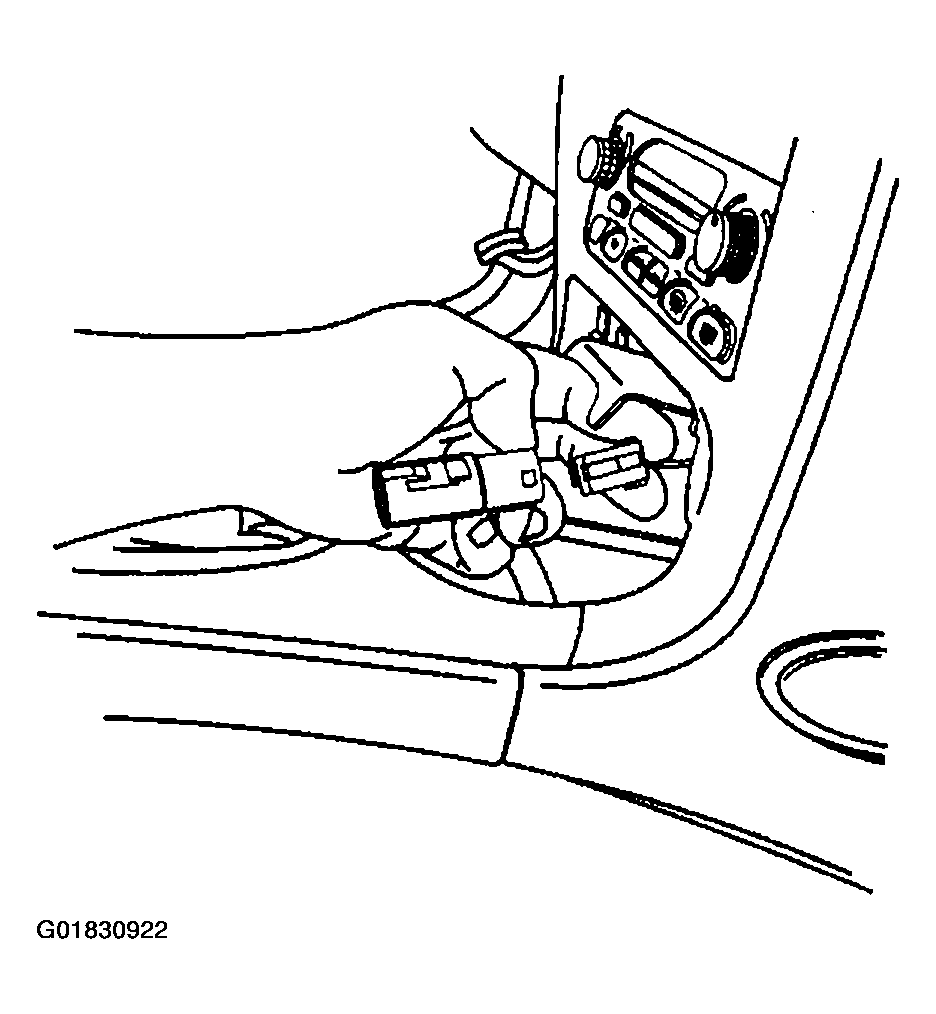

    Fig 3: Connecting Electrical Connector To Cigarette Lighter Socket
    G01830922Courtesy of GENERAL MOTORS CORP.
  4. Align the cigarette lighter socket to the cigarette lighter retainer and press into place until fully seated.
  5. Reposition the shift lever to the park position.
  6. Install the cigarette lighter fuse.
  7. Install the cigarette lighter element.
  8. Inspect the instrument panel lighter for proper operation.

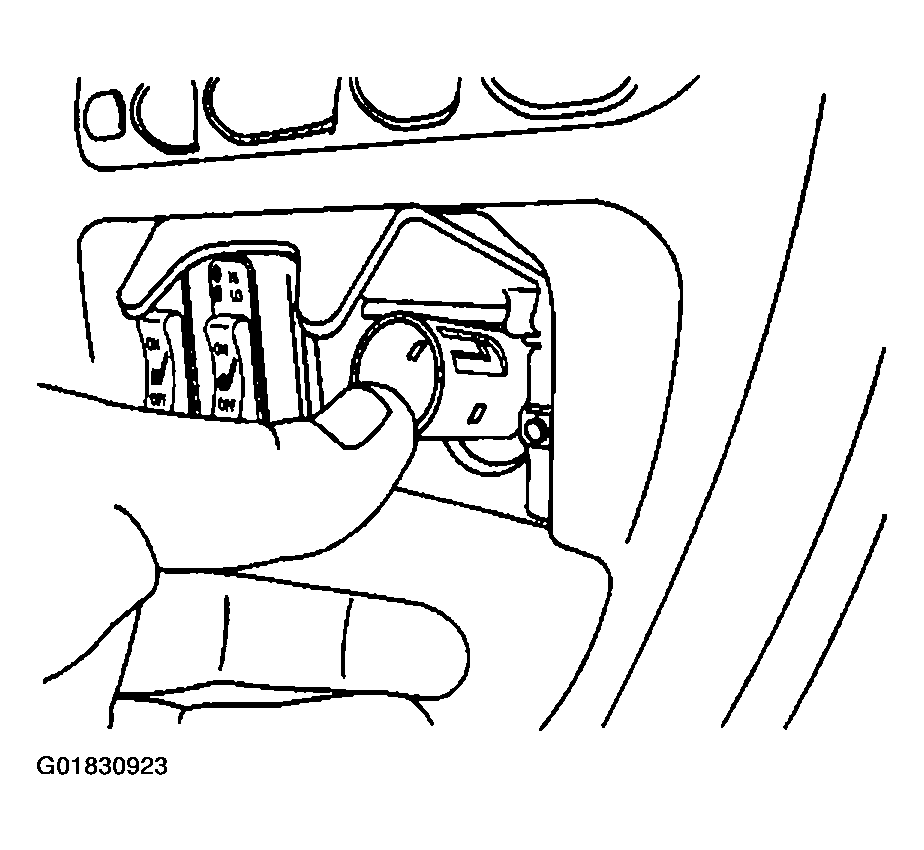

    Fig 4: Installing Cigarette Lighter Fuse & Element
    G01830923Courtesy of GENERAL MOTORS CORP.
