Tachometer Inaccurate or Inoperative

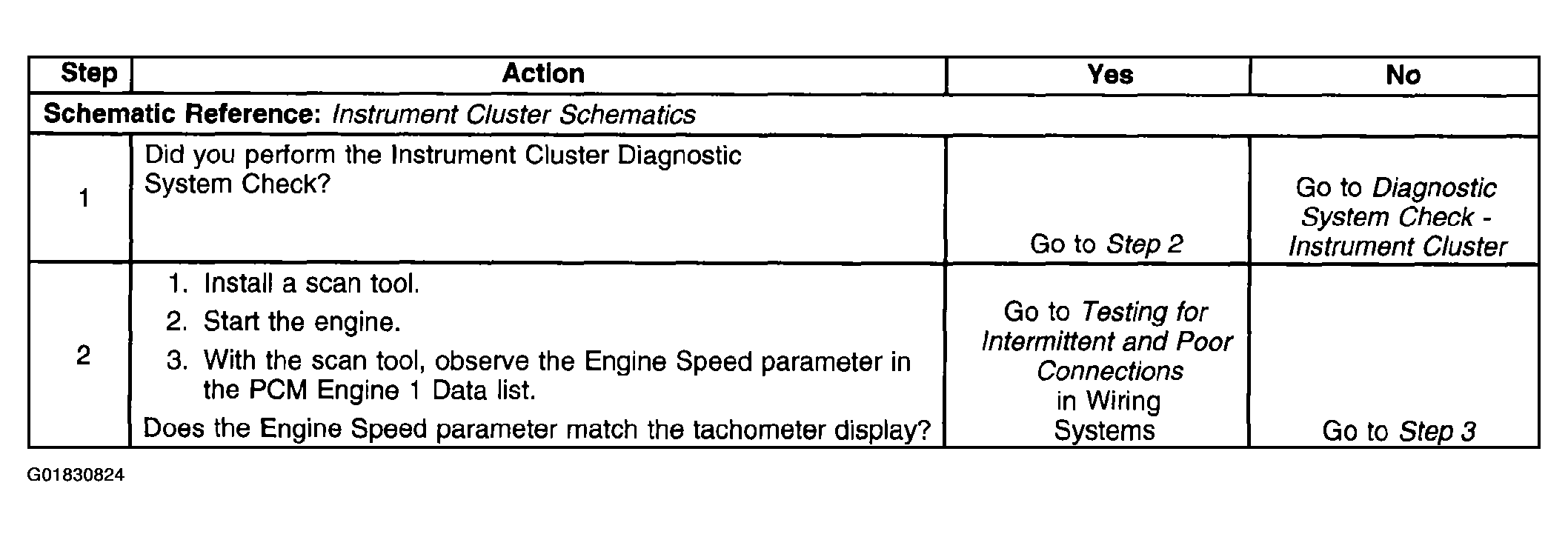

Fig 1: Tachometer Inaccurate Or Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

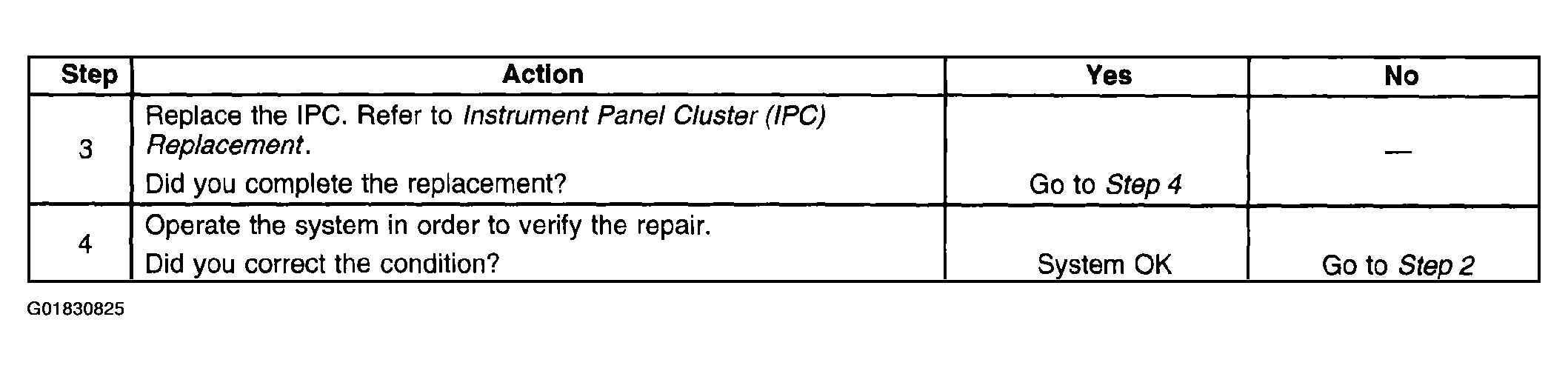

Fig 2: Tachometer Inaccurate Or Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
