Scan Tool Output Controls

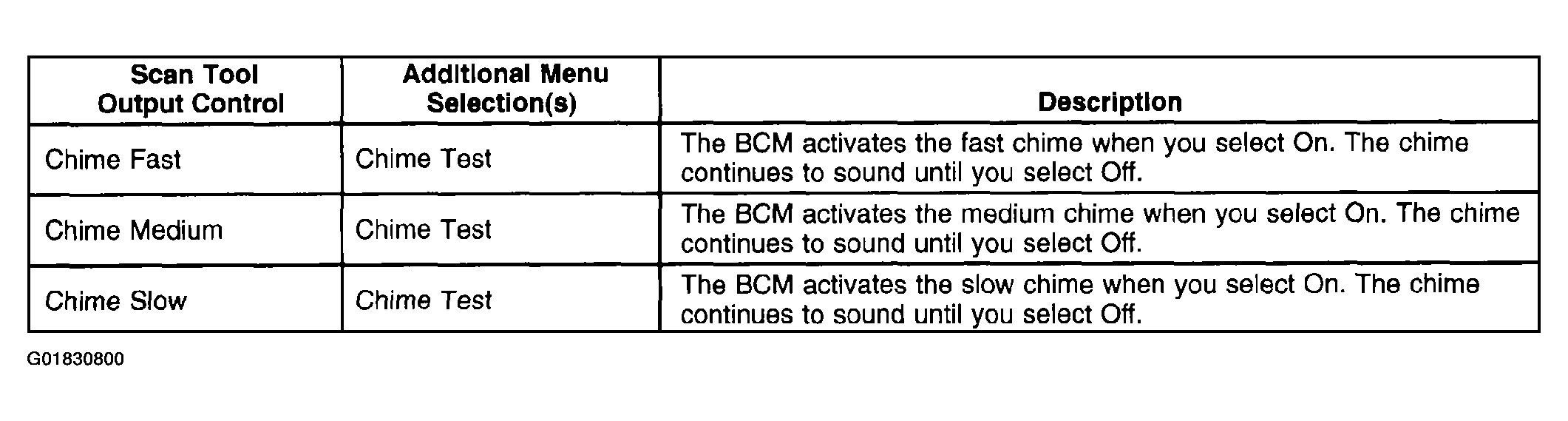

Fig 1: BCM Scan Tool Output Controls
G01830800Courtesy of GENERAL MOTORS CORP.

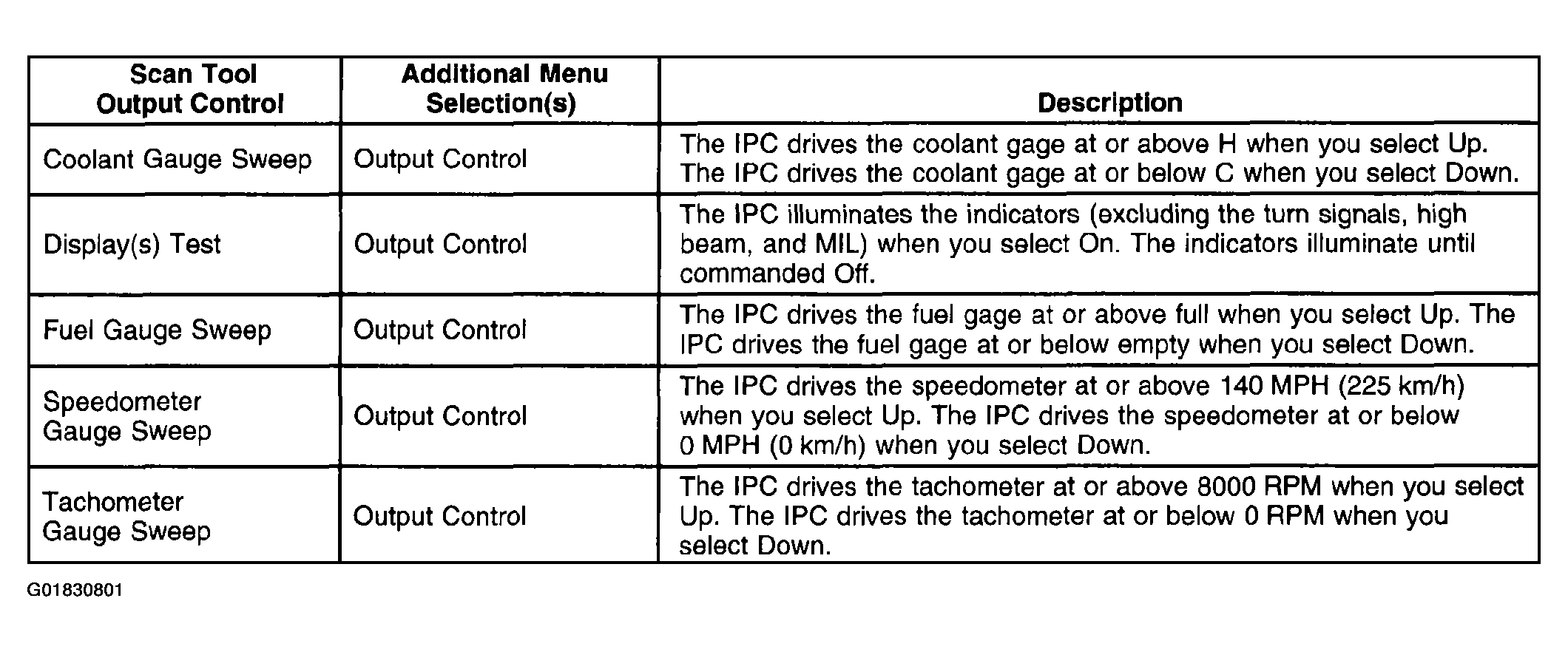

Fig 2: IPC Scan Tool Output Controls
G01830801Courtesy of GENERAL MOTORS CORP.
Fig 3: PCM Scan Tool Output Controls
G01830802Courtesy of GENERAL MOTORS CORP.
